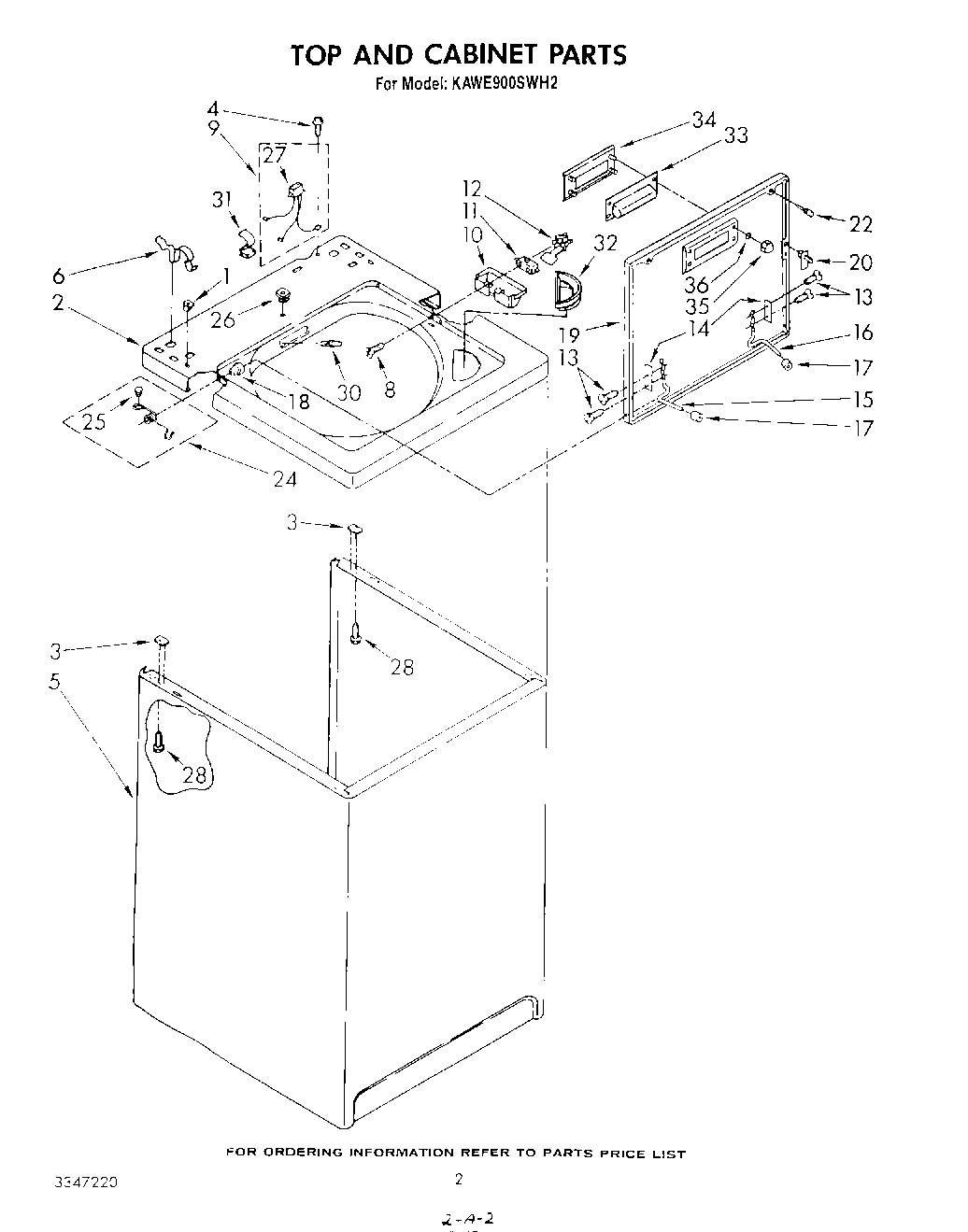

KAWE900SWH2 02 – TOP AND CABINET , LIT/OPTIONAL

KAWE900SWH2 02 – TOP AND CABINET , LIT/OPTIONAL

Written by

in

KAWE900SWH2 02 – TOP AND CABINET , LIT/OPTIONAL

Products

PositionProduct
WPL LIT3347220
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP285195 Whirlpool Sealer Assembly
WPL LIT3347352
WPL LIT3347346
WPL LIT3347230
WPL LIT3347362
WPL LIT3347621
Golden Harvest (Uncut)
Golden Harvest
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Almond (Uncut)
350938 Whirlpool Spray Gun
Leveler (Thinner)
WP72107 Whirlpool Touchup
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
350572 Whirlpool Oil Transmission 15 Oz
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1Nut, Push-In (2)
2Top (White)
2Top (Toast)
2Top (Golden Harvest)
2Top (Platinum)
2Top (Almond)
3WP62750 Whirlpool Spacer
5Cabinet (Almond)
5Cabinet (Golden Harvest)
5Cabinet (Platinum)
5Cabinet (Toast)
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (White)
19Lid (Platinum)
19Lid (Toast)
19Lid (Harvest Wheat)
19Lid (Almond)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
24Spring & Button, Lid ((R.H.))
24Spring & Button, Lid ((L.H.))
25Plug, Button
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
32WP3362952 Whirlpool Bezel
33Handle, Lid (Platinum)
33Handle, Lid (White)
33Handle, Lid (Almond)
33Handle, Lid (Toast)
33Lid Handle (Harvest Wheat)
34Insert, Handle
35WP488130 Whirlpool Air Conditioner Nut
36“O“ Ring (4)
