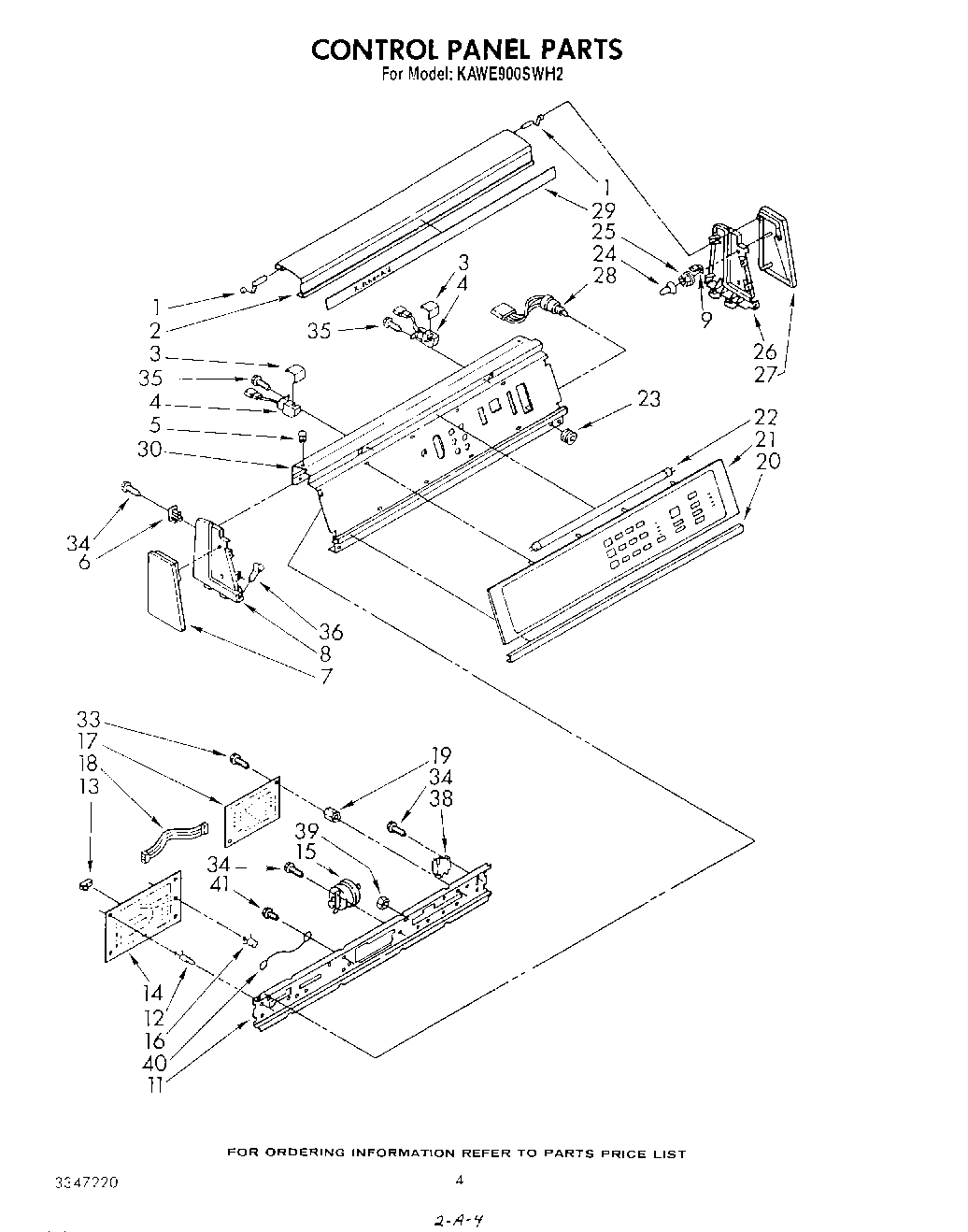

KAWE900SWH2 03 – CONTROL PANEL

Products

Position	Product
1	Hinge, Lamp Cover
2	Pad, Console
3	Cover, Socket
4	Socket, Lamp ((L.H.))
4	Socket, Lamp ((R.H.))
5	Plug, Latch (3)
6	WP689559 Whirlpool Nut
7	Trim, End Cap (L.H.)
8	End Cap (L.H.)
9	Bracket, End Cap (2)
11	Bracket, Control
12	WPL 313087
13	Connector, Two Terminal
14	Microcomputer
15	Switch, Water Level
16	Support, Circuit Board
17	Power Supply
18	Jumper, Board To Board
19	Stand Off (3)
20	Trim, Console
21	Touch Module
22	Lamp, Fluorescent
23	Nut, Knurled
24	Cap, Insulator
25	Nut, No.10 Thread
26	Cap, End (R.H.)
27	Trim, End Cap (R.H.)
28	Switch, Fluorescent
29	Insert, Console Pad
30	Panel, Control
33	Screw,
34	WP90767 Whirlpool Screw
35	WP965173 Whirlpool Dishwasher Screw
36	WPL 64211
38	Ballast
39	Nut, Lock
40	Wire, Ground
41	WP3351614 Whirlpool Screw
