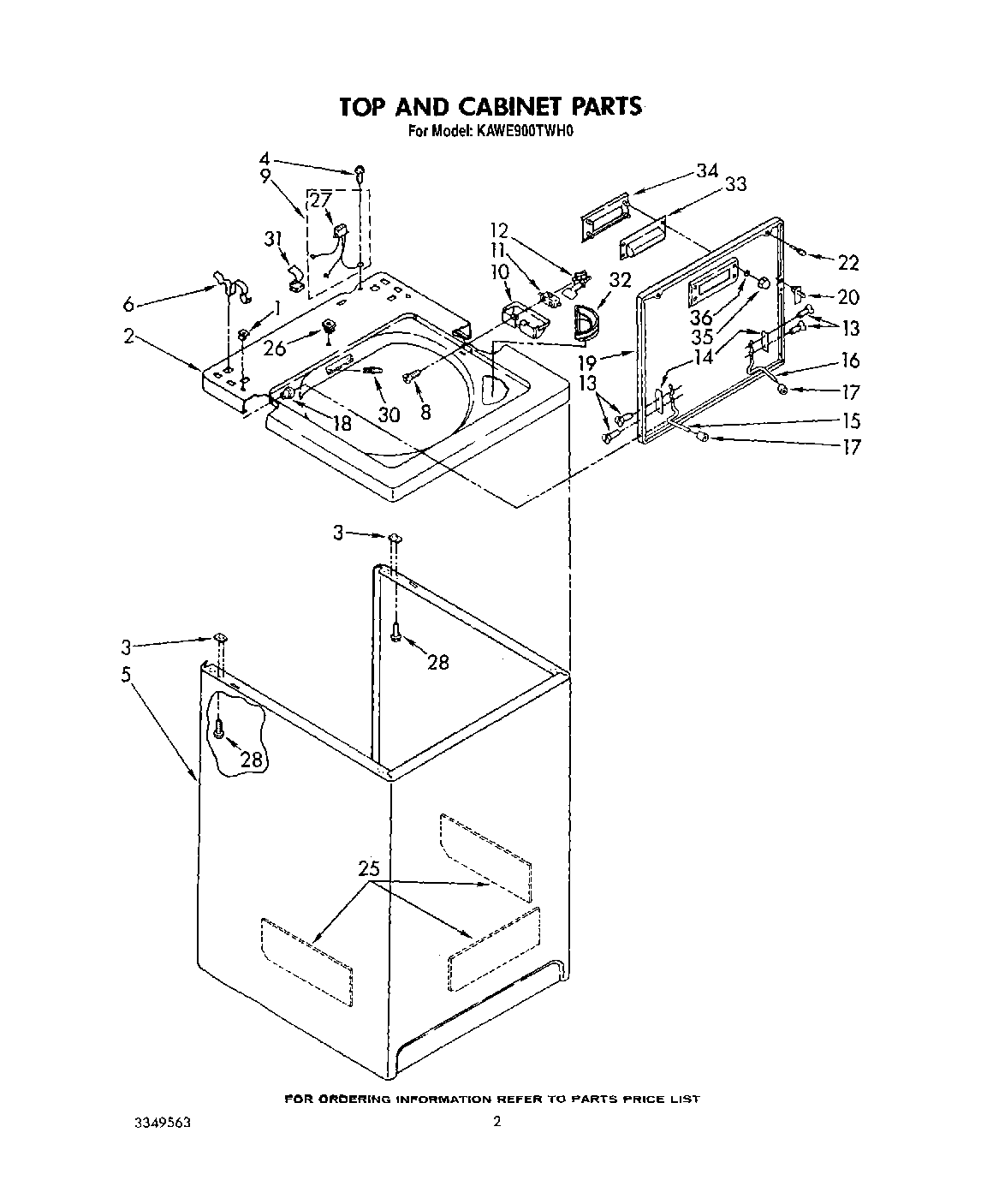

KAWE900TWH0 02 – TOP AND CABINET, LIT/OPTIONAL

KAWE900TWH0 02 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

KAWE900TWH0 02 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Shipping Kit
WPL 72112
WPL 89121
WPL LIT3347621
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP285195 Whirlpool Sealer Assembly
WPL LIT3347355
WPL LIT3350592
WPL LIT3347346
Golden Harvest (Uncut)
WPL LIT3347228
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
WPL 261880
Leveler (Thinner)
Drain Protector (Not Included)
72113 Whirlpool Touch-Up Paint
Almond (Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL LIT3349563
285320 Whirlpool Washer Siphon Break Kit
350572 Whirlpool Oil Transmission 15 Oz
1Nut, Push-In (2)
2Top (Platinum)
2Top (Toast)
2Top (Almond)
2Top (White)
2Top (Golden Harvest)
3WP62750 Whirlpool Spacer
5Cabinet (Platinum)
5Cabinet (Almond)
5Cabinet (Toast)
5Cabinet (Golden Harvest)
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
8Screw & Washer, Lid Switch (2)
9Harness, Lid Switch
10WP359231 Whirlpool Shield
11W10820036 Whirlpool Door Switch Kit
12Actuator, Lid Switch
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Harvest Wheat)
19Lid (Platinum)
19Lid (Toast)
19Lid (White)
19Lid (Almond)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
25Cabinet-Sound Damper
26Stop, Push-In Top
27Plug, Terminal (3-Way)
28SCREW
30Rivet, Serial Nameplate
31WP90016 Whirlpool Clip
32WP3362952 Whirlpool Bezel
33Handle, Lid (White)
33Handle, Lid (Almond)
33Lid Handle (Harvest Wheat)
33Handle, Lid (Toast)
33Handle, Lid (Platinum)
34Insert, Handle
35WP488130 Whirlpool Air Conditioner Nut
36“O“ Ring (4)
