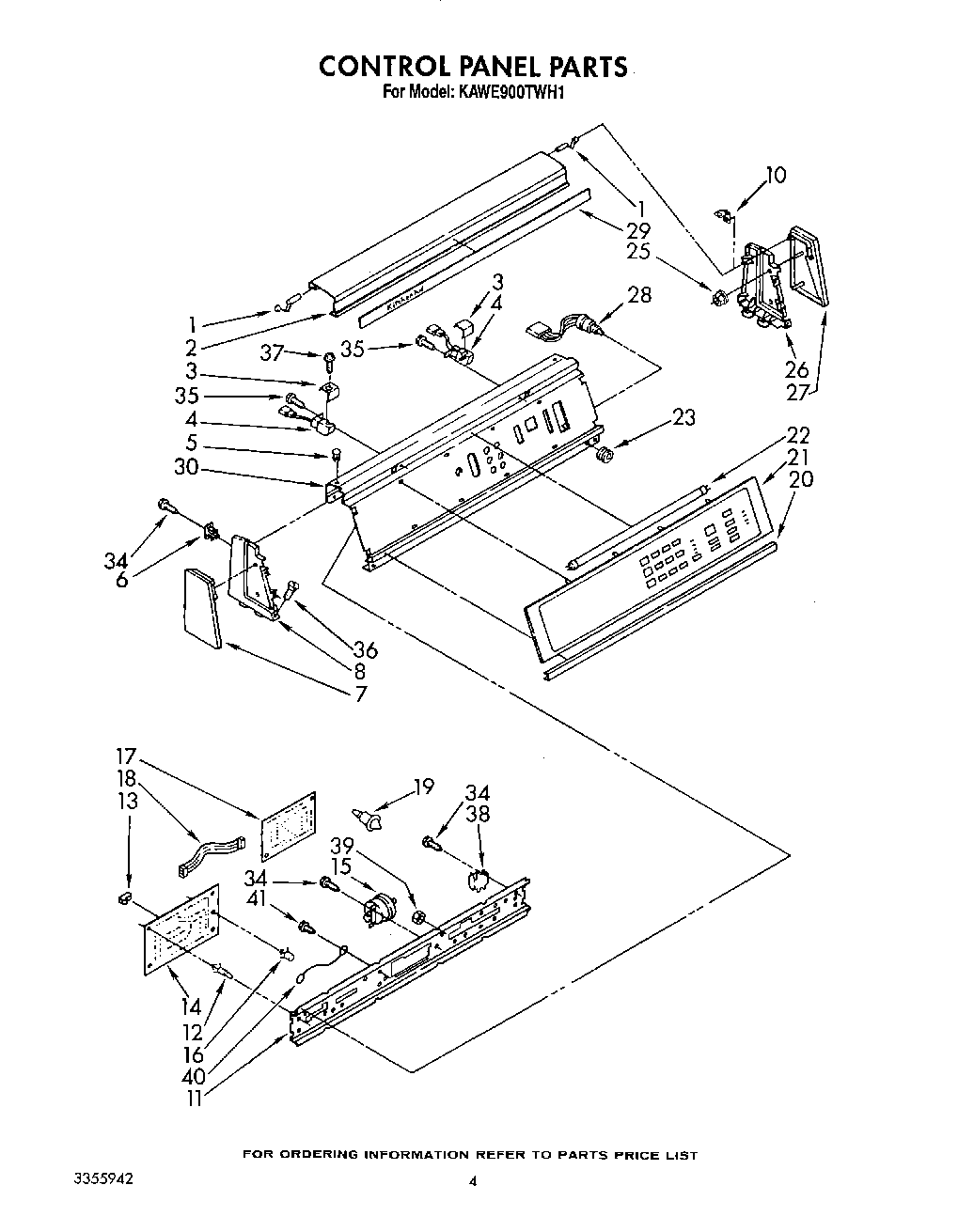

KAWE900TWH1 03 – CONTROL PANEL

Products

Position	Product
1	Hinge, Lamp Cover
2	Pad, Console
3	Cover, Socket
4	Socket, Lamp ((L.H.))
4	Socket, Lamp ((R.H.))
5	Plug, Latch (3)
6	WP689559 Whirlpool Nut
7	Trim, End Cap (L.H.)
8	Cap, End (L.H.)
10	Bracket, End Cap (2)
11	Bracket, Control
12	WPL 313087
13	Connector, Two Terminal
14	Microcomputer
15	Switch, Water Level
16	Support, Circuit Board
17	Relay, Power Control Board
18	Jumper, Board To Board
19	Support, Power Control
20	Trim, Console
21	Touch Module
22	Lamp, Fluorescent
23	Nut, Knurled
25	Nut, No.10 Thread
26	Cap, End (R.H.)
27	Trim, End Cap (R.H.)
28	Switch, Fluorescent
29	Insert, Console Pad
30	Panel, Control
34	WP90767 Whirlpool Screw
35	WP355214 Whirlpool Screw
36	WPL 64211
37	WP489128 Whirlpool Refrigerator Screw
38	Ballast
39	Nut, Lock
40	Wire, Ground
41	WP3351614 Whirlpool Screw
