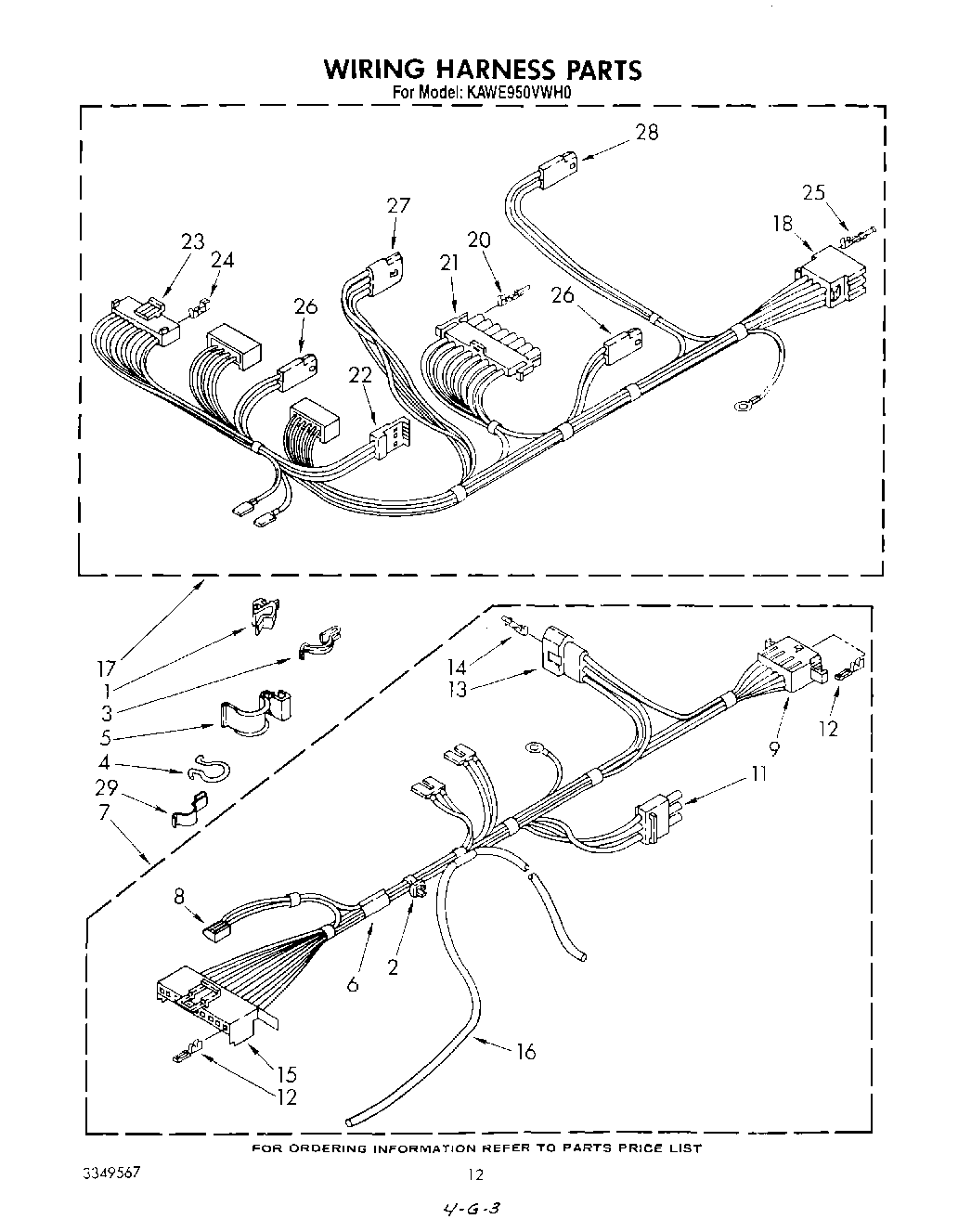

KAWE950VAL0 08 – WIRING HARNESS

Products

PositionProduct
1Clip, Harness
2Clip, Harness
4Clip, Harness (3)
5WP90016 Whirlpool Clip
6Protector, Harness
7Wiring Harness & Pressure Switch Hose (Base)
8Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
9Plug, Terminal (15 Way)
11WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12WP94614 Whirlpool Terminal
13353424 Whirlpool Connector
15WP62505 Whirlpool Connector
16WP353244 Whirlpool Hose
17Harness, Wiring (Console)
18Cap, Terminal (15 Way)
20Terminal
21Connector, 8 Terminal (Uses Terminal 388499)
22Motor, Rapid Advance Timer
23Cap, 10 Pin (Uses Terminal 772581)
24Terminal
25WP596797 Whirlpool Terminal
26Receptacle Terminal (2-Way) Red
27WPL 717315
28Receptacle, 2-Way
298528351 Whirlpool Clip
