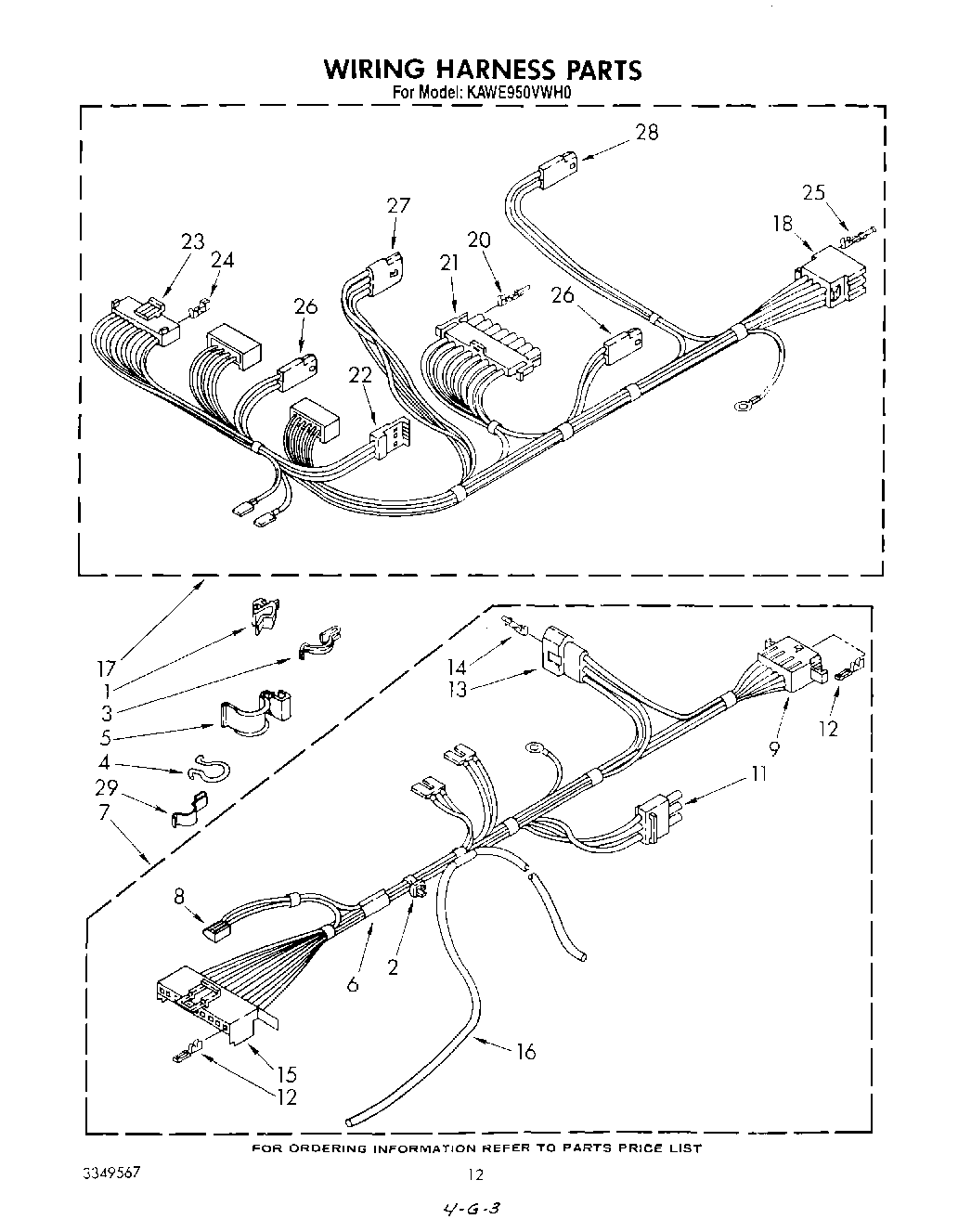

KAWE950VWH0 08 – WIRING HARNESS

Products

Position	Product
1	Clip, Harness
2	Clip, Harness
4	Clip, Harness (3)
5	WP90016 Whirlpool Clip
6	Protector, Harness
7	Wiring Harness & Pressure Switch Hose (Base)
8	Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
9	Plug, Terminal (15 Way)
11	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12	WP94614 Whirlpool Terminal
13	353424 Whirlpool Connector
15	WP62505 Whirlpool Connector
16	WP353244 Whirlpool Hose
17	Harness, Wiring (Console)
18	Cap, Terminal (15 Way)
20	Terminal
21	Connector, 8 Terminal (Uses Terminal 388499)
22	Motor, Rapid Advance Timer
23	Cap, 10 Pin (Uses Terminal 772581)
24	Terminal
25	WP596797 Whirlpool Terminal
26	Receptacle Terminal (2-Way) Red
27	WPL 717315
28	Receptacle, 2-Way
29	8528351 Whirlpool Clip
