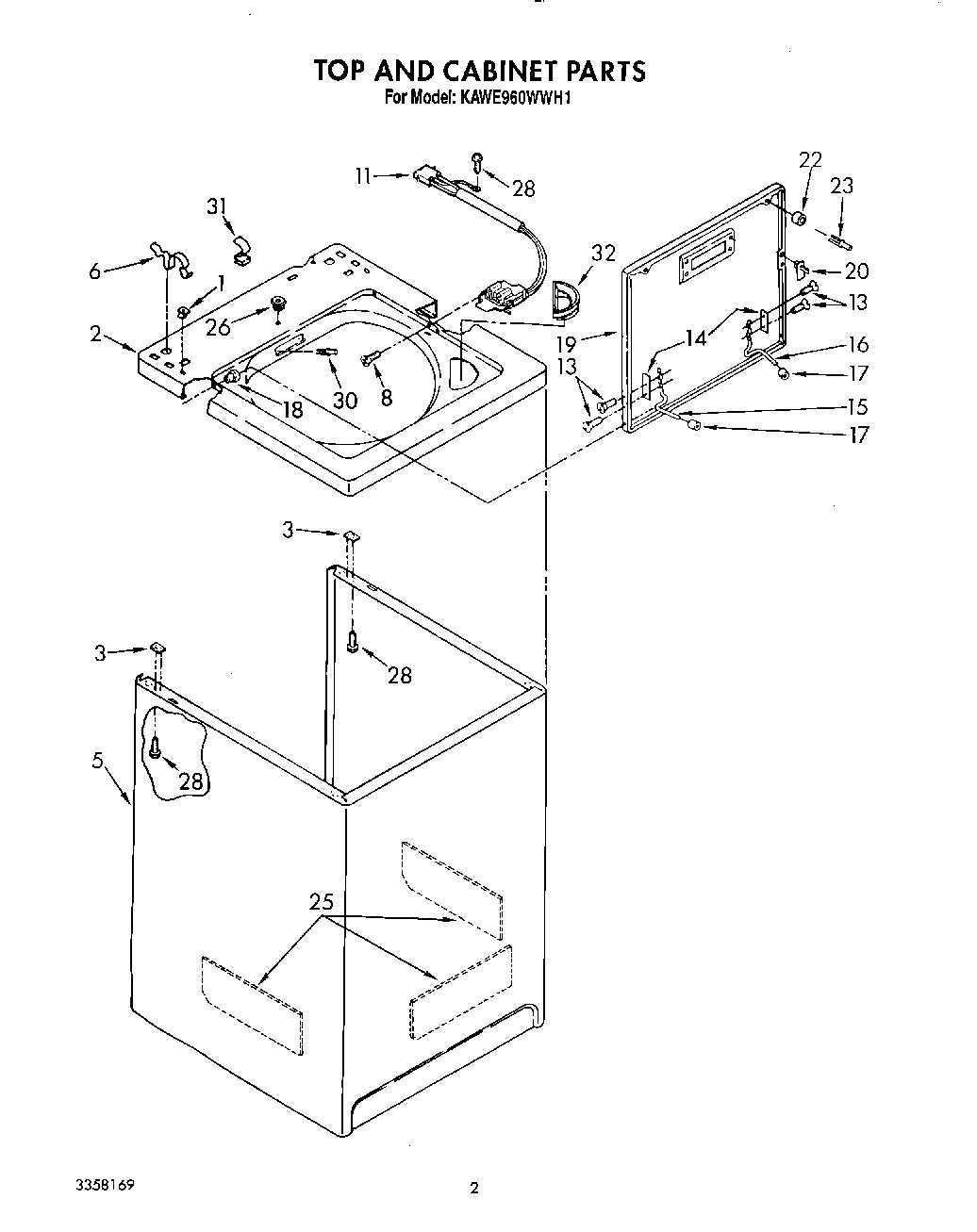

KAWE960WAL1 02 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use and Care
	Shipping Kit
	WPL 89121
	WP384496 Whirlpool Hose Coupling
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	Tech Sheet
	WP285195 Whirlpool Sealer Assembly
	WPL LIT3356583
	Label, Energy Guide
	350572 Whirlpool Oil Transmission 15 Oz
	Drain Protector (Not Included)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Leveler (Thinner)
	Almond (Uncut)
	List, Repair Parts
	285320 Whirlpool Washer Siphon Break Kit
	WP72107 Whirlpool Touchup
1	Nut, Push-In (2)
2	Top (Almond)
2	Top (White)
3	WP62750 Whirlpool Spacer
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Almond)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (White)
19	Lid (Almond)
20	WP358684 Whirlpool Strike Assembly
22	BUMPER
23	WP356907 Whirlpool Rivet
25	Cabinet-Sound Damper
26	Stop, Push-In Top
28	SCREW
30	Rivet, Serial Nameplate
31	WP90016 Whirlpool Clip
32	WP3362952 Whirlpool Bezel
