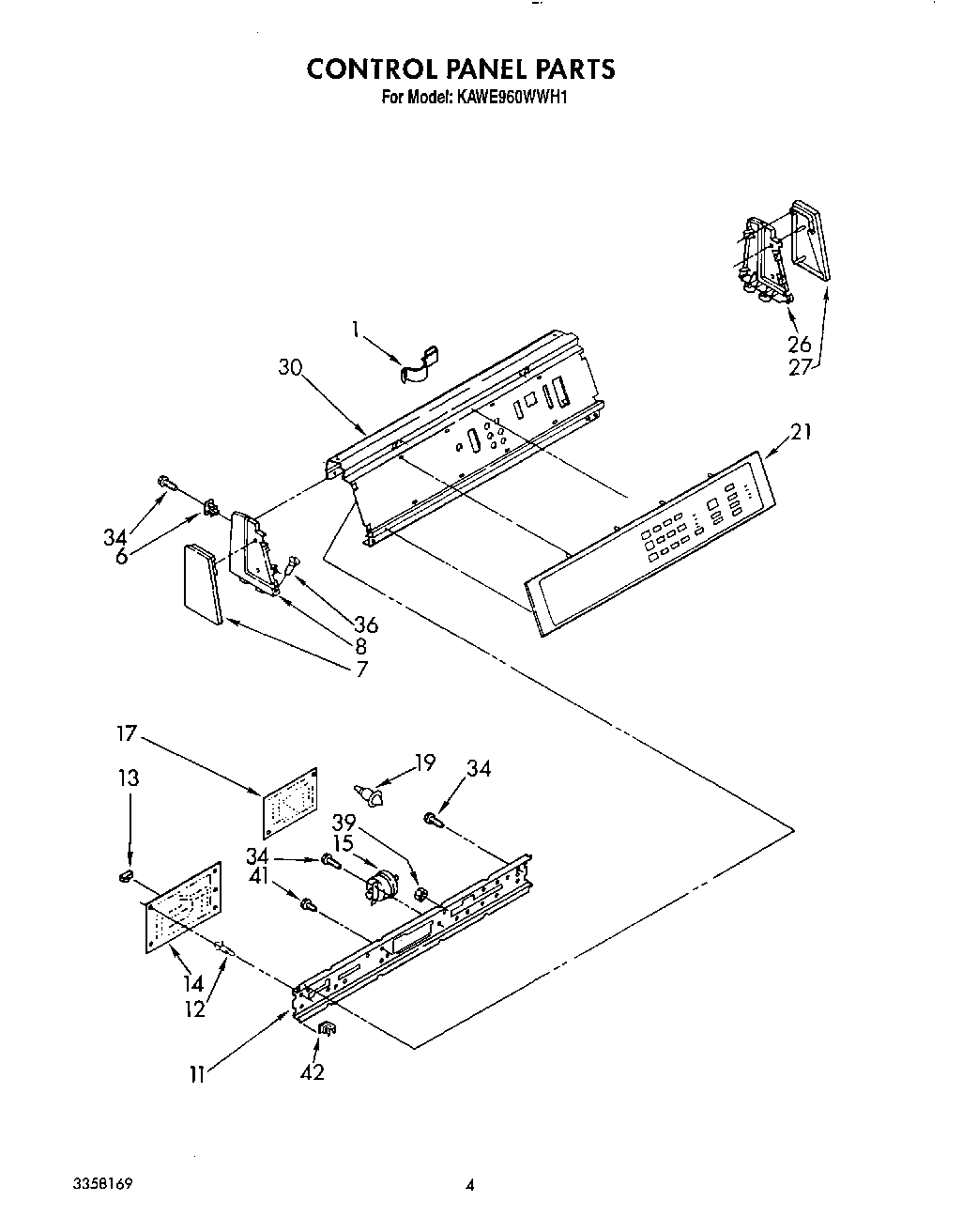

KAWE960WAL1 03 – CONTROL PANELadmin2025-04-26T13:05:43+00:00KAWE960WAL1 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | 8528351 Whirlpool Clip |
| 6 | WP689559 Whirlpool Nut |
| 7 | Trim, End Cap (L.H.) |
| 8 | Cap, End (L.H.) |
| 11 | Bracket, Control |
| 12 | WPL 313087 |
| 13 | Connector, Two Terminal |
| 14 | Board, Control |
| 15 | Switch, Water Level |
| 17 | Relay, Power Control Board |
| 19 | Support, Power Control |
| 21 | Touch Module |
| 26 | Cap, End (R.H.) |
| 27 | Trim, End Cap (R.H.) |
| 30 | Panel, Control Board and Standoff Mounting (8) |
| 34 | WP90767 Whirlpool Screw |
| 36 | WPL 64211 |
| 39 | Nut, Lock |
| 41 | WP3351614 Whirlpool Screw |
| 42 | W10113937 Whirlpool Clamp |
