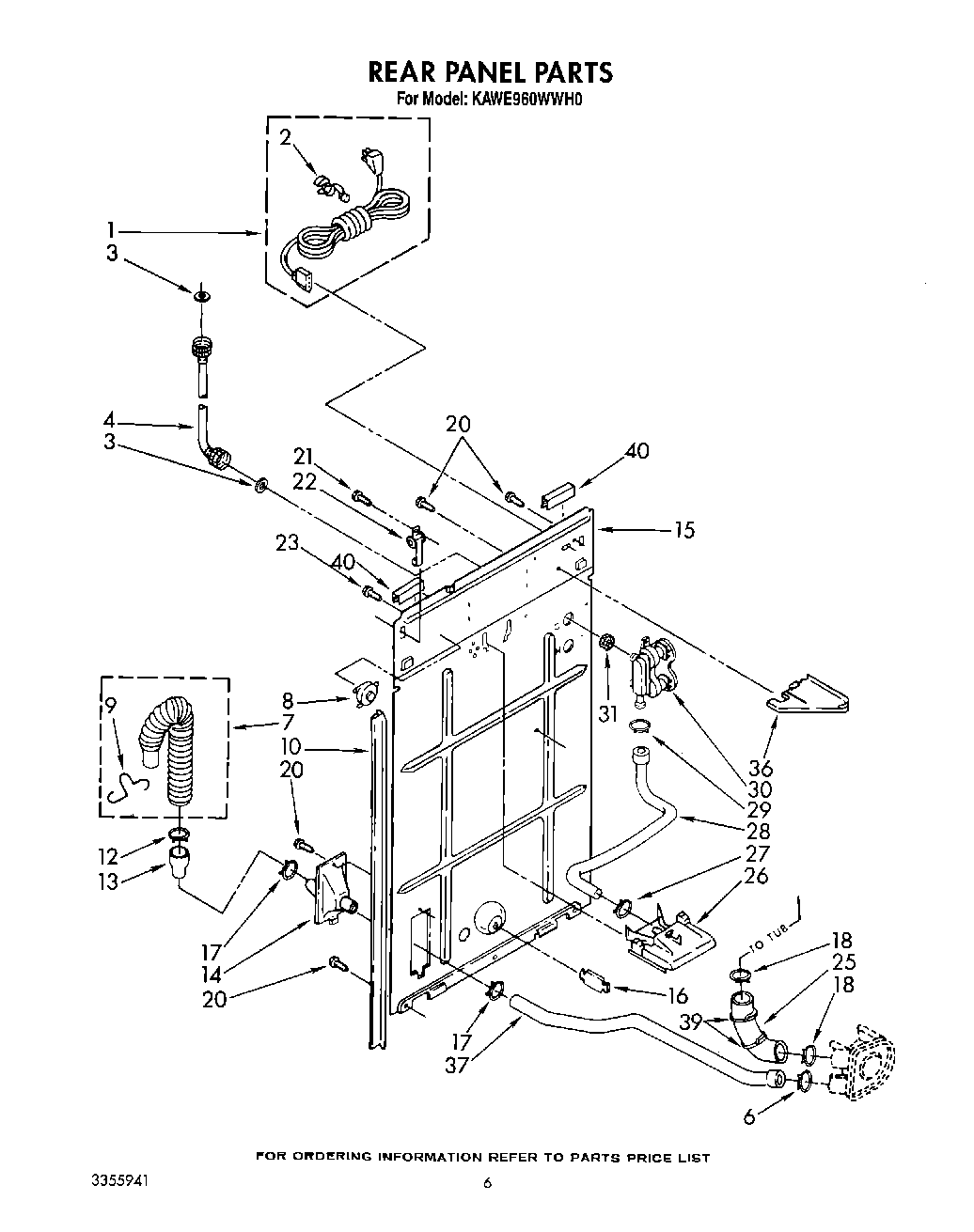

KAWE960WWH0 04 – REAR PANEL

Products

Position	Product
1	Cord, Power
2	Strain Relief, Power Cord
3	WP16123 Whirlpool Washer
4	WP89503 Whirlpool Washer Fill Hose
7	285666 Whirlpool Drain Hose 10'
7	285664 Whirlpool Drain Hose
8	Speaker
9	WPL 3350222
10	WP62747 Whirlpool Pad
12	WP616099 Whirlpool Clamp
13	WP384496 Whirlpool Hose Coupling
14	WPW10358149 Whirlpool Hose
15	Panel, Rear
16	WP8519200 Whirlpool Support Assembly
17	WP356138 Whirlpool Hose Clamp
20	WP3390631 Whirlpool Screw
21	WP308685 Whirlpool Microwave Screw
22	Hinge, Console (2)
23	SCREW
25	285871 Whirlpool Hose and Clamp
26	WP3360977 Whirlpool Washer Tub Fill Nozzle
27	WP596669 Whirlpool Hose Clamp
28	HOSE
30	285805 Whirlpool Washer Water Inlet Valve
31	WP96160 Whirlpool Washer Inlet Valve Screen
36	WPL 3348424
37	Hose, Pump To Drain Connector
39	WP371502 Whirlpool Clamp
40	Edge Protector
