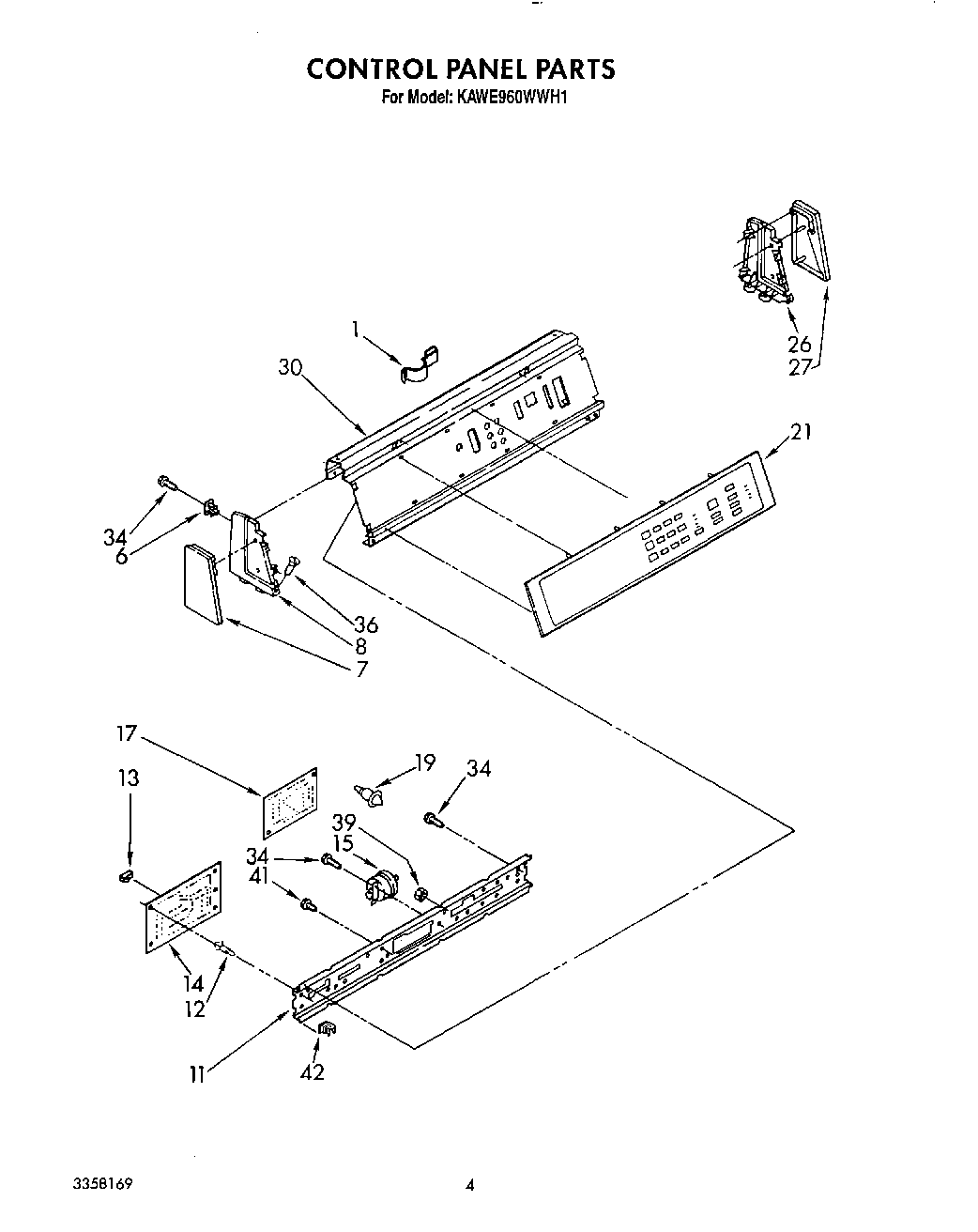

KAWE960WWH1 03 – CONTROL PANEL

Products

Position	Product
1	8528351 Whirlpool Clip
6	WP689559 Whirlpool Nut
7	Trim, End Cap (L.H.)
8	Cap, End (L.H.)
11	Bracket, Control
12	WPL 313087
13	Connector, Two Terminal
14	Board, Control
15	Switch, Water Level
17	Relay, Power Control Board
19	Support, Power Control
21	Touch Module
26	Cap, End (R.H.)
27	Trim, End Cap (R.H.)
30	Panel, Control Board and Standoff Mounting (8)
34	WP90767 Whirlpool Screw
36	WPL 64211
39	Nut, Lock
41	WP3351614 Whirlpool Screw
42	W10113937 Whirlpool Clamp
