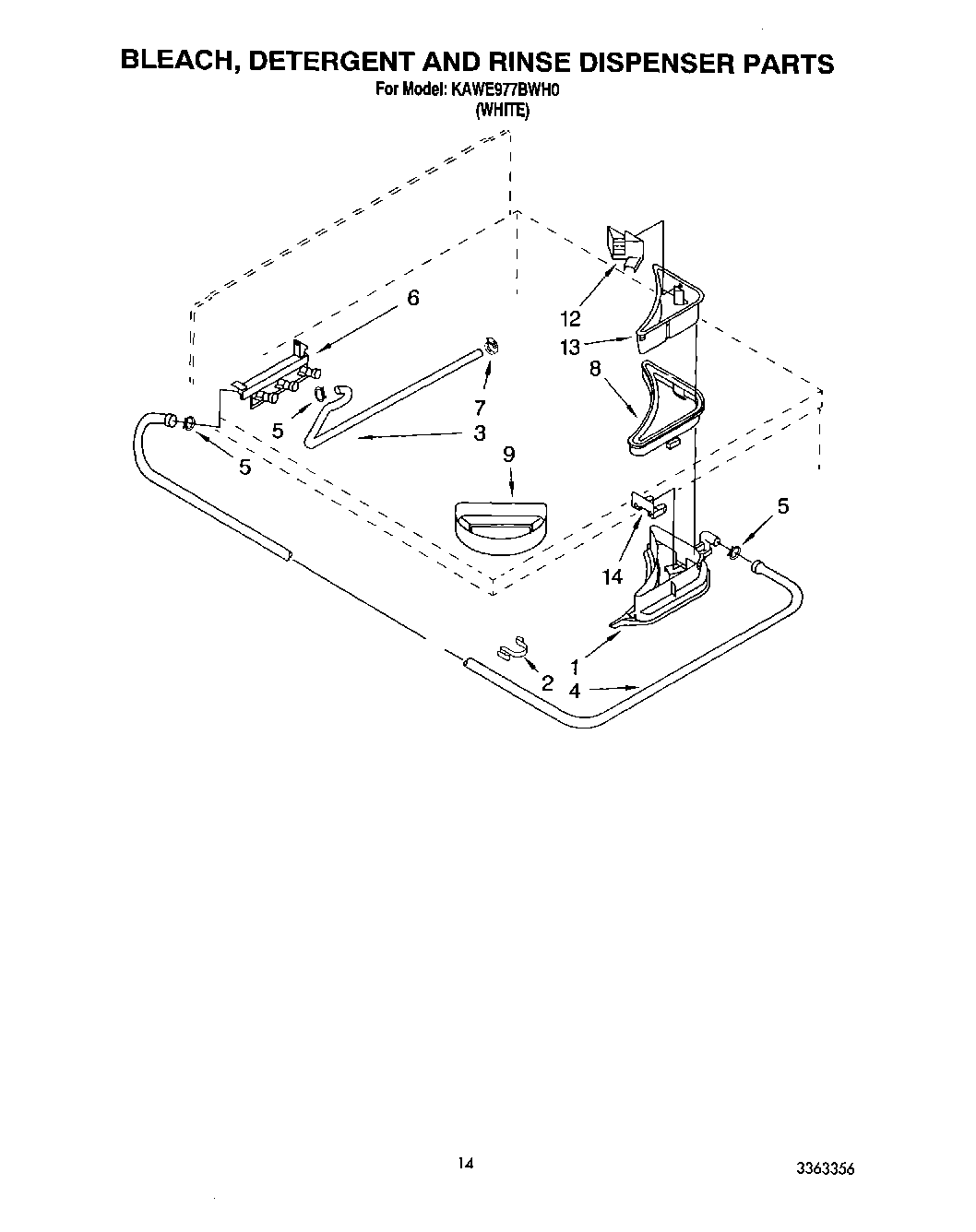

KAWE977BWH0 11 – BLEACH, DETERGENT AND RINSE DISPENSER

KAWE977BWH0 11 – BLEACH, DETERGENT AND RINSE DISPENSER

Written by

in

KAWE977BWH0 11 – BLEACH, DETERGENT AND RINSE DISPENSER

Products

PositionProduct
1Reservoir, and Chute, Detergent
2Clip, Hose
3Hose-Det. Disp.
4Hose, Detergent
5WP596669 Whirlpool Hose Clamp
6Connector, 3 Port
8WP3362952 Whirlpool Bezel
9Bezel, Dispenser (For White And Almond Models)
12Insert, Liquid Detergent
13Reservoir, Liquid Detergent
14Diverter, Liquid Detergent
