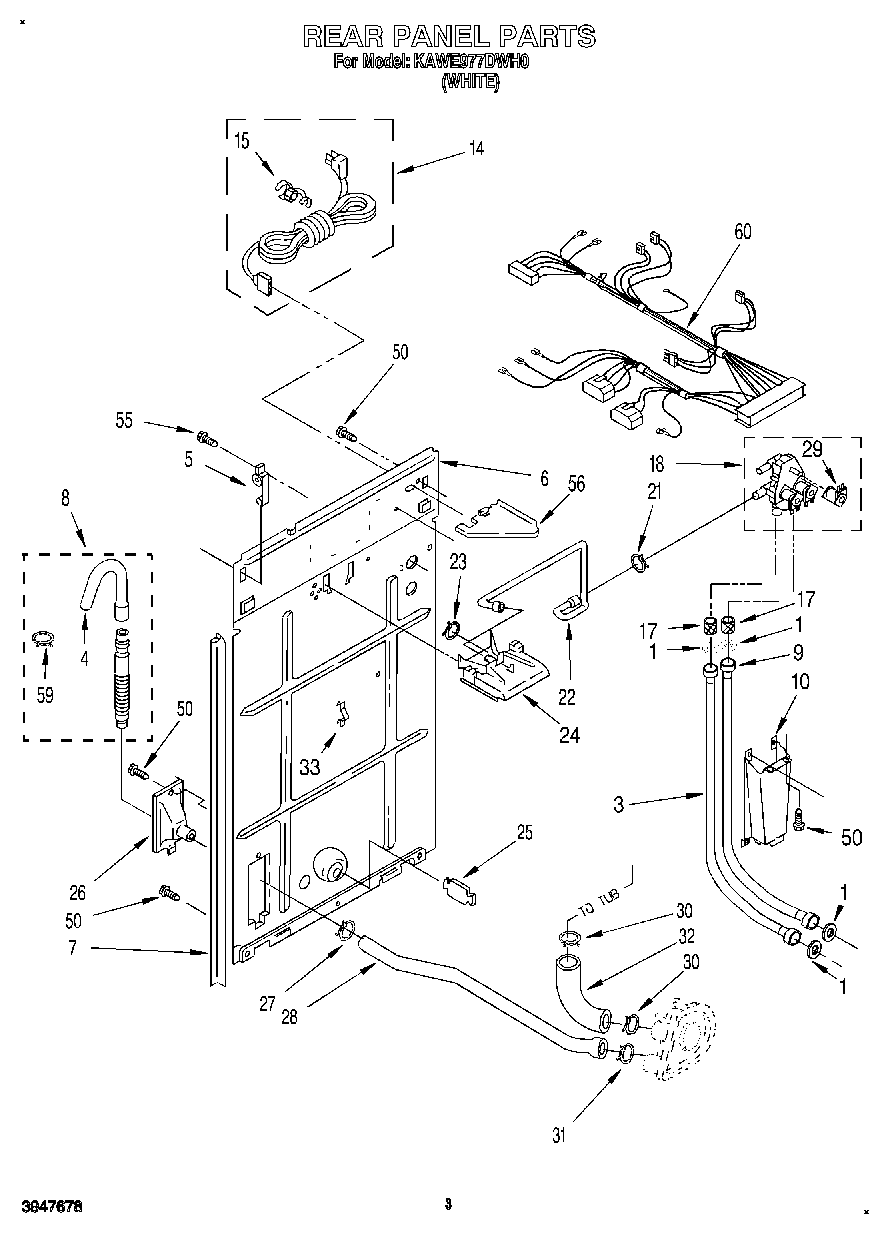

KAWE977DWH0 02 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6Panel, Rear
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
9WP76314 Whirlpool Fill Hose
10Bracket-Inlet Hose
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
17WP96160 Whirlpool Washer Inlet Valve Screen
18Valve, Water Mixing
21WP596669 Whirlpool Hose Clamp
22Hose, Vacuum Break
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Hose, Pump To Drain
29Coil, Dispenser & Mixing Valve
30WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
33Retainer, Hose
50WP3390631 Whirlpool Screw
55WP308685 Whirlpool Microwave Screw
56WPL 3348424
59WP3357331 Whirlpool Clamp
60Harness, Wiring (For Detail See Wiring Harness Parts Page) Also See Clips.
