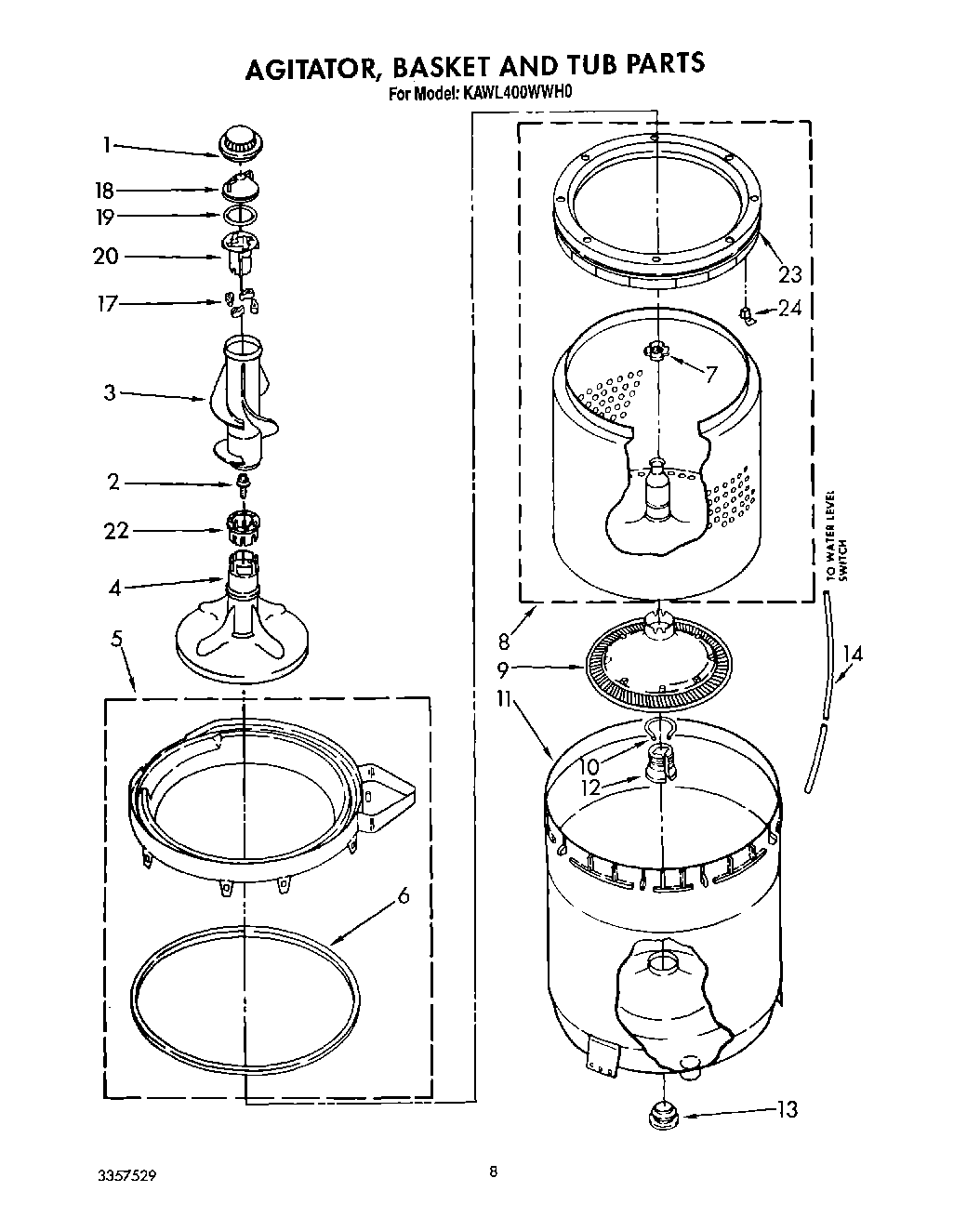

KAWL400WAL0 06 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	WP358237 Whirlpool Agitator Bolt
3	WP3349019 Whirlpool Upper Agitator
4	WP3350830 Whirlpool Agitator Assembly
5	Tub Ring & Gasket
6	WP3359586 Whirlpool Tub Seal
7	WP21366 Whirlpool Spanner Nut
8	Basket
9	285868 Whirlpool Washer Filter Plug Kit
10	Lock, Filter
11	Tub
12	WP389140 Whirlpool Drive Block or Bell
13	W10814296 Whirlpool Washer Center Post Seal Gasket
14	WP353244 Whirlpool Hose
17	80040 Whirlpool Washer Agitator Dog Kit
18	WPW10074580 Whirlpool Agitator Inner Cap and Seal
19	WPW10072840 Whirlpool Seal Assembly
20	285811 Whirlpool Washer Agitator Repair Kit
22	285587 Whirlpool Thrust Washer
24	WP8519815 Whirlpool Washer Balance Ring Clip
