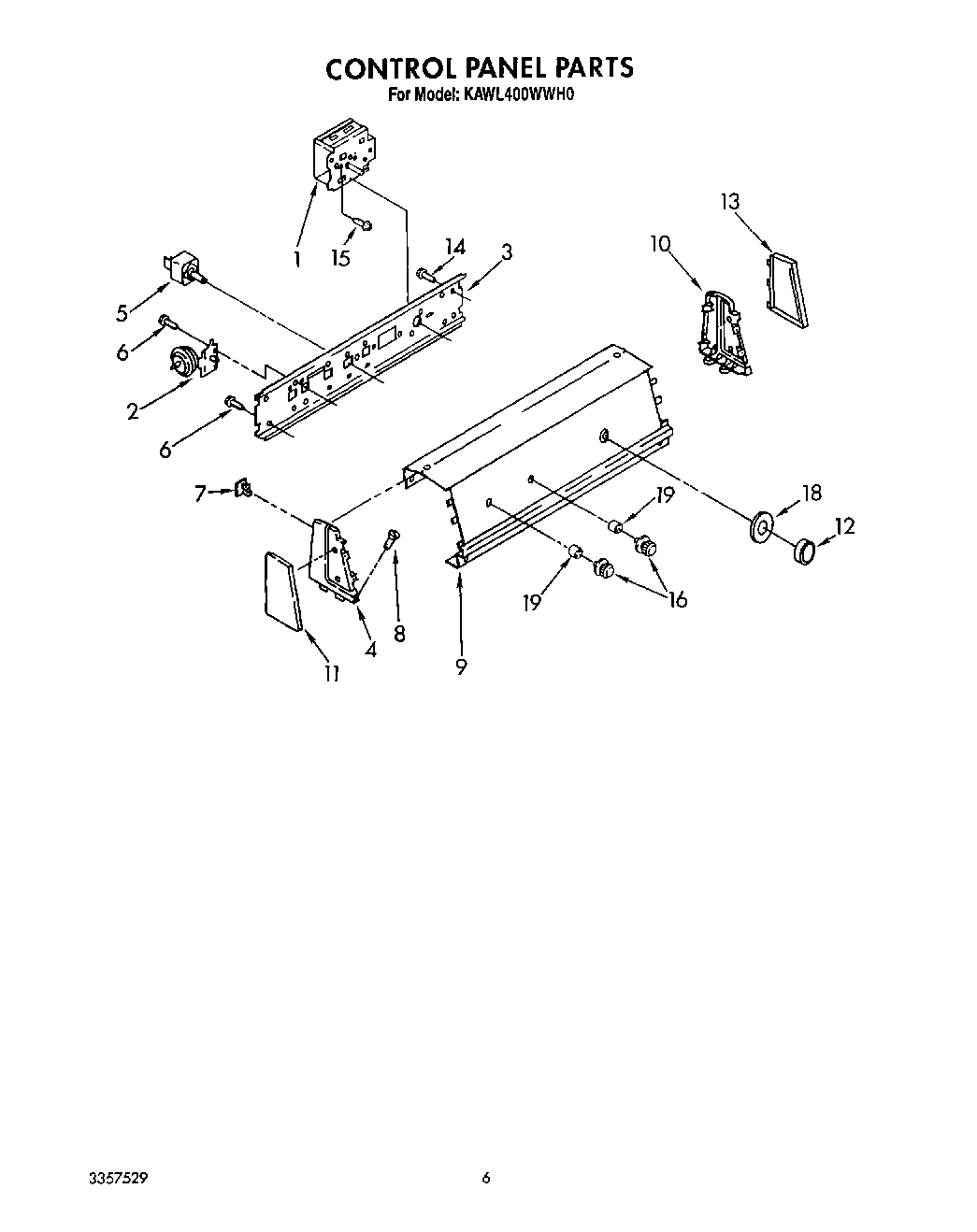

KAWL400WWH0 04 – CONTROL PANEL

Written by

Products

Position	Product
1	285952 Whirlpool Timer Assembly
2	Switch, Water Level
3	Bracket, Control
4	Cap, End (L.H.)
5	Switch, Water Temperature (Alt.)
5	Switch, Water Temperature
5	Switch, Water Temperature (Alt.)
6	WP90767 Whirlpool Screw
7	WP689559 Whirlpool Nut
8	WPL 64211
9	Console, Panel
10	Cap, End (R.H.)
11	Trim, Endcap (L.H.)
12	Knob, Timer
13	Trim, Endcap (R.H.)
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
16	Knob, Adjustable Buzzer
16	Knob, Water Level Switch
18	Dial, Timer
19	WP688805 Whirlpool Spring Clip
