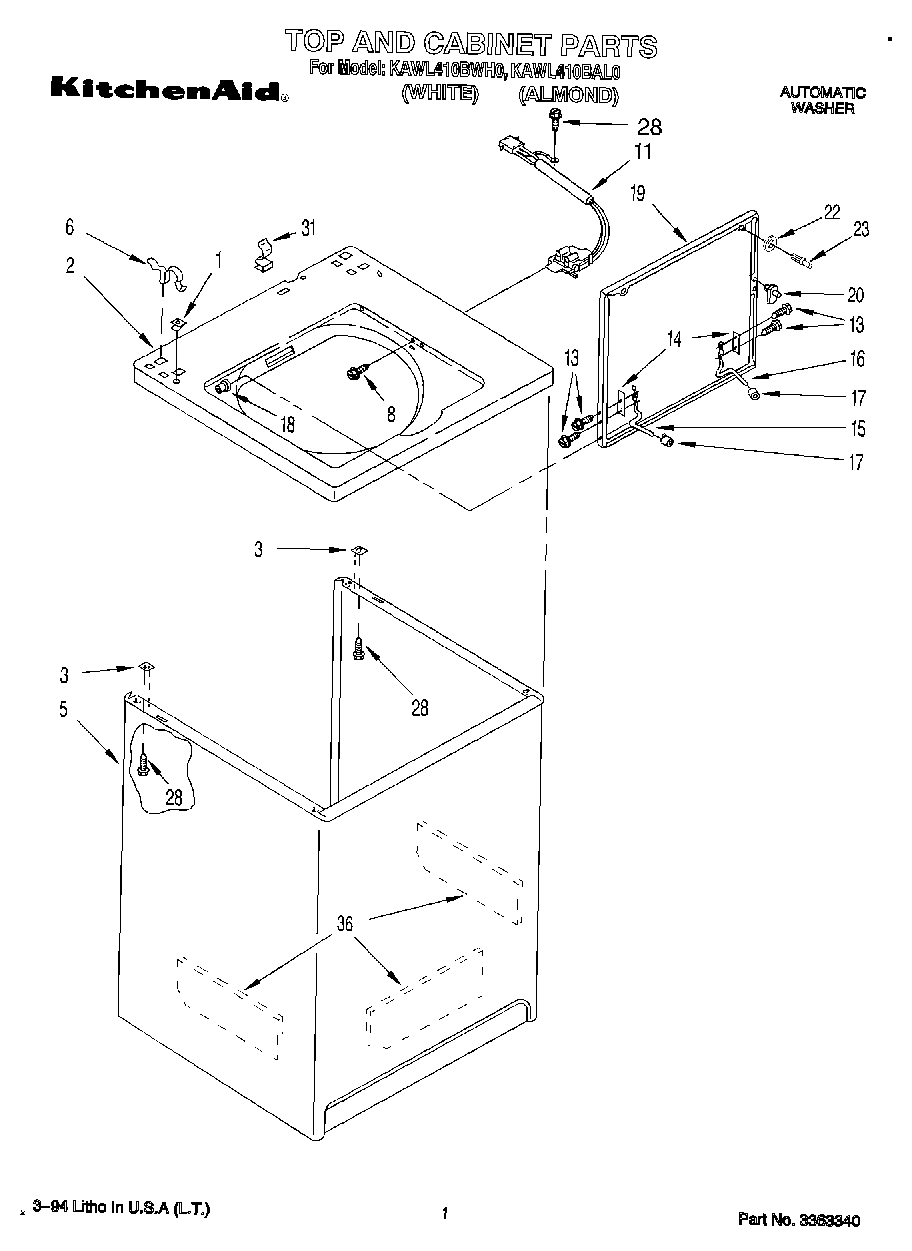

KAWL410BWH0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3362073
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	WPL 89121
	WP285195 Whirlpool Sealer Assembly
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WPL LIT3351735
	Sheet, I
	Energy Guide
	350572 Whirlpool Oil Transmission 15 Oz
	Drain Protector (Not Included)
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	285320 Whirlpool Washer Siphon Break Kit
	72017 Whirlpool Appliance Touch-Up Paint White
	Almond (Uncut)
1	WP357213 Whirlpool Hinge Stopper
2	Top (For Almond Model)
2	Top (For White Model)
3	WP62750 Whirlpool Spacer
5	Cabinet (Almond)
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (For Almond Model)
19	Lid (For White Model)
20	WP358684 Whirlpool Strike Assembly
22	Bumper, Lid (1)
23	WP356907 Whirlpool Rivet
28	SCREW
31	WP90016 Whirlpool Clip
36	Cabinet-Sound Damper
