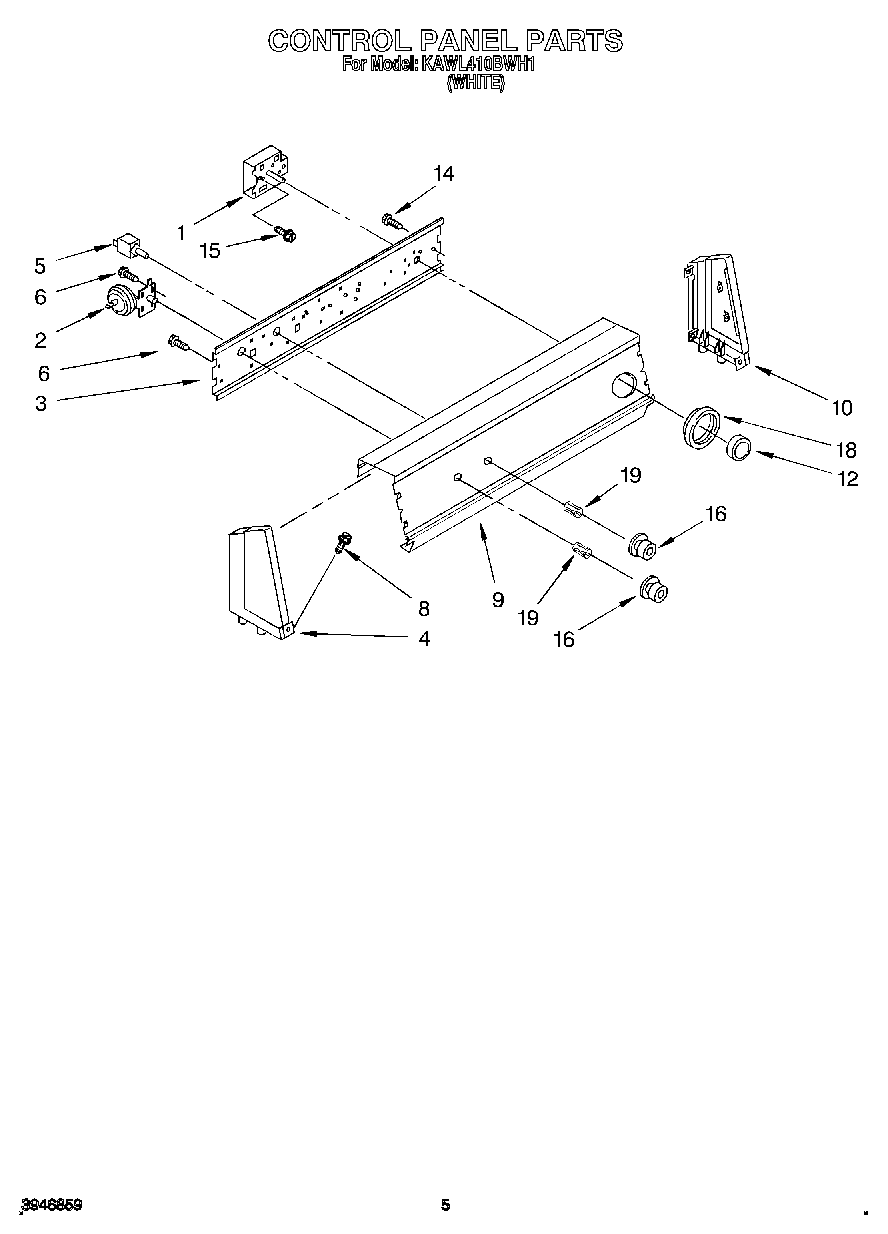

KAWL410BWH1 03 – CONTROL PANEL

Products

PositionProduct
1Timer, Control 60 Hz. (Motor Not A Service Part)
2WP3356467 Whirlpool Washer Water Level Switch
3WP3948608 Whirlpool Bracket
4Cap, End (L.H.)
5Switch, Water Temperature (Alt.)
5Switch, Water Temperature
5Switch, Water Temperature (Alt.)
6WP90767 Whirlpool Screw
8WPL 64211
9Console, Panel (For White & Almond Models)
10Cap, End (R.H.)
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
16Knob (Control)
18Dial, Timer (For White Model)
19WP688805 Whirlpool Spring Clip
