KAWL410BWH1 08 – WIRING HARNESS

KAWL410BWH1 08 – WIRING HARNESS

Written by

in

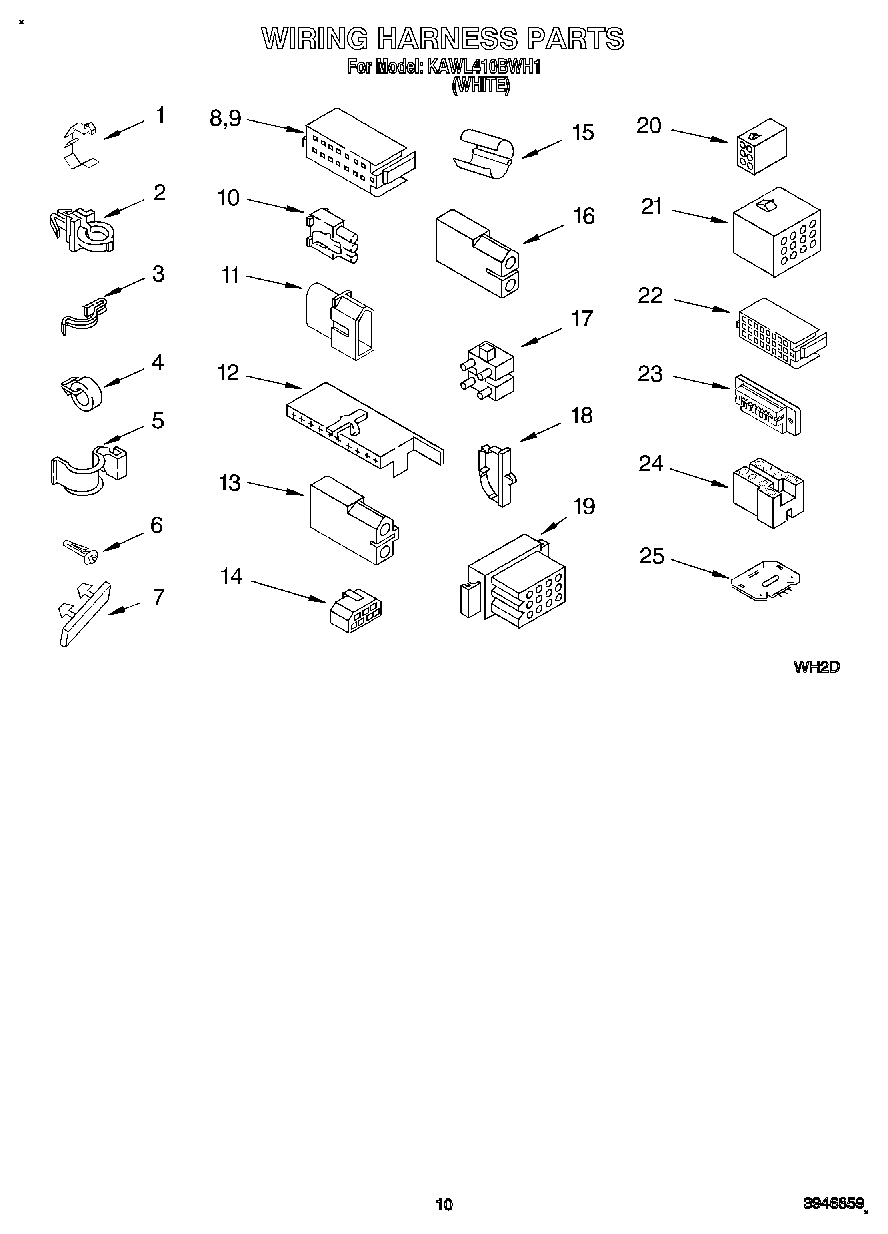

KAWL410BWH1 08 – WIRING HARNESS

Products

PositionProduct
1Clip, Harness
2Clip, Harness
38528351 Whirlpool Clip
48559320 Whirlpool Clip
5WP90016 Whirlpool Clip
6Clip, Harness
7WP389379 Whirlpool Retainer
8Timer, Block Disconnect (White)
9W10876590 Whirlpool Connector
10WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
11353424 Whirlpool Connector
12WP62505 Whirlpool Connector
13Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
14Block, Disconnect
15Protector, Harness
16Receptacle, Latching (2-Way) (Uses Terminal 94614)
17Plug, Terminal (4-Way) (Power Cord) (Use M3 Screws)
18Clip, Harness
19Block, Disconnect (12-Way) (Timer) (Use Term. 94613)
20Receptacle, (6-Way) (Use Term. 94613)
21Plug, Terminal (12-Way) (Use Term. 94613 Or 94614)
22Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365)
23Connector, Etc
24Connector, Relay (Use Term. 308569)
25E.T.C. Control
