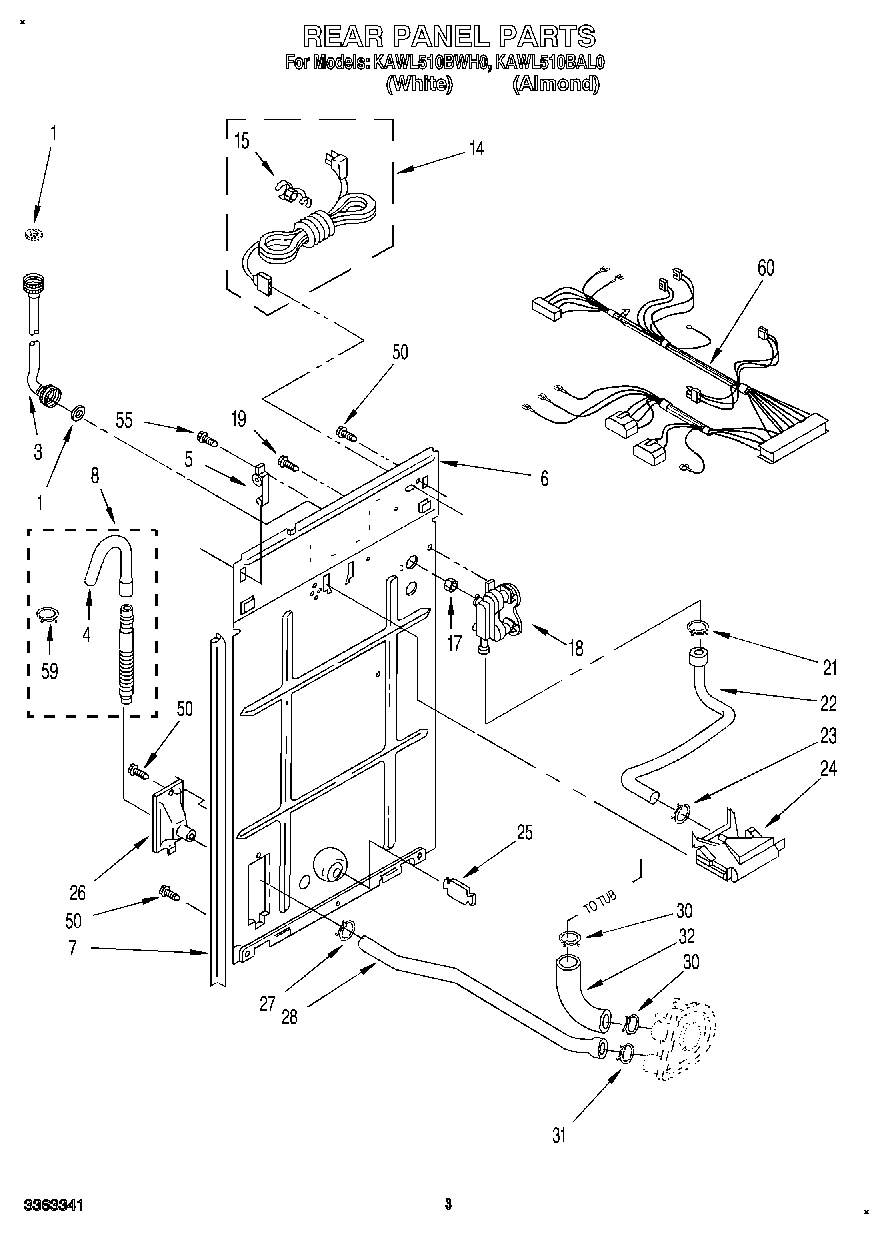

KAWL510BWH0 02 – REAR PANELadmin2025-04-26T13:05:20+00:00KAWL510BWH0 02 – REAR PANEL ProductsPositionProduct1WP16123 Whirlpool Washer3WP89503 Whirlpool Washer Fill Hose4WP3357027 Whirlpool Nozzle Assembly5Hinge, Console (2)6WP3357978 Whirlpool Rear Panel7WP62747 Whirlpool Pad8285702 Whirlpool Extensions8285666 Whirlpool Drain Hose 10'8285664 Whirlpool Drain Hose14Cord, Power15Strain Relief, Power Cord17WP96160 Whirlpool Washer Inlet Valve Screen18285805 Whirlpool Washer Water Inlet Valve19WP3351614 Whirlpool Screw21WP596669 Whirlpool Hose Clamp22HOSE24WP3347034 Whirlpool Vacuum Break25WP8519200 Whirlpool Support Assembly26WPW10358149 Whirlpool Hose27WP356138 Whirlpool Hose Clamp28Hose, Pump To Drain30WP371502 Whirlpool Clamp32285871 Whirlpool Hose and Clamp50WP3390631 Whirlpool Screw55WP308685 Whirlpool Microwave Screw59WP3357331 Whirlpool Clamp60Harness, Wiring (For Detail See Wiring Harness Parts Page) Also See Clips.
