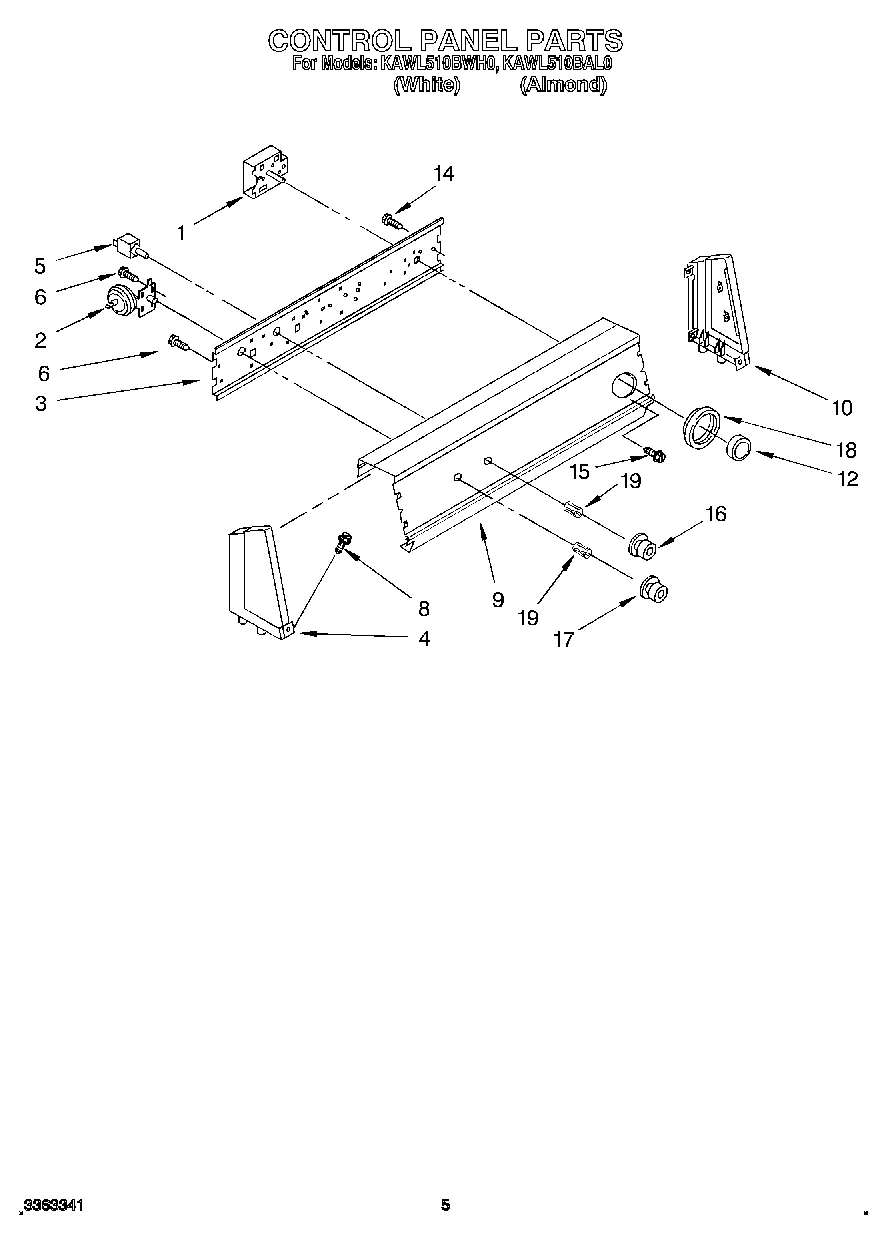

KAWL510BWH0 03 – CONTROL PANEL

Products

PositionProduct
1Timer, Control 60 Hz. (Motor Not A Service Part)
2Switch, Water Level
3WP3948608 Whirlpool Bracket
4Cap, End (L.H.)
5Switch, Water Temperature (Alt.)
5Switch, Water Temperature
5Switch, Water Temperature (Alt.)
6WP90767 Whirlpool Screw
8WPL 64211
9Console, Panel (For White & Almond Models)
10Cap, End (R.H.)
12Knob, Timer
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
17Knob (Control)
18Dial, Timer (For White & Almond Models)
19WP688805 Whirlpool Spring Clip
