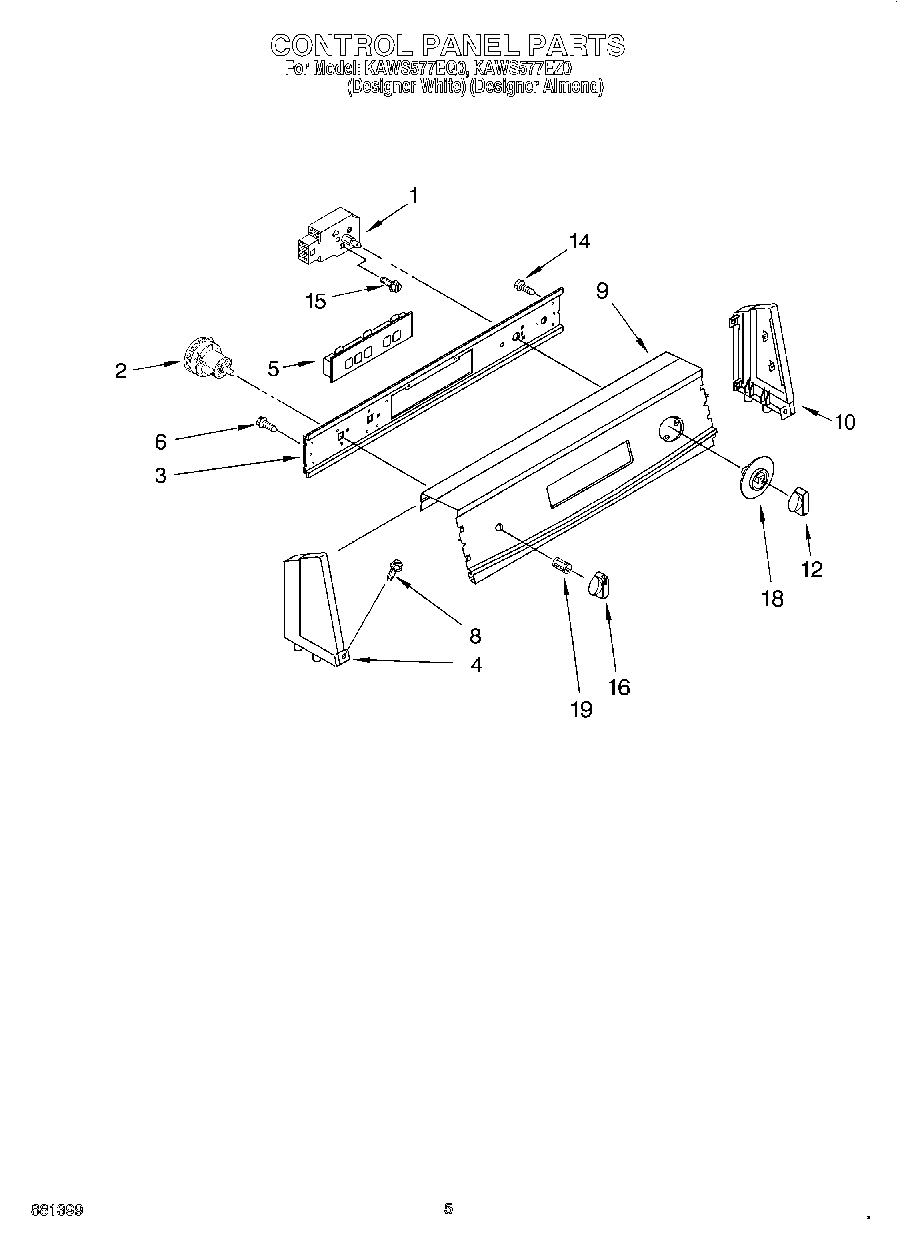

KAWS577EZ0 03 – CONTROL PANELadmin2025-04-26T13:03:45+00:00KAWS577EZ0 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Timer, Control 60Hz. (Motor Not Serviced) |
| 2 | SWITCH-WL |
| 3 | Bracket, Control |
| 4 | End Cap (L.H.) |
| 4 | Cap, End (L.H.) |
| 5 | Switch, Clean Touch (Almond Model) |
| 5 | Switch, Clean Touch (White Model) |
| 6 | WP90767 Whirlpool Screw |
| 8 | WP388326 Whirlpool Screw |
| 9 | Console, Panel (Almond Model) |
| 9 | Console, Panel (White Model) |
| 10 | Cap, End (R.H.) |
| 10 | Cap, End (R.H.) |
| 12 | Knob, Timer (White Model) |
| 12 | Knob, Timer (Almond Model) |
| 14 | WP3351614 Whirlpool Screw |
| 15 | WP356418 Whirlpool Screw |
| 16 | Knob, Control (2) (White) |
| 16 | Knob, Control (Almond Model) |
| 18 | Dial, Timer (Almond Model) |
| 18 | Dial, Timer (White Model) |
| 19 | WP688805 Whirlpool Spring Clip |
