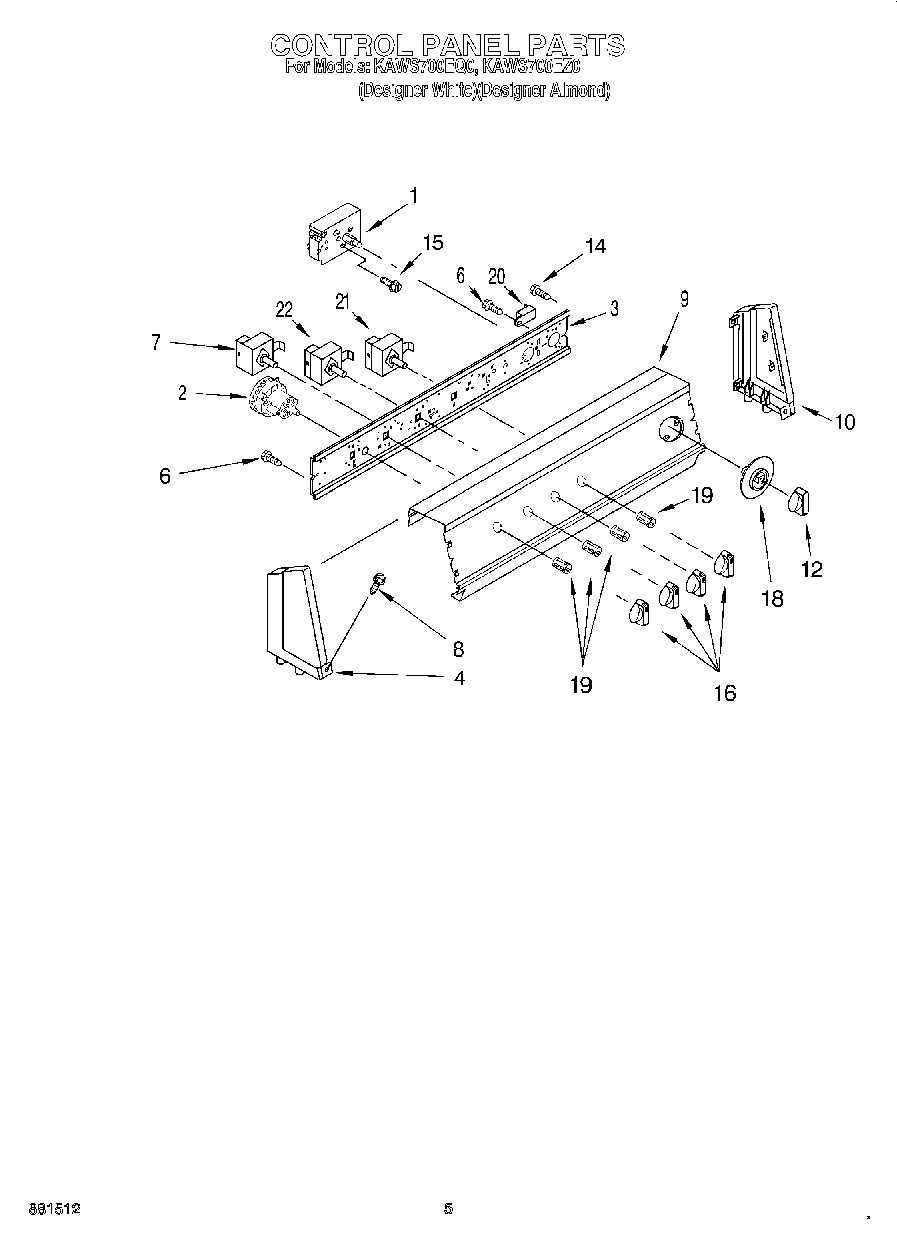

KAWS700EQ0 03 – CONTROL PANEL

Products

Position	Product
1	Timer, Control 60Hz. (Motor Not Serviced)
2	W10339326 Whirlpool Washer Water Level Switch
3	WP3948608 Whirlpool Bracket
4	End Cap (L.H.)
4	Cap, End (L.H.)
6	WP90767 Whirlpool Screw
7	Switch, Water Temperature
8	WP388326 Whirlpool Screw
9	Console, Panel (Almond Model)
9	Console, Panel (White Model)
10	Cap, End (R.H.)
10	Cap, End (R.H.)
12	Knob, Timer (Almond Model)
12	Knob, Timer (White Model)
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
16	Knob, Control (Almond Model)
16	Knob, Control (2) (White)
18	Dial, Timer (Almond Model)
18	Dial, Timer (White Model)
19	WP688805 Whirlpool Spring Clip
20	WP694419 Whirlpool Buzzer Adjuster
21	W10168264 Whirlpool Cycle Switch
22	W10851055 Whirlpool Cycle Switch
