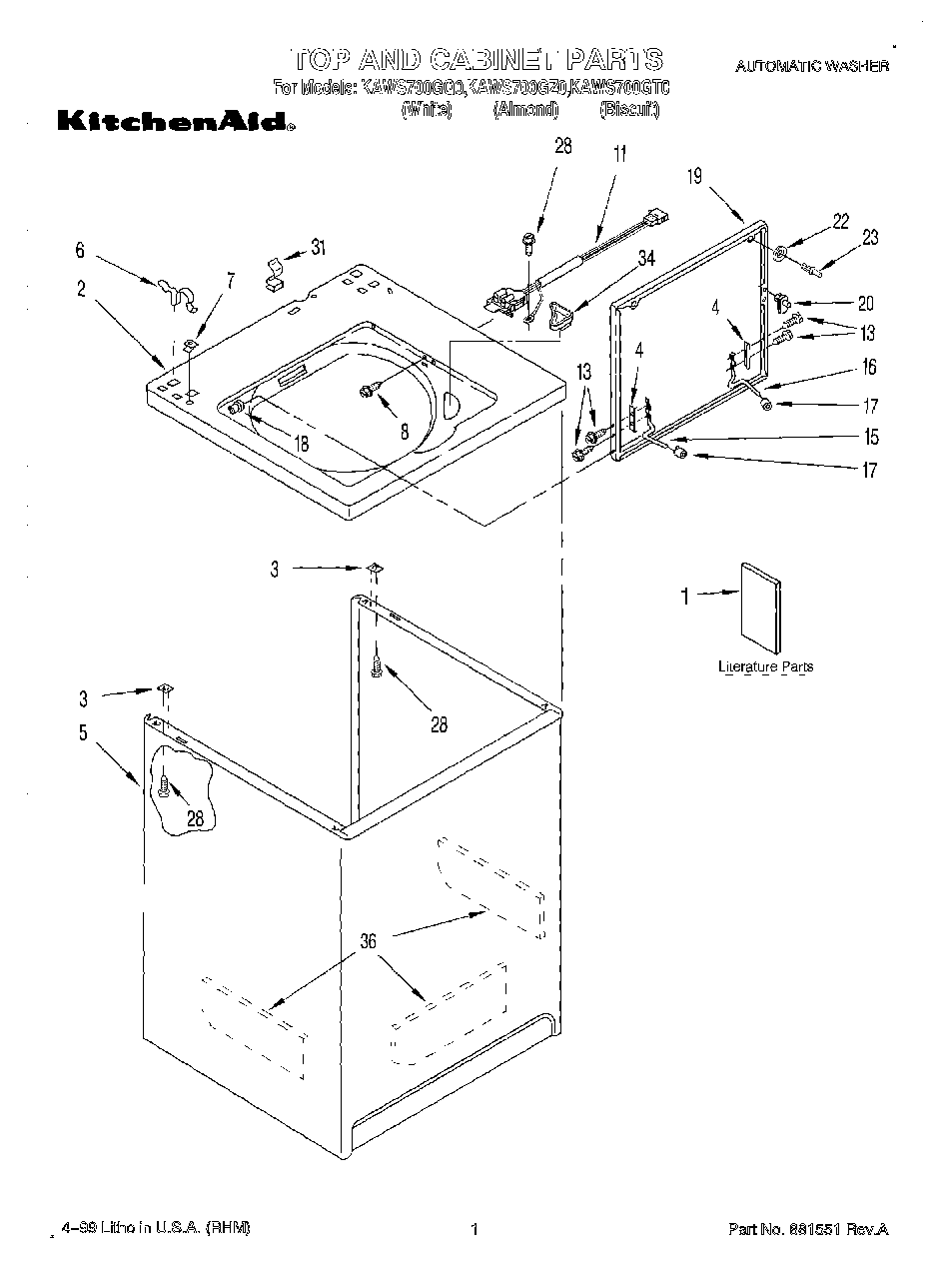

KAWS700GQ0 01 – TOP AND CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Energy Guide)
1	Guide, Use and Care
1	Installation Instructions
2	Top (White)
2	Top (Almond)
2	Top (Biscuit)
3	WP62750 Whirlpool Spacer
4	WP21097 Whirlpool Pad
5	Cabinet
5	Cabinet (Almond Model)
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP357213 Whirlpool Hinge Stopper
8	WP3356311 Whirlpool Screw
11	3949247V Whirlpool Washer Lid Switch Assembly
13	SCREW
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WPW10193854 Whirlpool Lid Assembly
19	Lid (Biscuit)
19	Lid (Almond)
20	WP358684 Whirlpool Strike Assembly
22	Bumper, Lid (1)
23	WP356907 Whirlpool Rivet
28	SCREW
31	WP90016 Whirlpool Clip
34	WP3362952 Whirlpool Bezel
36	Cabinet-Sound Damper
