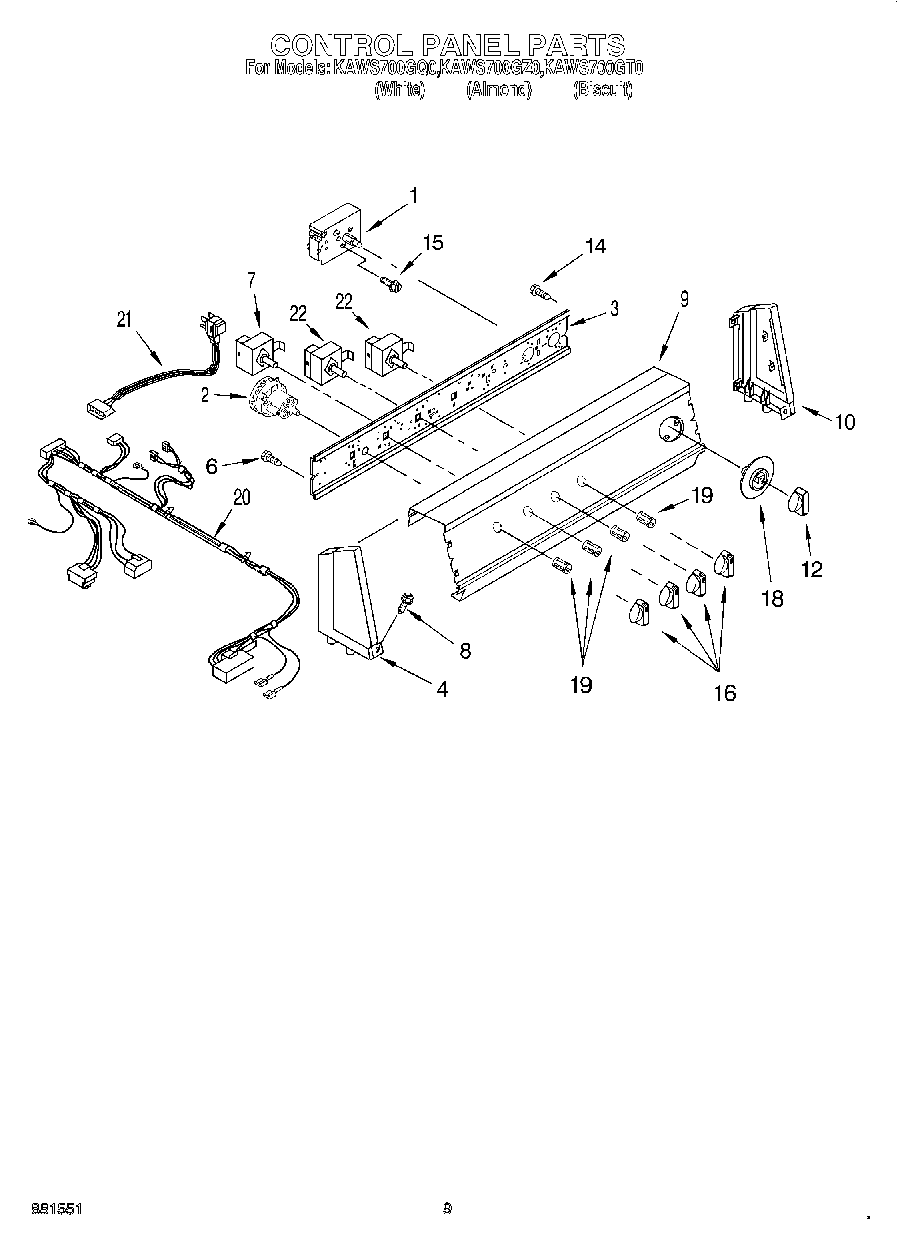

KAWS700GQ0 06 – CONTROL PANEL

Products

Position	Product
1	Timer, Control 60Hz. (Motor Not Serviced)
2	W10337780 Whirlpool Pressure Switch
3	WP3948608 Whirlpool Bracket
4	Cap, End (L.H.) (Biscuit)
4	End Cap (L.H.)
4	Cap, End (L.H.)
6	WP90767 Whirlpool Screw
7	Switch, Water Temperature
8	WP388326 Whirlpool Screw
9	Console, Panel (Biscuit)
9	Console, Panel (White)
9	Console, Panel (Almond)
10	Cap, End (R.H.)
10	Cap, End (R.H.)
10	Cap, End (R.H.) (Biscuit)
12	Knob, Timer (Almond Model)
12	Knob, Timer (Biscuit)
12	Knob, Timer (White Model)
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
16	Knob, Control (2) (Biscuit)
16	Knob, Control (Almond Model)
16	Knob, Control (2) (White)
18	Dial, Timer (Almond Model)
18	Dial, Timer (Biscuit)
18	Dial, Timer (White Model)
19	WP688805 Whirlpool Spring Clip
20	Harness, Wire (For Detail See Page 13 & 14)
21	W10820044 Whirlpool Power Cord
22	W10851055 Whirlpool Cycle Switch
