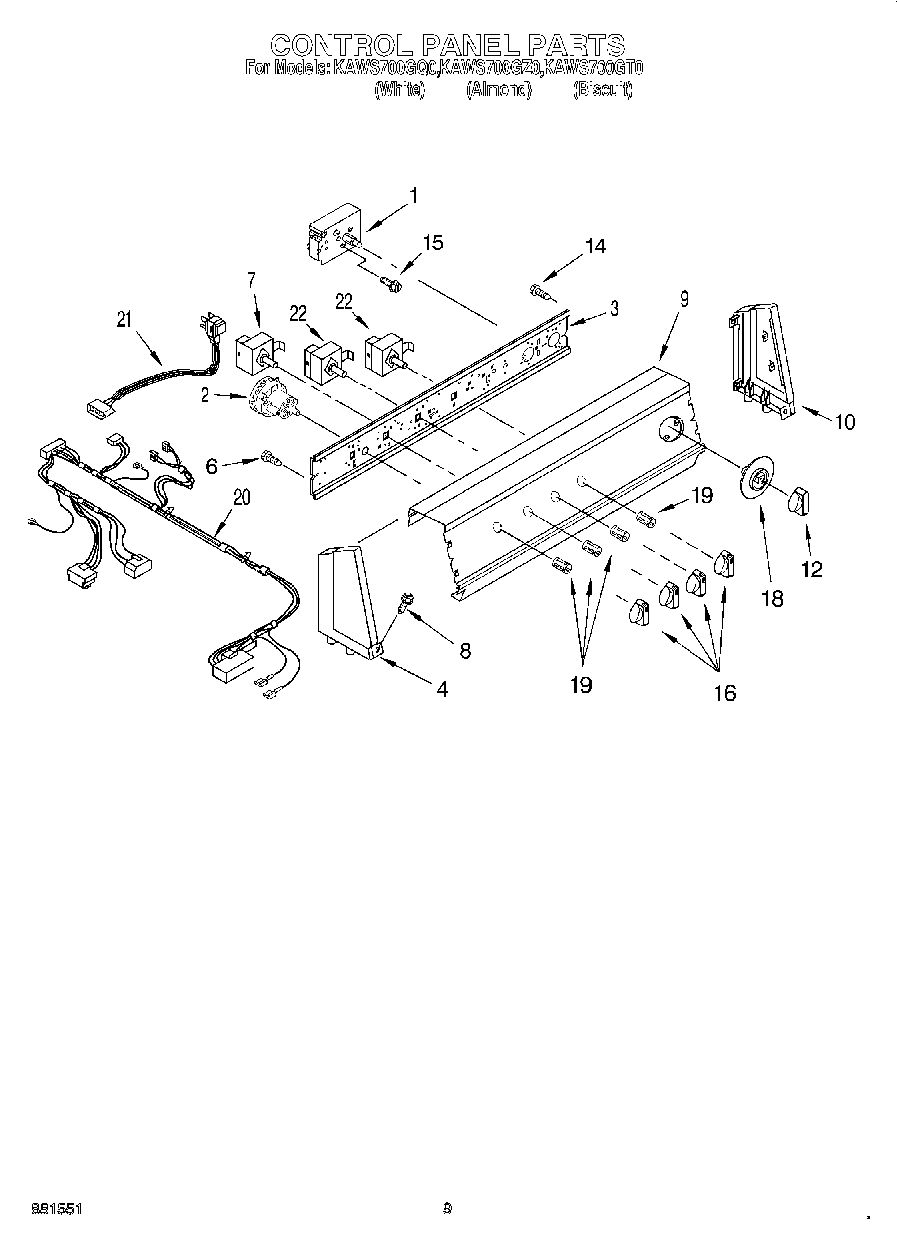

KAWS700GT0 06 – CONTROL PANEL

Products

PositionProduct
1Timer, Control 60Hz. (Motor Not Serviced)
2W10337780 Whirlpool Pressure Switch
3WP3948608 Whirlpool Bracket
4Cap, End (L.H.) (Biscuit)
4End Cap (L.H.)
4Cap, End (L.H.)
6WP90767 Whirlpool Screw
7Switch, Water Temperature
8WP388326 Whirlpool Screw
9Console, Panel (Biscuit)
9Console, Panel (White)
9Console, Panel (Almond)
10Cap, End (R.H.)
10Cap, End (R.H.)
10Cap, End (R.H.) (Biscuit)
12Knob, Timer (Almond Model)
12Knob, Timer (Biscuit)
12Knob, Timer (White Model)
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
16Knob, Control (2) (Biscuit)
16Knob, Control (Almond Model)
16Knob, Control (2) (White)
18Dial, Timer (Almond Model)
18Dial, Timer (Biscuit)
18Dial, Timer (White Model)
19WP688805 Whirlpool Spring Clip
20Harness, Wire (For Detail See Page 13 & 14)
21W10820044 Whirlpool Power Cord
22W10851055 Whirlpool Cycle Switch
