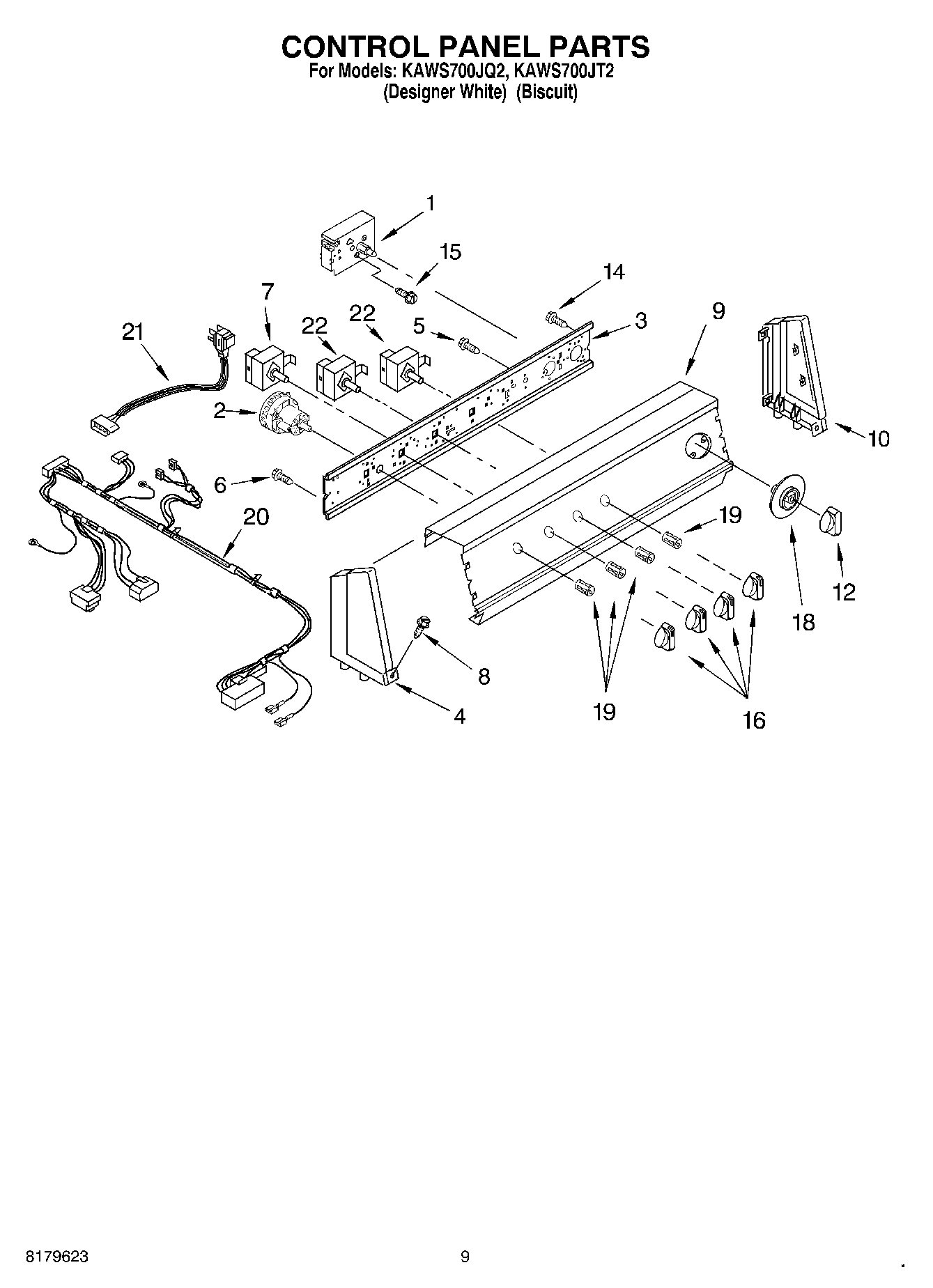

KAWS700JQ2 06 – CONTROL PANELadmin2025-04-26T13:04:25+00:00KAWS700JQ2 06 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Timer, Control 60Hz. (Motor Not Serviced) |
| 2 | W10337780 Whirlpool Pressure Switch |
| 3 | WP3948608 Whirlpool Bracket |
| 4 | Cap, End (L.H.) (Biscuit) |
| 4 | End Cap (L.H.) (White) |
| 5 | 3400073 Whirlpool Screw |
| 6 | WP90767 Whirlpool Screw |
| 7 | Switch, Water Temperature |
| 8 | WP388326 Whirlpool Screw |
| 9 | Console, Panel (White) |
| 9 | Console, Panel (Biscuit) |
| 10 | End Cap (R.H.) (White) |
| 10 | End Cap (R.H.) (Biscuit) |
| 12 | Knob, Timer (Biscuit) |
| 12 | Knob, Timer (White Model) |
| 14 | WP3351614 Whirlpool Screw |
| 15 | WP3400064 Whirlpool Screw |
| 16 | Knob, Control (2) (Biscuit) |
| 16 | Knob, Control (2) (White) |
| 18 | Dial, Timer (White Model) |
| 18 | Dial, Timer (Biscuit) |
| 19 | WP688805 Whirlpool Spring Clip |
| 20 | Harness, Wire (For Detail See Page 13 & 14) |
| 21 | W10820044 Whirlpool Power Cord |
| 22 | W10851055 Whirlpool Cycle Switch |
