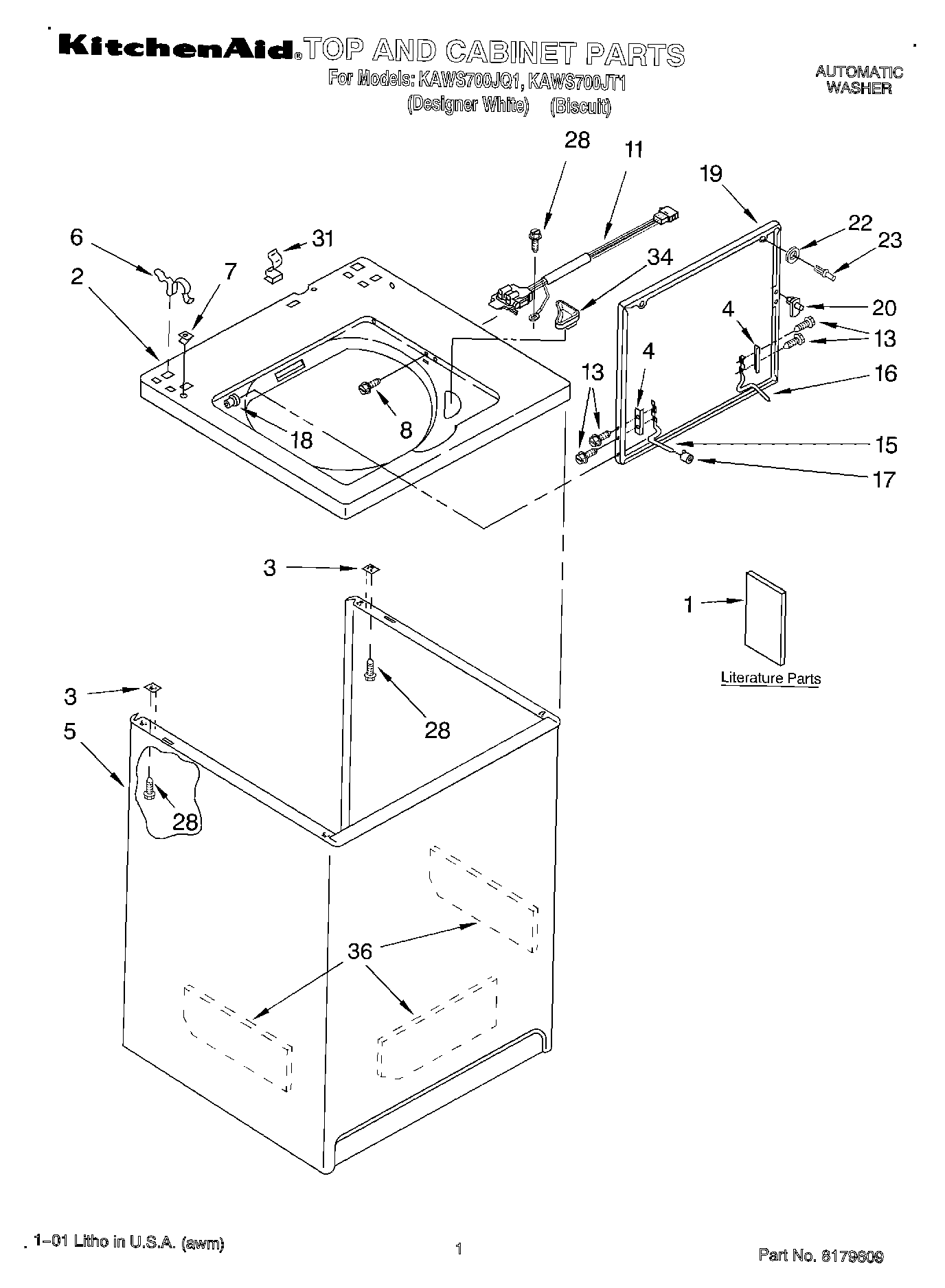

KAWS700JT1 01 – TOP AND CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Use & Care Guide) (Wiring Diagram)
1	Literature Parts (Use & Care Guide) (English)
1	Literature Parts (Use & Care Guide) (French)
1	Installation Instructions
1	Literature Parts (Use & Care Guide) (Energy Guide)
2	Top (White)
2	Top (Biscuit)
3	WP62750 Whirlpool Spacer
4	WP21097 Whirlpool Pad
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Biscuit)
6	WP62780 Whirlpool Cabinet Clip
7	WP357213 Whirlpool Hinge Stopper
8	WP3356311 Whirlpool Screw
11	3949247V Whirlpool Washer Lid Switch Assembly
13	SCREW
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Biscuit)
19	WPW10193854 Whirlpool Lid Assembly
20	WP358684 Whirlpool Strike Assembly
22	Bumper, Lid (1)
23	WP356907 Whirlpool Rivet
28	WP3390631 Whirlpool Screw
31	WP90016 Whirlpool Clip
34	WP3362952 Whirlpool Bezel
36	Cabinet-Sound Damper
