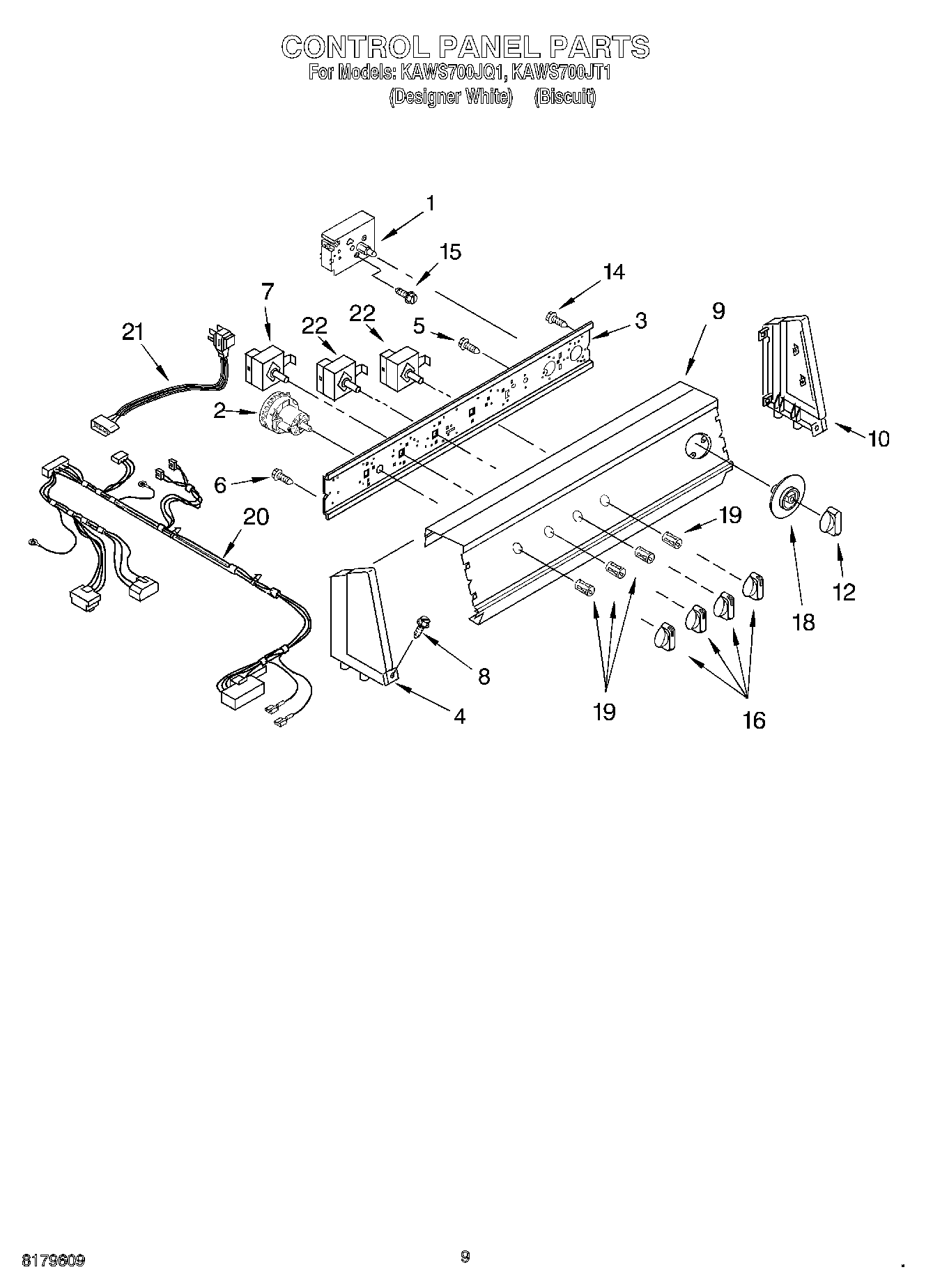

KAWS700JT1 06 – CONTROL PANEL

Products

Position	Product
1	Timer, Control (60 Hz.) (Motor Not Serviced)
2	W10337780 Whirlpool Pressure Switch
3	WP3948608 Whirlpool Bracket
4	End Cap (L.H.) (White)
4	Cap, End (L.H.) (Biscuit)
5	3400073 Whirlpool Screw
6	WP90767 Whirlpool Screw
7	Switch, Water Temperature
8	WP388326 Whirlpool Screw
9	Console, Panel (White)
9	Console, Panel (Biscuit)
10	End Cap (R.H.) (White)
10	End Cap (R.H.) (Biscuit)
12	Knob, Timer (White)
12	Knob, Timer (Biscuit)
14	WP3351614 Whirlpool Screw
15	WP3400818 Whirlpool Screw
16	Knob, Control (2) (White)
16	Knob, Control (2) (Biscuit)
18	Dial, Timer (White)
18	Dial, Timer (Biscuit)
19	WP688805 Whirlpool Spring Clip
20	Harness, Wire
21	W10820044 Whirlpool Power Cord
22	W10851055 Whirlpool Cycle Switch
