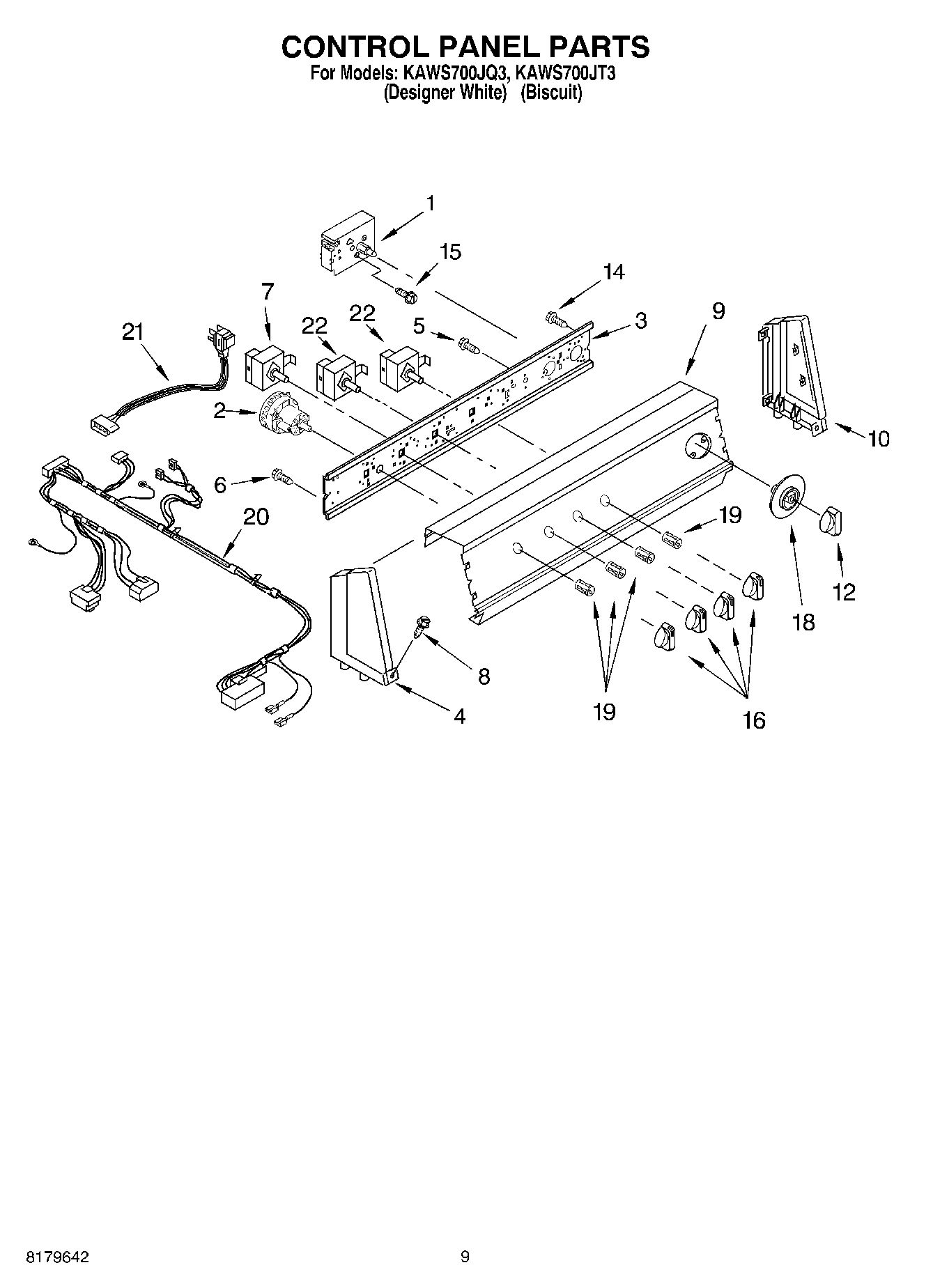

KAWS700JT3 06 – CONTROL PANEL

Products

PositionProduct
1Timer, Control (60 Hz.) (Motor Not Serviced)
2W10337780 Whirlpool Pressure Switch
3WP3948608 Whirlpool Bracket
4End Cap (L.H.) (White)
4Cap, End (L.H.) (Biscuit)
53400073 Whirlpool Screw
6WP90767 Whirlpool Screw
7Switch, Water Temperature
8WP388326 Whirlpool Screw
9Console, Panel (Biscuit)
9Console, Panel (White)
10End Cap (R.H.) (Biscuit)
10End Cap (R.H.) (White)
12Knob, Timer (White)
12Knob, Timer (Biscuit)
14WP3351614 Whirlpool Screw
15WP3400818 Whirlpool Screw
16Knob, Control (2) (White)
16Knob, Control (2) (Biscuit)
18Dial, Timer (White)
18Dial, Timer (Biscuit)
19WP688805 Whirlpool Spring Clip
20Harness, Wire
21W10820044 Whirlpool Power Cord
22W10851055 Whirlpool Cycle Switch
