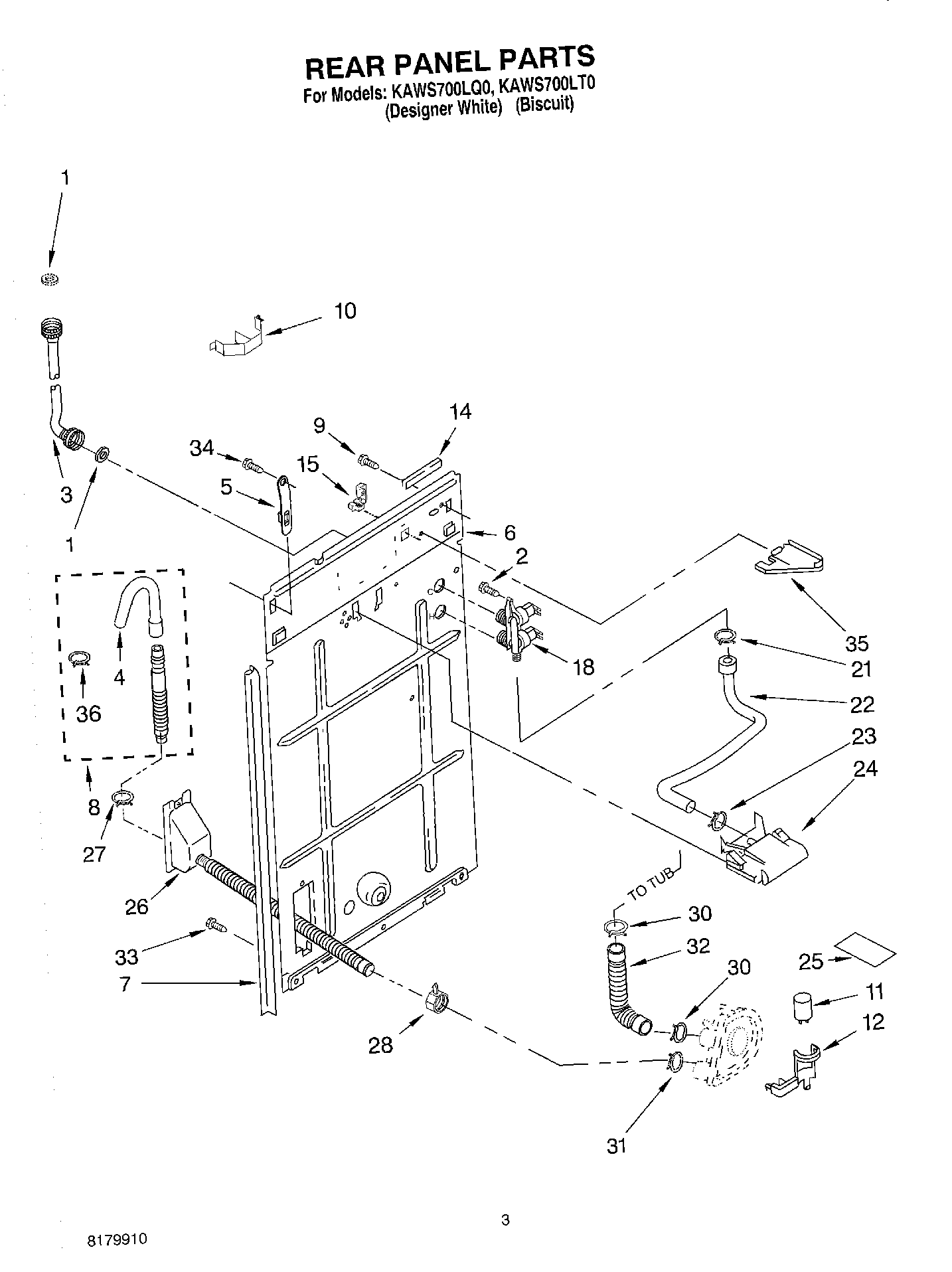

KAWS700LT0 02 – REAR PANEL

KAWS700LT0 02 – REAR PANEL

Written by

in

KAWS700LT0 02 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9WP3351614 Whirlpool Screw
10Clip, Harness & Pressure Hose
11WP8572720 Whirlpool Capacitor
12Clip, Capacitor
14Edge Protector
15Strain Relief, Power Cord
18285805 Whirlpool Washer Water Inlet Valve
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Shield, Capacitor
26WPL 8317941
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
30WP616099 Whirlpool Clamp
31WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
33WP3390631 Whirlpool Screw
34WP90767 Whirlpool Screw
35WPL 3348424
36WP3357331 Whirlpool Clamp
