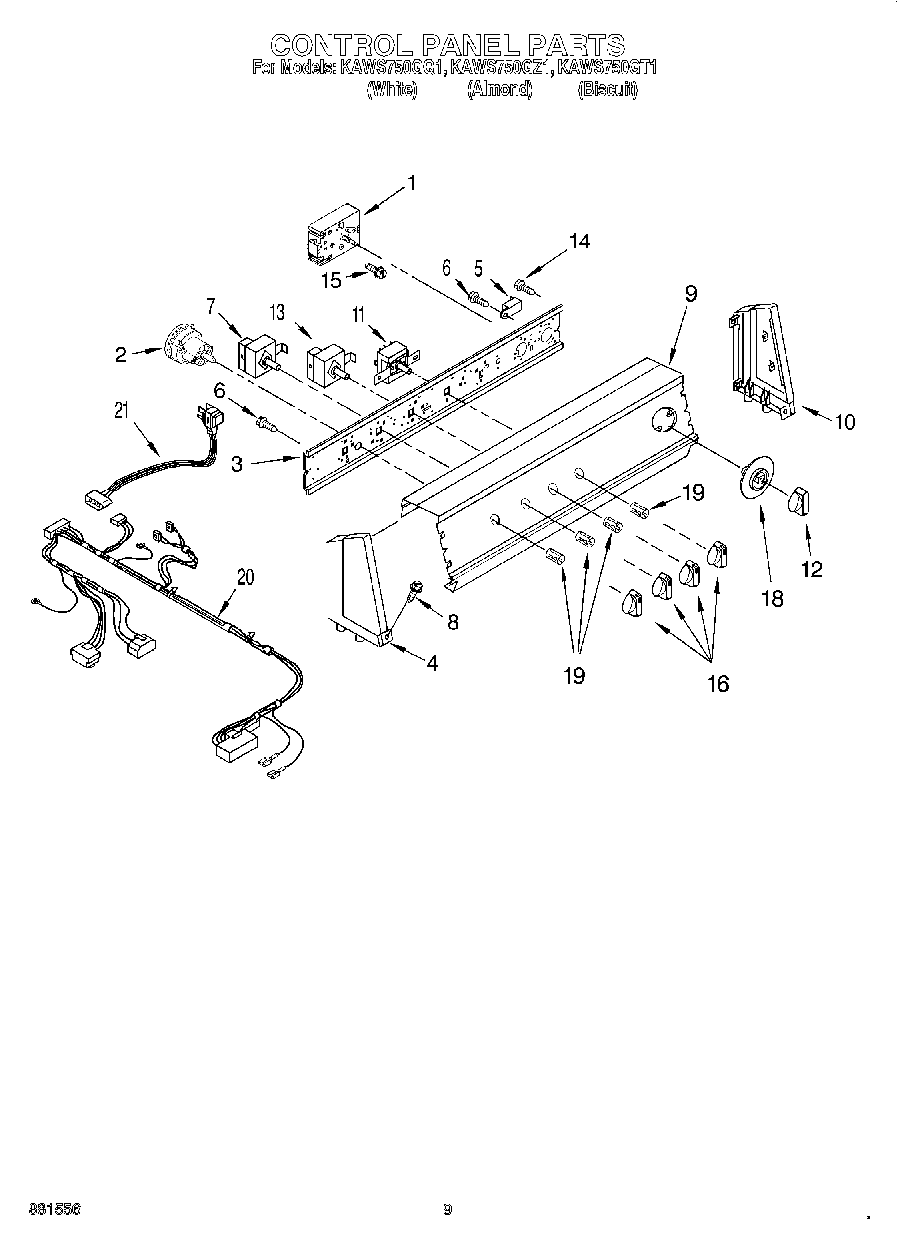

KAWS750GT1 06 – CONTROL PANEL

KAWS750GT1 06 – CONTROL PANEL

Written by

in

KAWS750GT1 06 – CONTROL PANEL

Products

PositionProduct
1Timer, Control 60Hz. (Motor Not Serviced)
2W10339326 Whirlpool Washer Water Level Switch
3WP3948608 Whirlpool Bracket
4Cap, End (L.H.)
4Cap, End (L.H.) (Biscuit)
4End Cap (L.H.)
5WP694419 Whirlpool Buzzer Adjuster
6WP90767 Whirlpool Screw
7Switch, Water Temperature
8WP388326 Whirlpool Screw
9Console, Panel (Almond)
9Console, Panel (Biscuit)
9Console, Panel (White)
10Cap, End (R.H.)
10Cap, End (R.H.) (Biscuit)
10Cap, End (R.H.)
11Switch, Rotary
12Knob, Timer (White Model)
12Knob, Timer (Almond Model)
12Knob, Timer (Biscuit)
13W10168264 Whirlpool Cycle Switch
14WP3351614 Whirlpool Screw
15WP356418 Whirlpool Screw
16Knob, Control (2) (Biscuit)
16Knob, Control (2) (White)
16Knob, Control (Almond Model)
18Dial, Timer (Biscuit)
18Dial, Timer (White Model)
18Dial, Timer (Almond Model)
19WP688805 Whirlpool Spring Clip
20Harness, Wire
21W10820044 Whirlpool Power Cord
