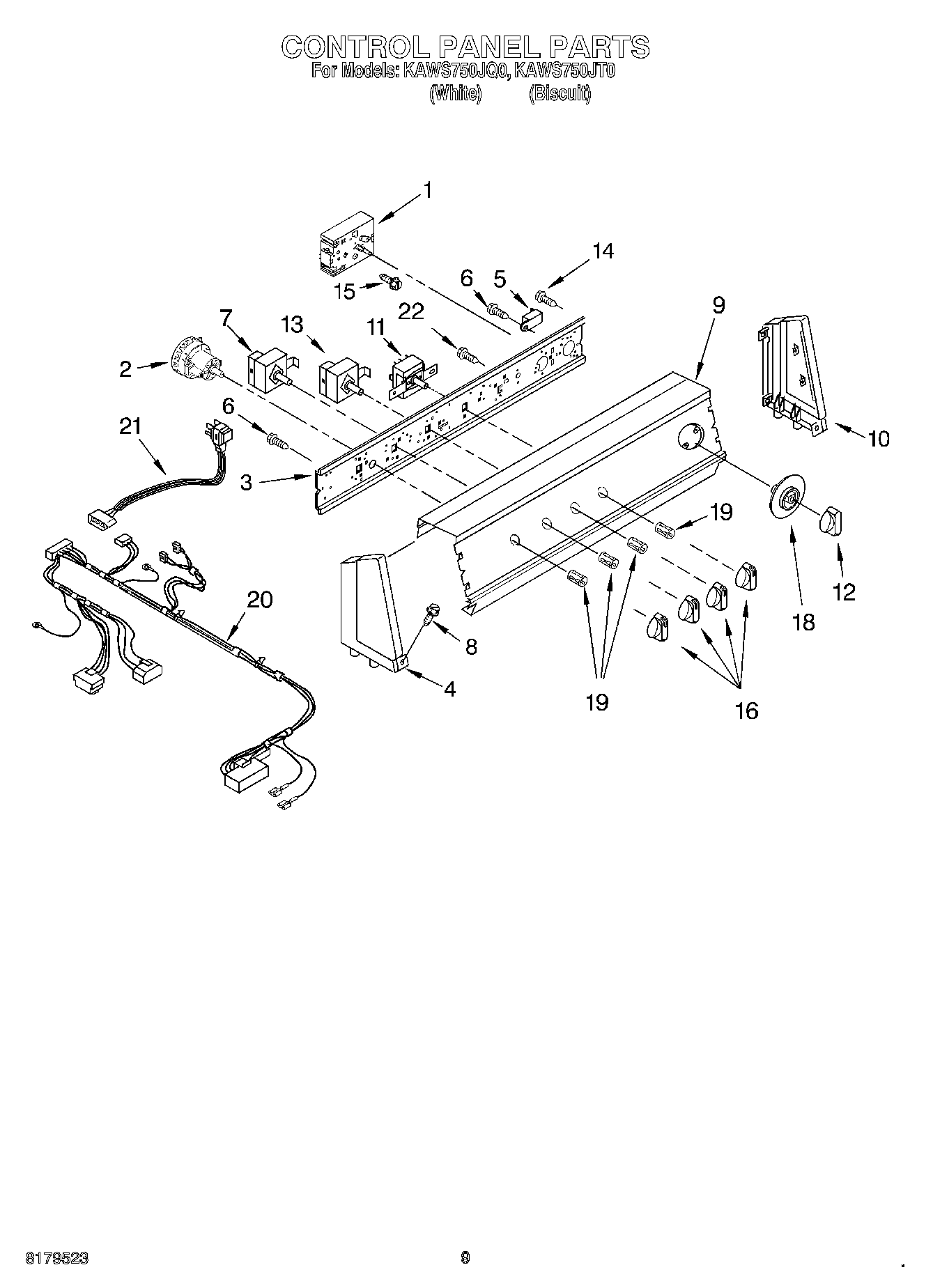

KAWS750JQ0 06 – CONTROL PANEL

Products

Position	Product
1	Timer, Control 60Hz. (Motor Not Serviced)
2	W10339326 Whirlpool Washer Water Level Switch
3	WP3948608 Whirlpool Bracket
4	End Cap (L.H.) (White)
4	Cap, End (L.H.) (Biscuit)
5	WP694419 Whirlpool Buzzer Adjuster
6	WP90767 Whirlpool Screw
7	Switch, Water Temperature
8	WP388326 Whirlpool Screw
9	Console, Panel (White)
9	Console, Panel (Biscuit)
10	End Cap (R.H.) (Biscuit)
10	End Cap (R.H.) (White)
11	Switch, Rotary
12	Knob, Timer (Biscuit)
12	Knob, Timer (White Model)
13	W10168264 Whirlpool Cycle Switch
14	WP3351614 Whirlpool Screw
15	WP3400064 Whirlpool Screw
16	Knob, Control (2) (White)
16	Knob, Control (2) (Biscuit)
18	Dial, Timer (White Model)
18	Dial, Timer (Biscuit)
19	WP688805 Whirlpool Spring Clip
20	Harness, Wire
21	W10820044 Whirlpool Power Cord
22	3400073 Whirlpool Screw
