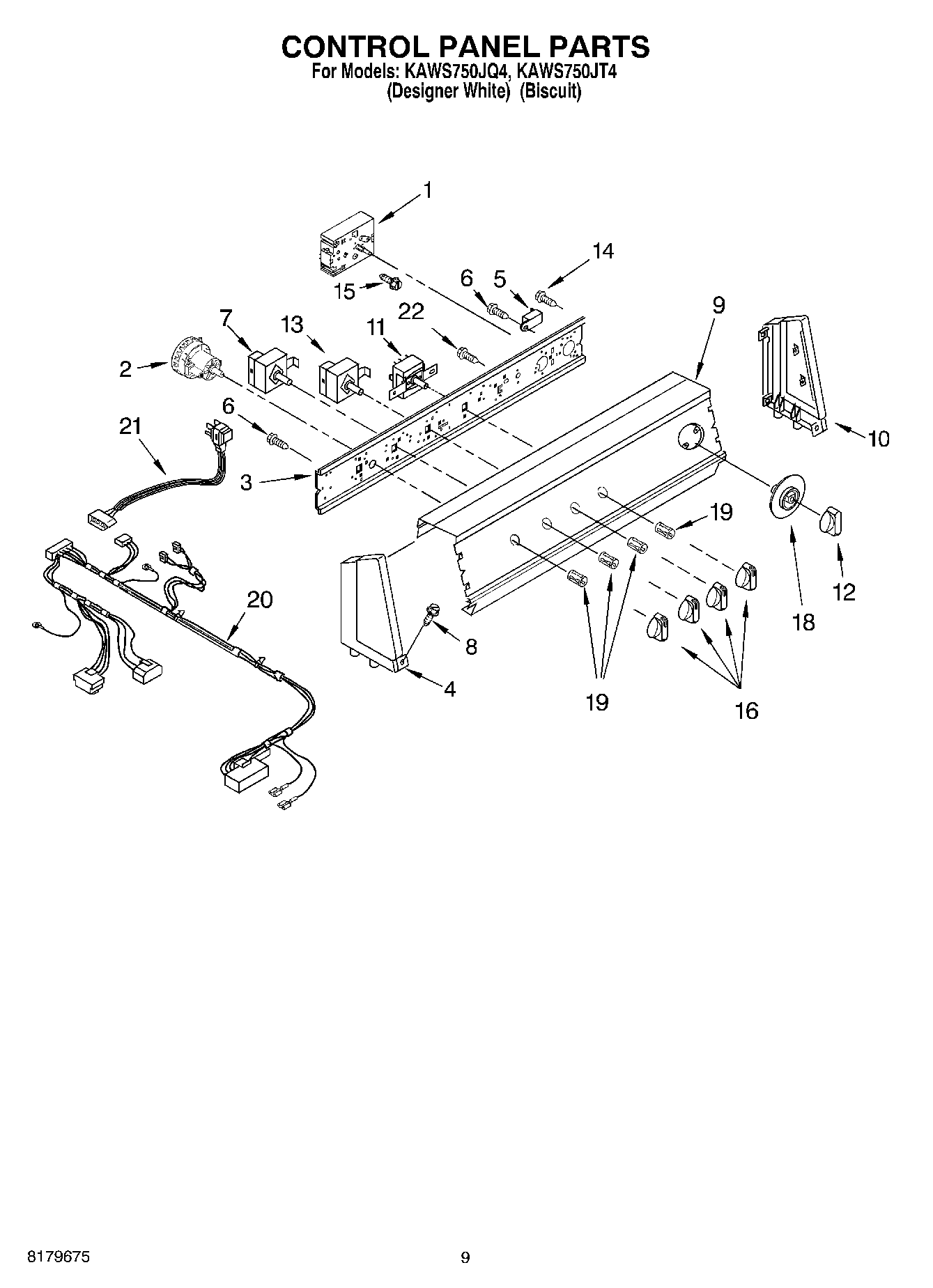

KAWS750JQ4 06 – CONTROL PANEL

Products

PositionProduct
1WP3954915 Whirlpool Timer
2W10339326 Whirlpool Washer Water Level Switch
3WP3948608 Whirlpool Bracket
4End Cap (L.H.) (White)
4Cap, End (L.H.) (Biscuit)
5WP694419 Whirlpool Buzzer Adjuster
6WP90767 Whirlpool Screw
7Switch, Water Temperature
8WP388326 Whirlpool Screw
9Console, Panel (Biscuit)
9Console, Panel (White)
10End Cap (R.H.) (Biscuit)
10End Cap (R.H.) (White)
11Switch, Rotary
12Knob, Timer (Biscuit)
12Knob, Timer (White)
13W10168264 Whirlpool Cycle Switch
14WP3351614 Whirlpool Screw
15WP3400818 Whirlpool Screw
16Knob, Control (2) (White)
16Knob, Control (2) (Biscuit)
18Dial, Timer (White)
18Dial, Timer (Biscuit)
19WP688805 Whirlpool Spring Clip
20Harness, Wire
21W10820044 Whirlpool Power Cord
223400073 Whirlpool Screw
