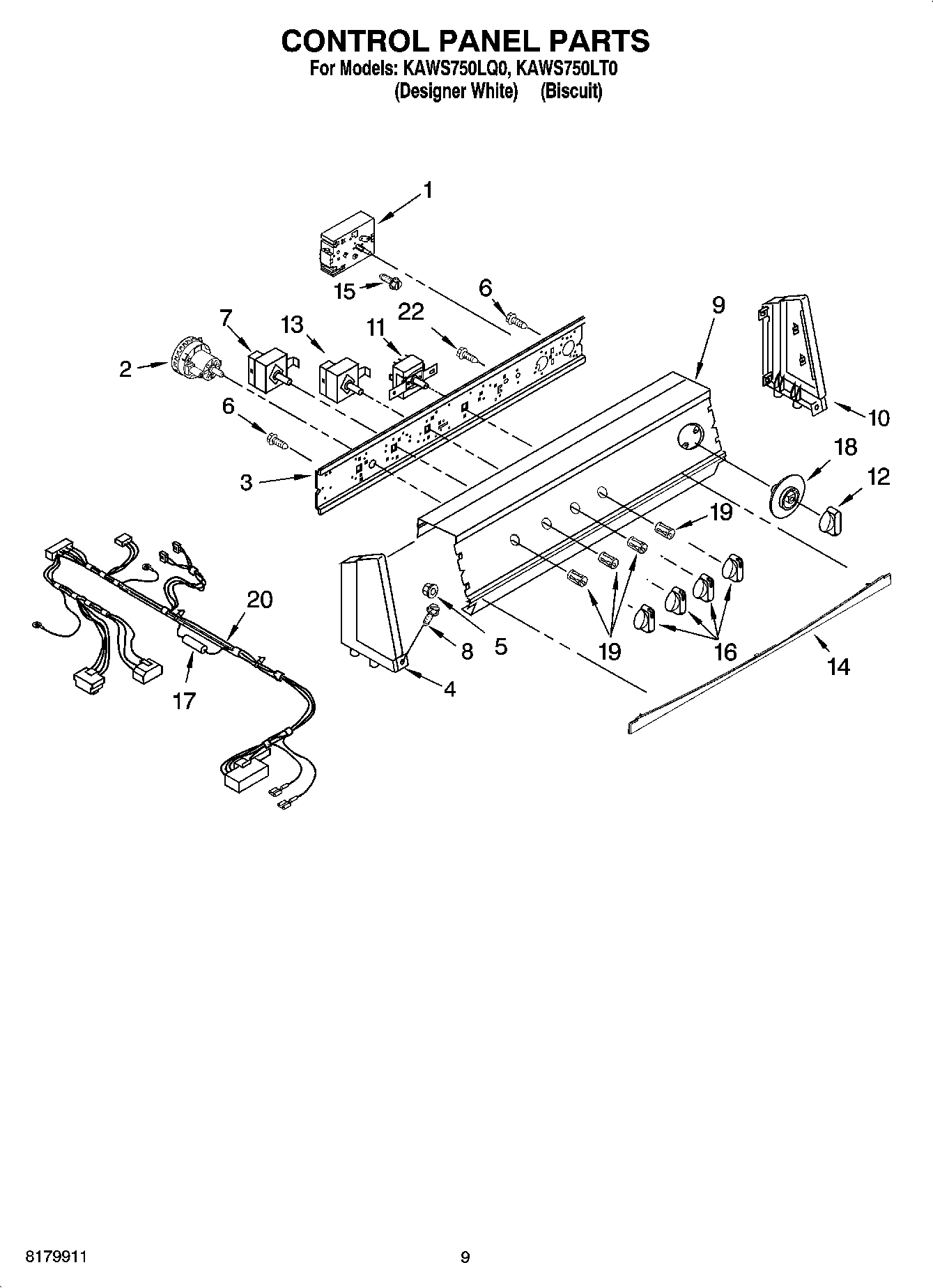

KAWS750LQ0 06 – CONTROL PANEL PARTS

Products

Position	Product
1	WP3954915 Whirlpool Timer
2	W10339326 Whirlpool Washer Water Level Switch
3	WP3948608 Whirlpool Bracket
4	Cap, End (L.H.) (Biscuit)
4	End Cap (L.H.) (White)
5	WPL 8533828
6	WP90767 Whirlpool Screw
7	Switch, Water Temperature
8	WP388326 Whirlpool Screw
9	Console, Panel (Includes Illus. 5 & 14) (White)
9	Console, Panel (Includes Illus. 5 & 14) (Biscuit)
10	End Cap (R.H.) (Biscuit)
10	End Cap (R.H.) (White)
11	Switch, Rotary
12	Knob, Timer (Biscuit)
12	Knob, Timer (White)
13	WPW10168257 Whirlpool Cycle Switch
14	Spacer, Console (Biscuit)
14	Spacer, Console (White)
15	WP3400818 Whirlpool Screw
16	WPL 3956183
16	WPL 3956182
17	Fuse (In Harness)
18	Dial, Timer (White)
18	Dial, Timer (Biscuit)
19	WP8536939 Whirlpool Spring Clip
20	Harness, Wire (For Detail See Pages 13 & 14)
21	3400073 Whirlpool Screw
