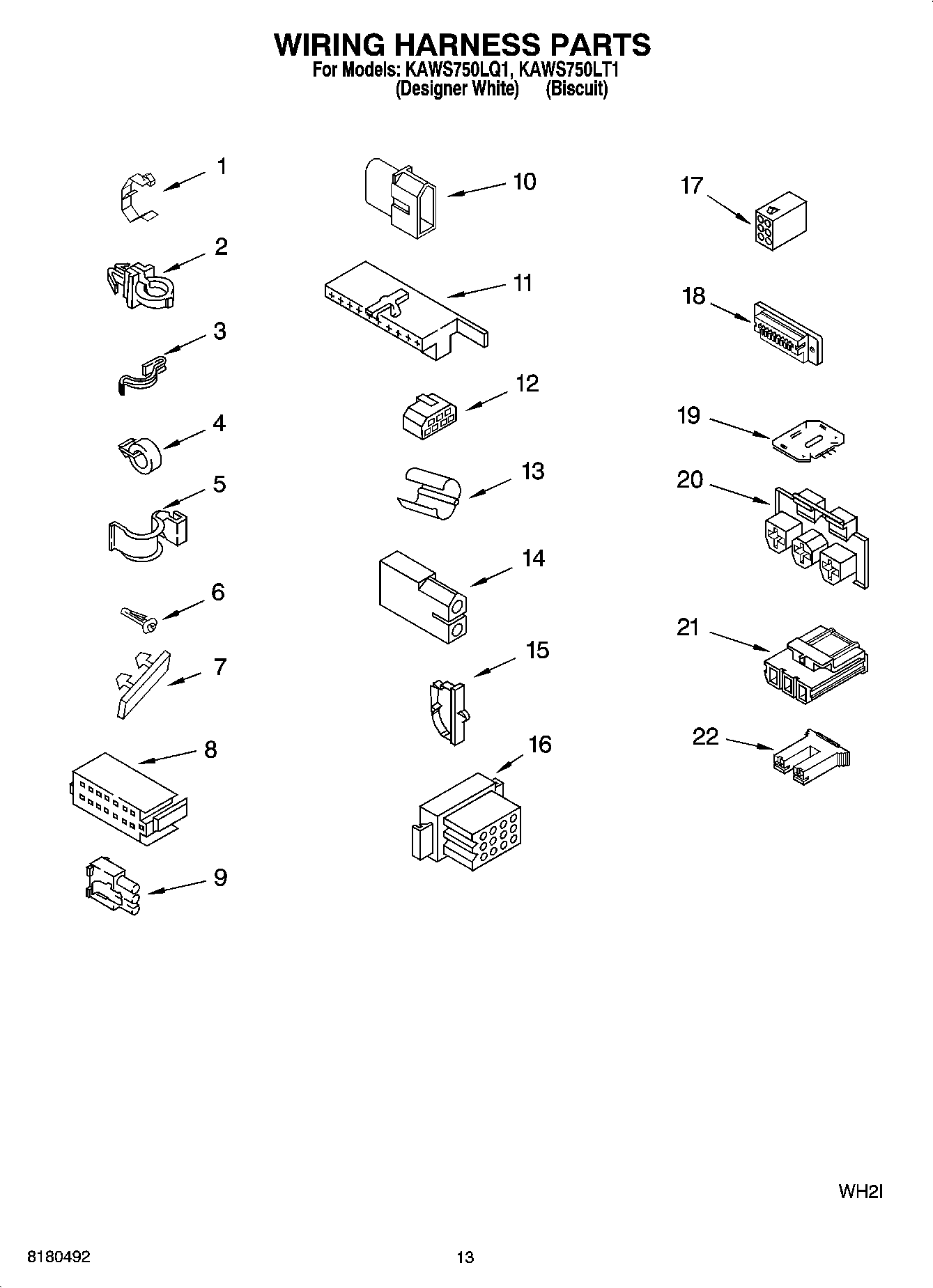

KAWS750LQ1 10 – WIRING HARNESS PARTS, MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL ARI153161A
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	350572 Whirlpool Oil Transmission 15 Oz
	WP384496 Whirlpool Hose Coupling
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	WPL ARI153157A
	Drain Protector (Not Included)
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI153160A
	WPL ARI153159A
	285320 Whirlpool Washer Siphon Break Kit
	WPL ARI153158A
1	Miscellaneous Parts Bag
1	Clip, Harness
2	WP16123 Whirlpool Washer
2	Clip, Harness
3	8528351 Whirlpool Clip
3	WP356138 Whirlpool Hose Clamp
4	WP3359452 Whirlpool Nut
4	8559320 Whirlpool Clip
5	WPW10001130 Whirlpool Leveling Leg
5	WP90016 Whirlpool Clip
6	WP3357331 Whirlpool Clamp
6	Clip, Harness
7	WP389379 Whirlpool Retainer
8	W10876590 Whirlpool Connector
8	Timer, Block Disconnect (White)
9	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
10	353424 Whirlpool Connector
11	WP62505 Whirlpool Connector
12	Block, Disconnect
13	Protector, Harness
14	Receptacle, Latching (2-Way) (Uses Terminal 94614)
15	Clip, Harness
16	Block, Disconnect (12-Way) (Timer) (Use Term. 94613)
17	Receptacle, (6-Way) (Use Term. 94613)
18	Connector, Etc
19	E.T.C. Control
20	WP2172937 Whirlpool Connector
21	WP3360056 Whirlpool Connector
22	WPL 3354926
22	3354925 Whirlpool Connector
