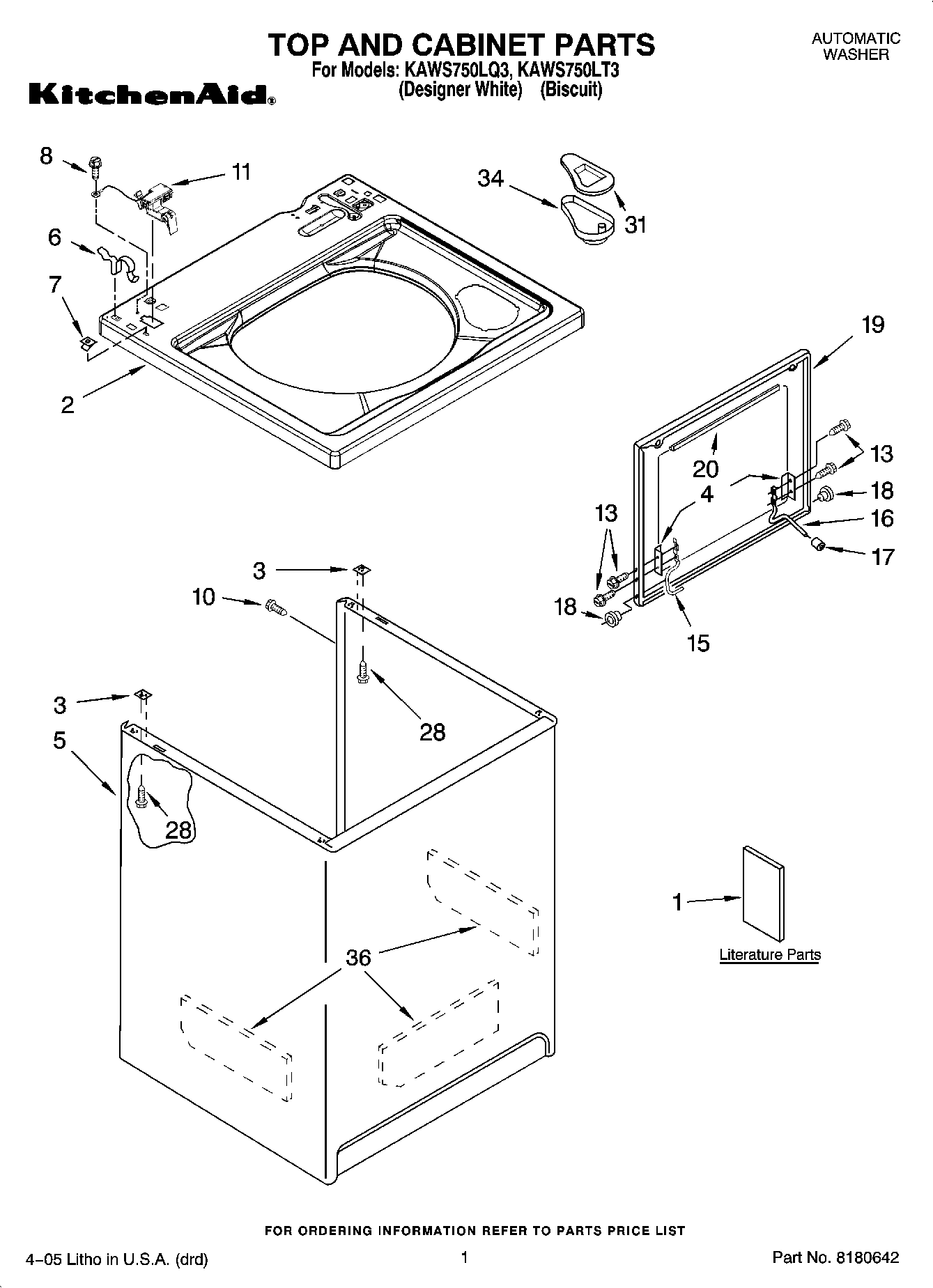

KAWS750LQ3 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Installation Instructions
1Use & Care Guide
1Feature Sheet
1Wiring Diagram
2Top (Biscuit)
2Top (White)
3WP62750 Whirlpool Spacer
4WP21097 Whirlpool Pad
563424 Whirlpool Cabinet Assembly
5Cabinet (Biscuit)
6WP62780 Whirlpool Cabinet Clip
7WP357213 Whirlpool Hinge Stopper
8WP3351614 Whirlpool Screw
10WP308685 Whirlpool Microwave Screw
11WP8318084 Whirlpool Washer Lid Switch Assembly
13SCREW
15Hinge, Lid (L.H.)
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18Bearing, Lid Hinge (2)
19Lid (White)
19Lid (Biscuit)
20Seal, Lid
28WP3390631 Whirlpool Screw
31Cover, Dispenser
34Dispenser, Bleach
36Cabinet – Sound Damper
