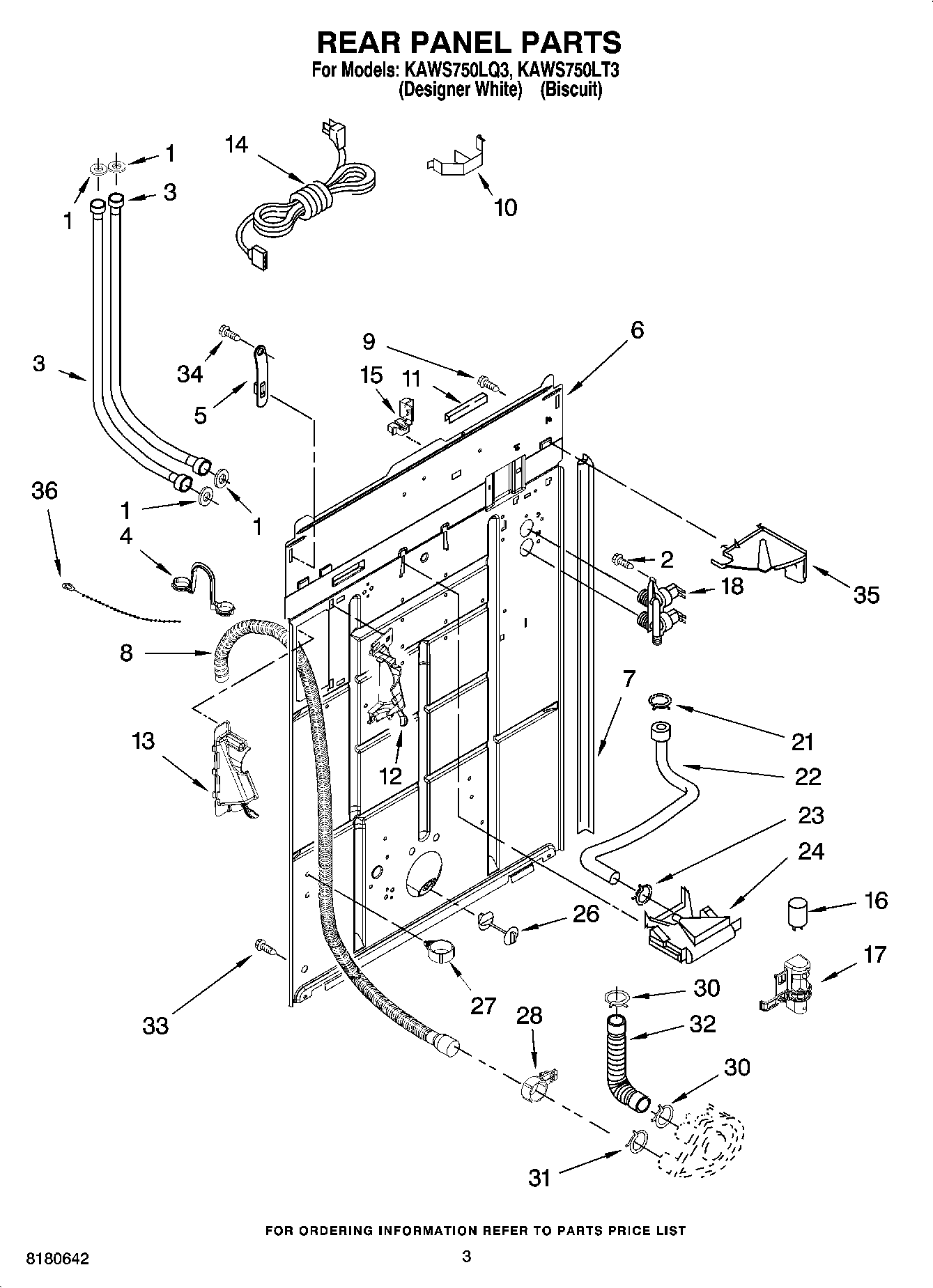

KAWS750LQ3 02 – REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3FILL HOSE 5' W/WASHER
3WP89503 Whirlpool Washer Fill Hose
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP3351614 Whirlpool Screw
10Clip, Harness & Pressure Hose
11Edge Protector
12(Left Half)
13WPW10096921 Whirlpool Hose
13(Right Half)
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
16WP8572720 Whirlpool Capacitor
17Clip, Capacitor
18285805 Whirlpool Washer Water Inlet Valve
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
288541668 Whirlpool Washer Clamp
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33WP3390631 Whirlpool Screw
34WP90767 Whirlpool Screw
35WPL 8539874
36WPW10339879 Whirlpool Wire Tie
