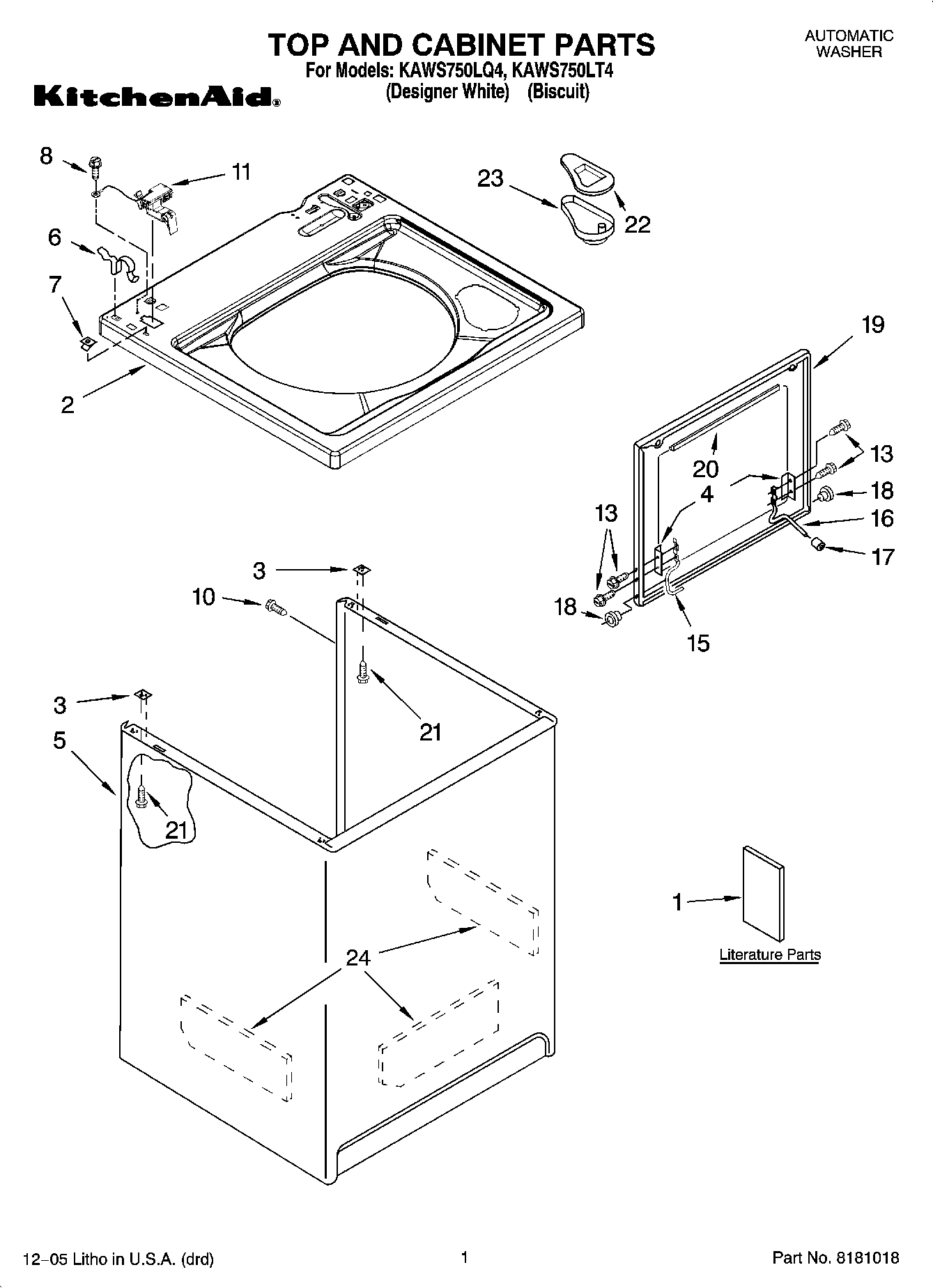

KAWS750LQ4 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Installation Instructions
1	Feature Sheet
1	Wiring Diagram
1	Energy Guide
2	Top (Biscuit)
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP21097 Whirlpool Pad
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Biscuit)
6	WP62780 Whirlpool Cabinet Clip
7	WP357213 Whirlpool Hinge Stopper
8	WP3351614 Whirlpool Screw
10	WP308685 Whirlpool Microwave Screw
11	WP8318084 Whirlpool Washer Lid Switch Assembly
13	SCREW
15	Hinge, Lid (L.H.)
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	Bearing, Lid Hinge (2)
19	Lid (White)
19	Lid (Biscuit)
20	Seal, Lid
21	WP3390631 Whirlpool Screw
22	Cover, Dispenser
23	Dispenser, Bleach
24	Cabinet – Sound Damper
