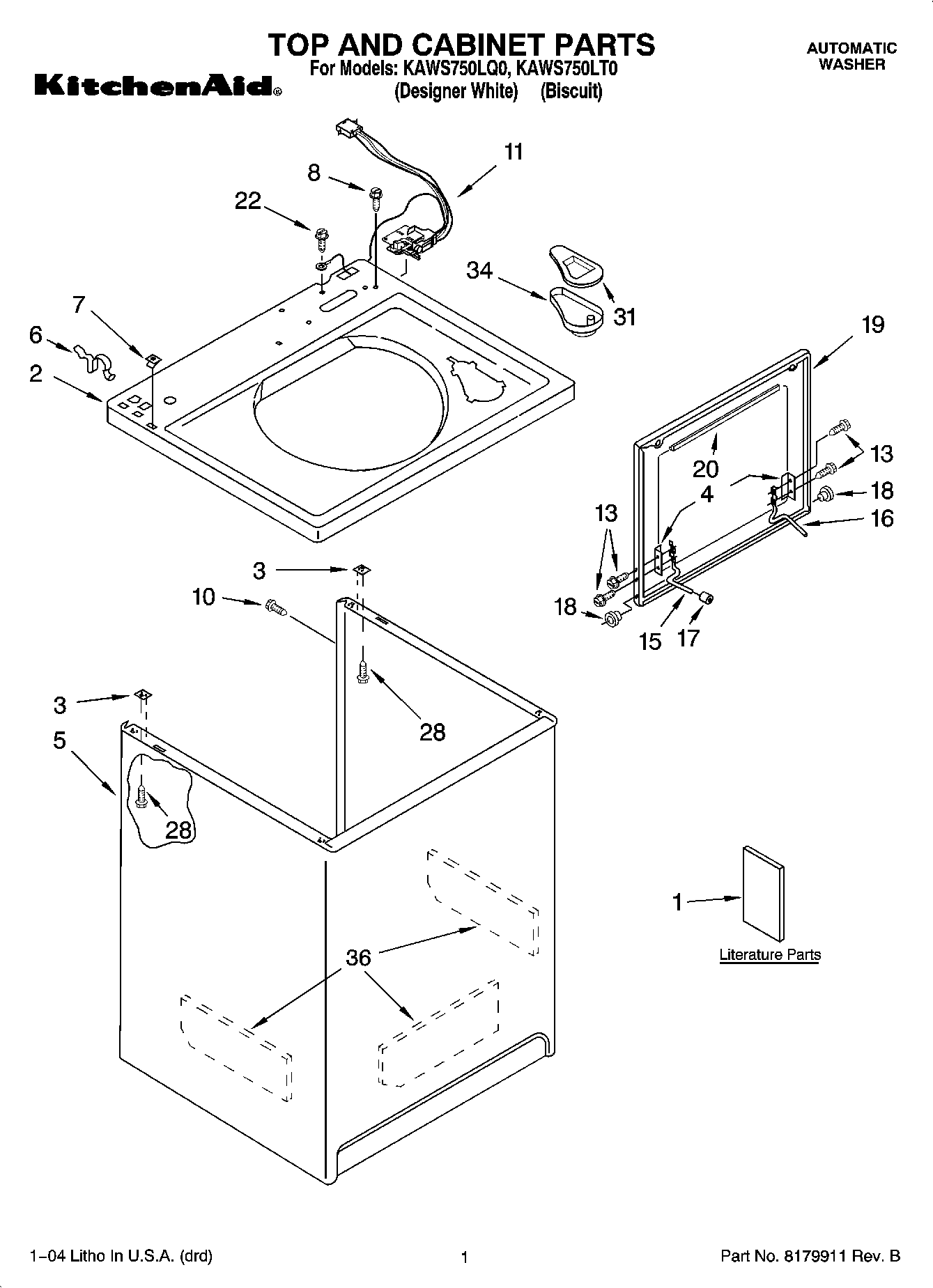

KAWS750LT0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Literature Parts (Feature Sheet)
1	Literature Parts (Installation Instructions)
1	Energy Guide
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
2	Top (Biscuit)
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP21097 Whirlpool Pad
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Biscuit)
6	WP62780 Whirlpool Cabinet Clip
7	WP357213 Whirlpool Hinge Stopper
8	Screw, Lid Switch (2)
10	WP308685 Whirlpool Microwave Screw
11	WP8054980 Whirlpool Lid Switch Assembly
13	SCREW
15	Hinge, Lid (L.H.)
16	Hinge, Lid (R.H.)
17	Bumper, Lid Hinge
18	Bearing, Lid Hinge (2)
19	Lid (White)
19	Lid (Biscuit)
20	Seal, Lid
22	WP3351614 Whirlpool Screw
28	WP3390631 Whirlpool Screw
31	Cover, Dispenser
34	Dispenser, Bleach
36	Cabinet – Sound Damper
