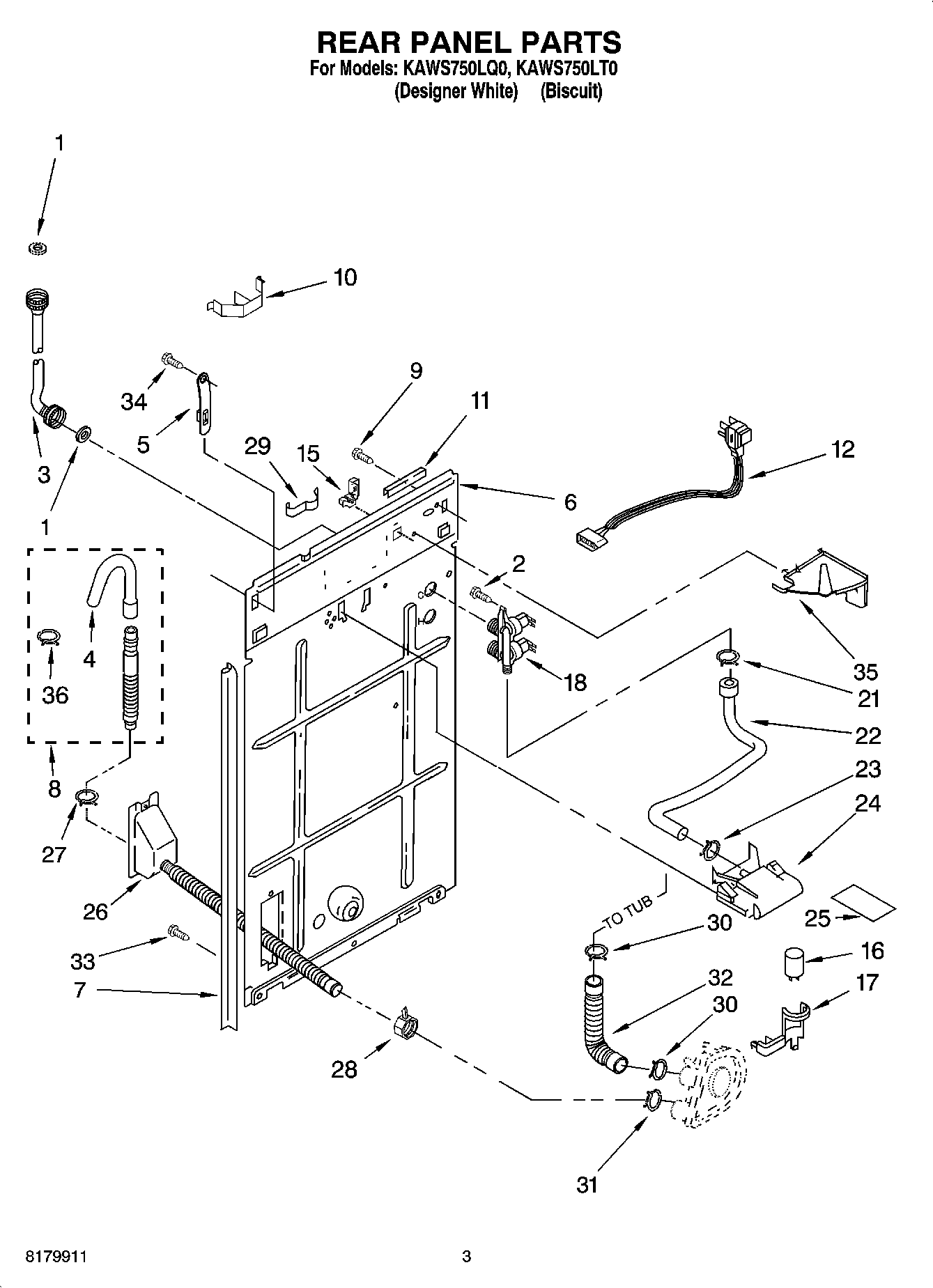

KAWS750LT0 02 – REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	WP3351614 Whirlpool Screw
10	Clip, Harness & Pressure Hose
11	Edge Protector
12	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
16	WP8572720 Whirlpool Capacitor
17	Clip, Capacitor
18	285805 Whirlpool Washer Water Inlet Valve
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Shield, Capacitor
26	WPL 8317941
27	WP356138 Whirlpool Hose Clamp
28	Clamp, Hose
29	8528351 Whirlpool Clip
30	WP616099 Whirlpool Clamp
31	WP371502 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
33	WP3390631 Whirlpool Screw
34	WP90767 Whirlpool Screw
35	WPL 8539874
36	WP3357331 Whirlpool Clamp
