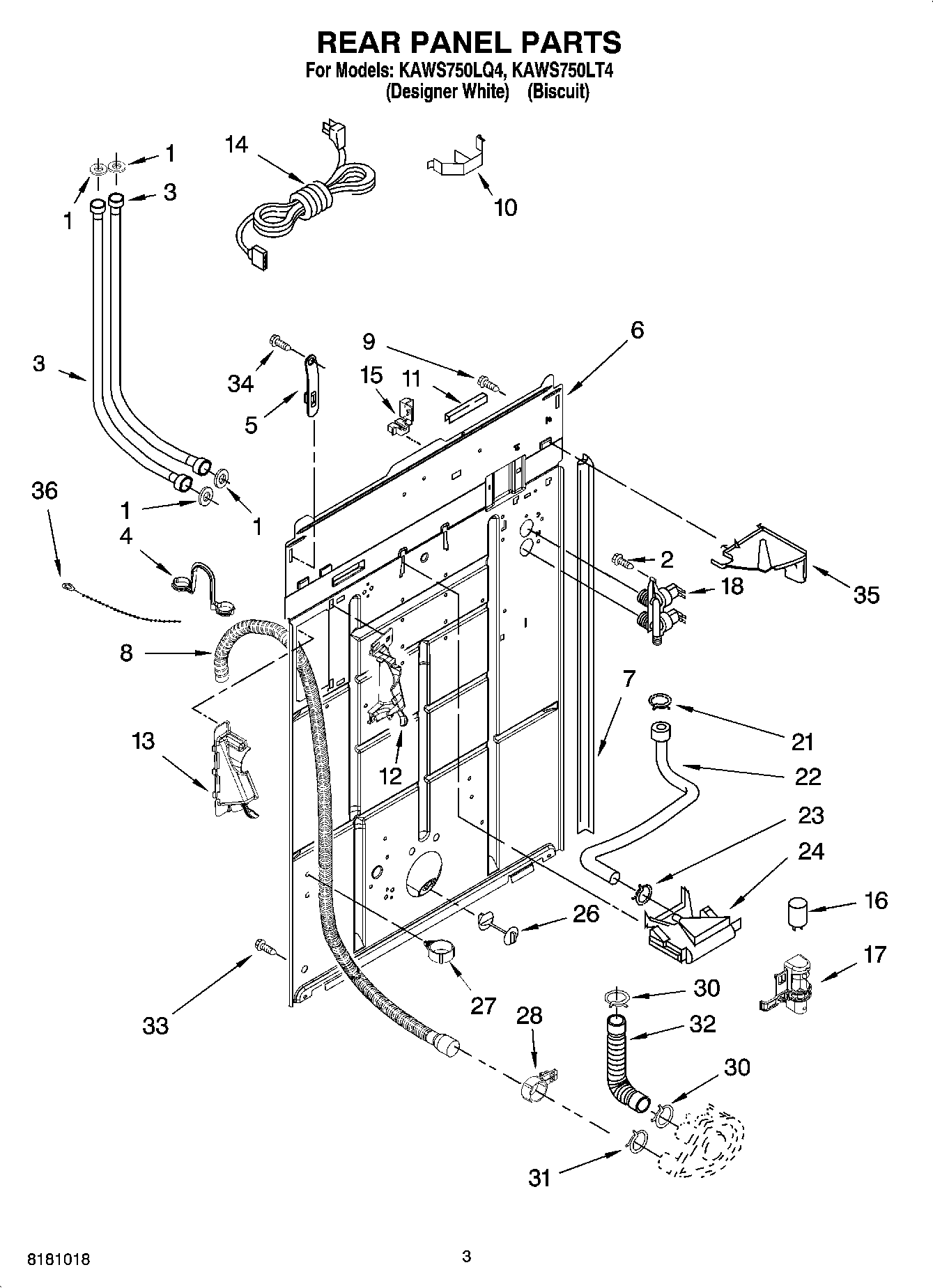

KAWS750LT4 02 – REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP3351614 Whirlpool Screw
10	Clip, Harness & Pressure Hose
11	Edge Protector
12	(Left Half)
13	WPW10096921 Whirlpool Hose
13	(Right Half)
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
16	WP8572720 Whirlpool Capacitor
17	Clip, Capacitor
18	285805 Whirlpool Washer Water Inlet Valve
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	WP3390631 Whirlpool Screw
34	WP90767 Whirlpool Screw
35	WPL 8539874
36	Miscellaneous Parts Bag
36	WPW10339879 Whirlpool Wire Tie
36	FOLLOWING PARTS NOT ILLUSTRATED
