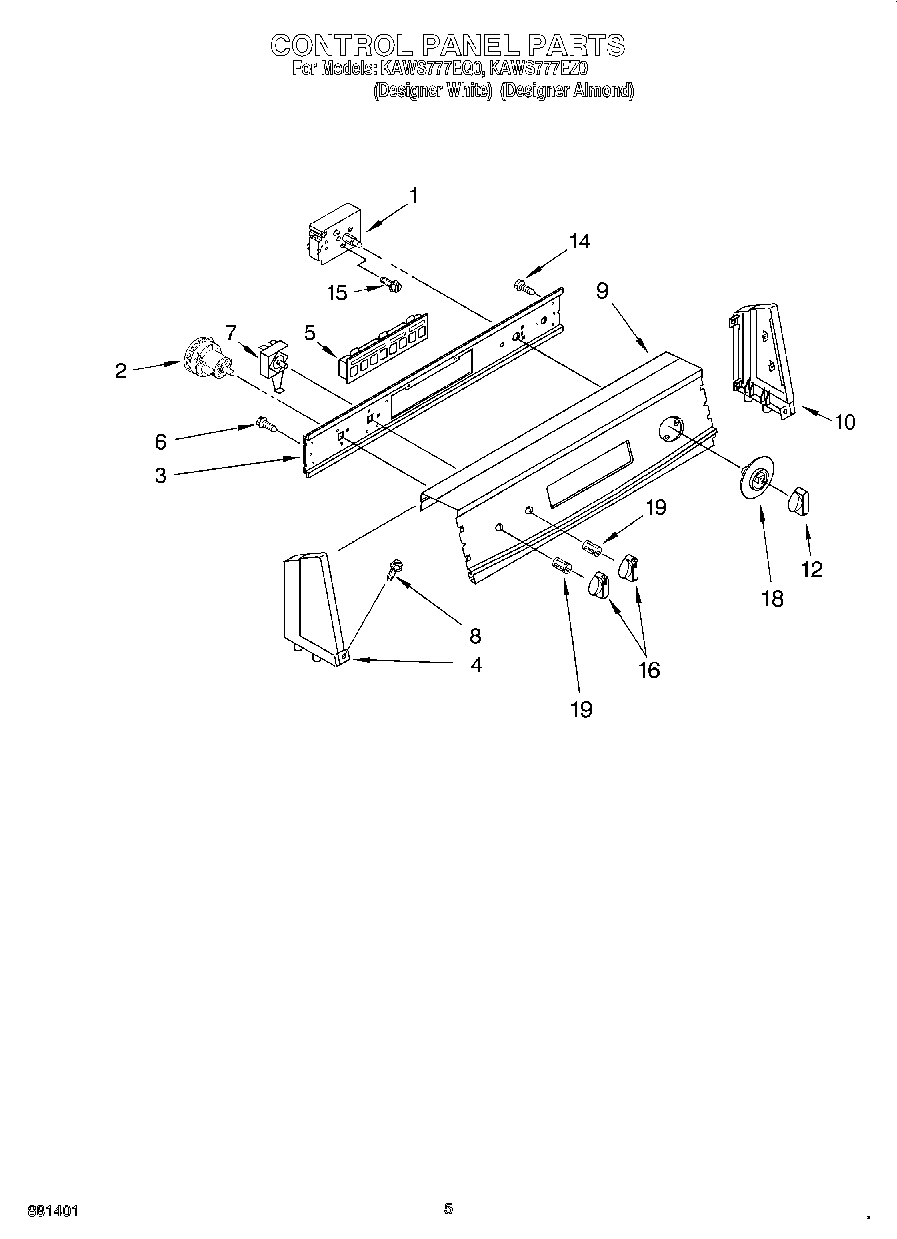

KAWS777EQ0 03 – CONTROL PANEL

Products

Position	Product
1	Timer, Control 60Hz. (Motor Not Serviced)
2	W10339326 Whirlpool Washer Water Level Switch
3	Bracket, Control
4	Cap, End (L.H.)
4	End Cap (L.H.)
5	Switch, Clean Touch (White Model)
5	Switch, Clean Touch (Almond Model)
6	WP90767 Whirlpool Screw
7	WP3398093 Whirlpool Buzzer Adjuster
8	WP388326 Whirlpool Screw
9	Console, Panel (White Model)
9	Console, Panel (Almond Model)
10	Cap, End (R.H.)
10	Cap, End (R.H.)
12	Knob, Timer (White Model)
12	Knob, Timer (Almond Model)
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
16	Knob, Control (2) (White)
16	Knob, Control (Almond Model)
18	Dial, Timer (Almond Model)
18	Dial, Timer (White Model)
19	WP688805 Whirlpool Spring Clip
