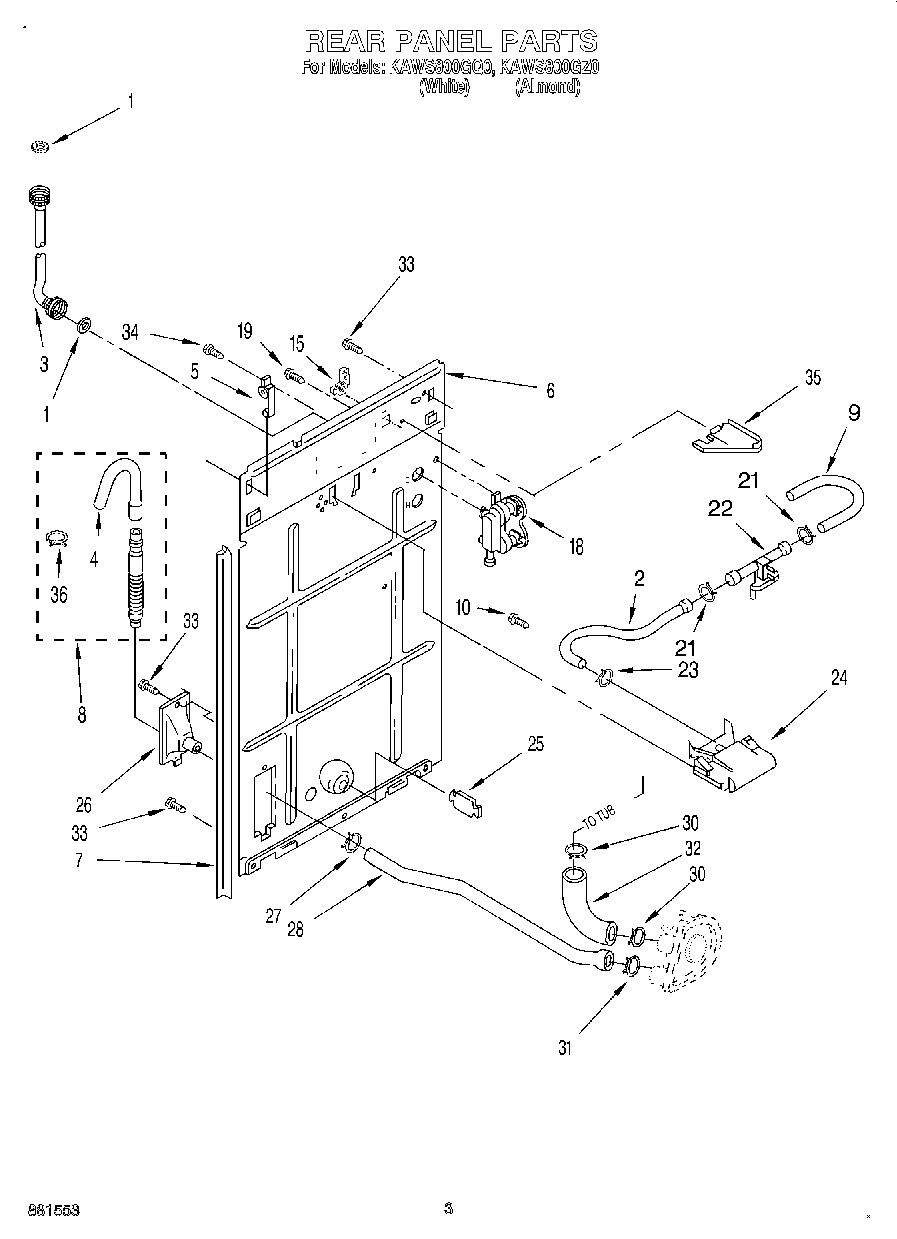

KAWS800GQ0 02 – REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP3349365 Whirlpool Hose
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
8	285702 Whirlpool Extensions
9	WP3357319 Whirlpool Hose
10	WP9740848 Whirlpool Dishwasher Screw
15	Strain Relief, Power Cord
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	Sensor-ETC-Inline
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Drain
30	WP616099 Whirlpool Clamp
31	WP371502 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
33	WP3390631 Whirlpool Screw
34	WP308685 Whirlpool Microwave Screw
35	WPL 3348424
36	WP3357331 Whirlpool Clamp
