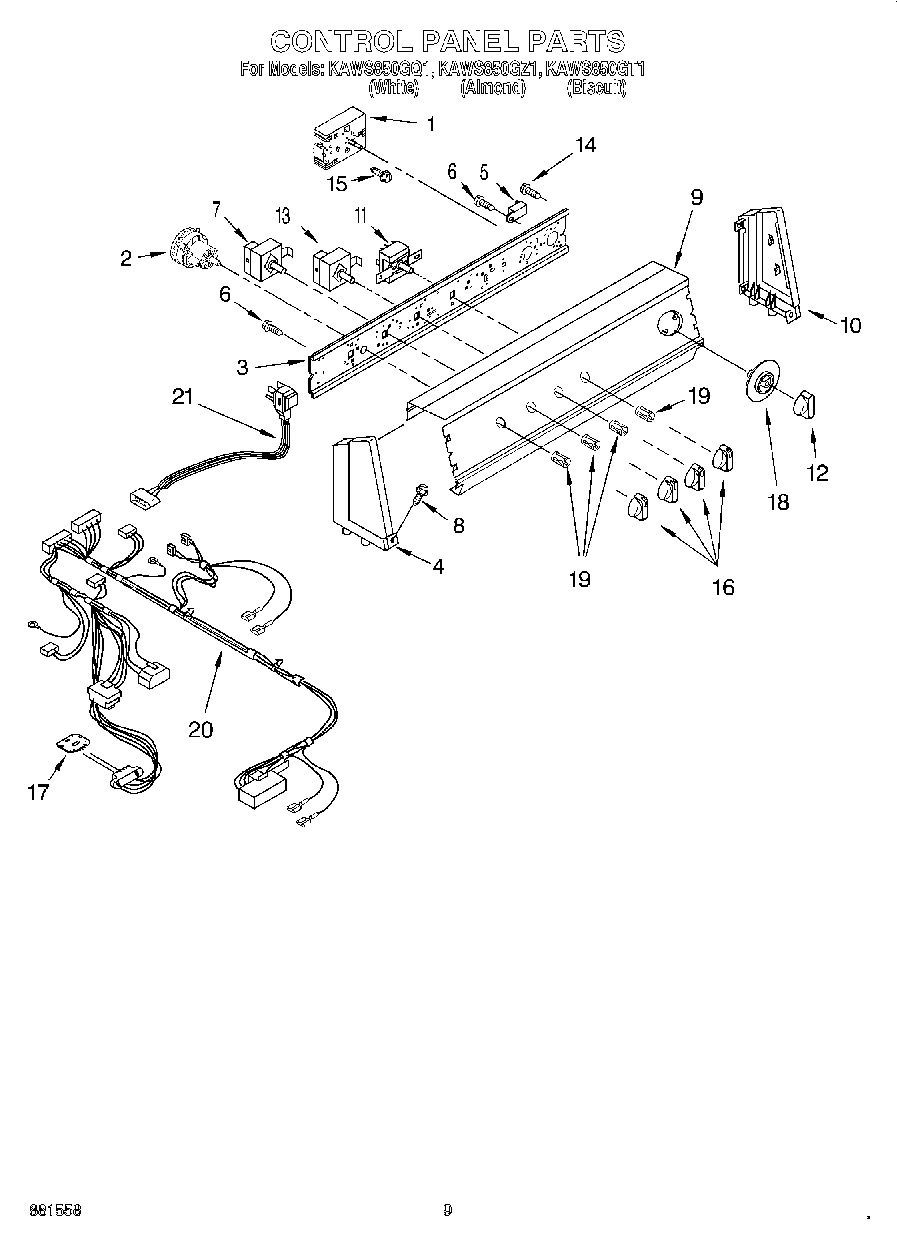

KAWS850GQ1 06 – CONTROL PANEL

Products

Position	Product
1	Timer, Control 60Hz. (Motor Not Serviced)
2	W10339326 Whirlpool Washer Water Level Switch
3	WP3948608 Whirlpool Bracket
4	Cap, End (L.H.) (Biscuit)
4	Cap, End (L.H.)
4	End Cap (L.H.)
5	WP694419 Whirlpool Buzzer Adjuster
6	WP90767 Whirlpool Screw
7	Switch, Water Temperature
8	WP388326 Whirlpool Screw
9	Console, Panel (Almond)
9	Console, Panel (White)
9	Console, Panel (Biscuit)
10	Cap, End (R.H.)
10	Cap, End (R.H.)
10	Cap, End (R.H.) (Biscuit)
11	Switch, Rotary
12	Knob, Timer (Almond Model)
12	Knob, Timer (White Model)
12	Knob, Timer (Biscuit)
13	W10168264 Whirlpool Cycle Switch
14	WP3351614 Whirlpool Screw
15	WP356418 Whirlpool Screw
16	Knob, Control (2) (Biscuit)
16	Knob, Control (2) (White)
16	Knob, Control (Almond Model)
17	E.T.C. Control
18	Dial, Timer (White Model)
18	Dial, Timer (Biscuit)
18	Dial, Timer (Almond Model)
19	WP688805 Whirlpool Spring Clip
20	Harness, Wire (For Detail See Parts Page)
21	W10820044 Whirlpool Power Cord
