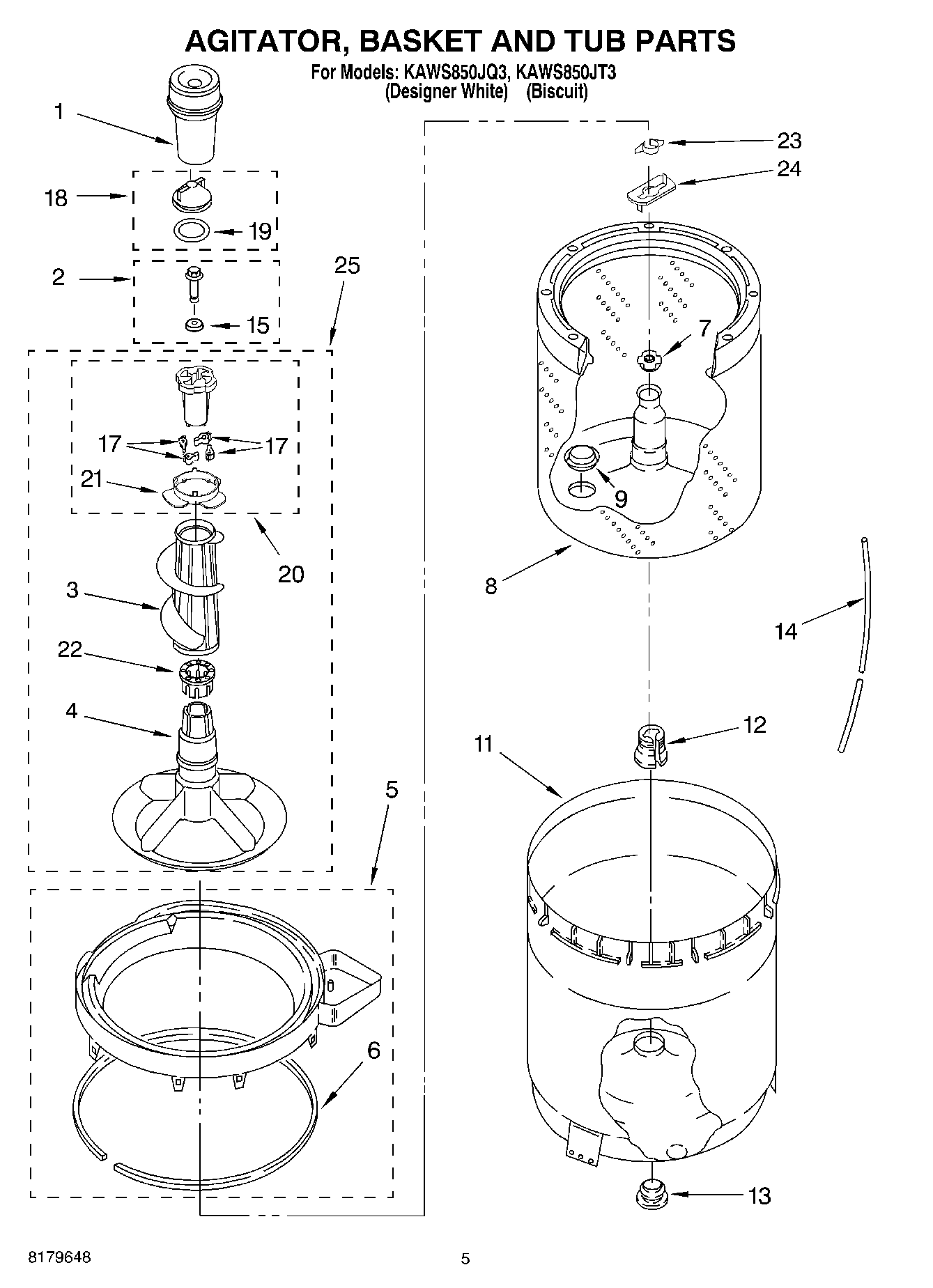

KAWS850JQ3 03 – AGITATOR, BASKET AND TUB

KAWS850JQ3 03 – AGITATOR, BASKET AND TUB

Written by

in

KAWS850JQ3 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WP358237 Whirlpool Agitator Bolt
3Clothes Mover
4Agitator
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7WP21366 Whirlpool Spanner Nut
8W10389328 Whirlpool Basket
9285868 Whirlpool Washer Filter Plug Kit
1163849 Whirlpool Outer Tub Primary Assembly
12WP389140 Whirlpool Drive Block or Bell
13W10814296 Whirlpool Washer Center Post Seal Gasket
14WP353244 Whirlpool Hose
15WP3949550 Whirlpool Gasket Assembly
1780040 Whirlpool Washer Agitator Dog Kit
18WPW10074580 Whirlpool Agitator Inner Cap and Seal
19WPW10072840 Whirlpool Seal Assembly
20285811 Whirlpool Washer Agitator Repair Kit
21WP3363661 Whirlpool Bearing Cam
22285587 Whirlpool Thrust Washer
23WP3354845 Whirlpool Clip
24WP8543666 Whirlpool Washer
25Agitator (Complete Asy.)
