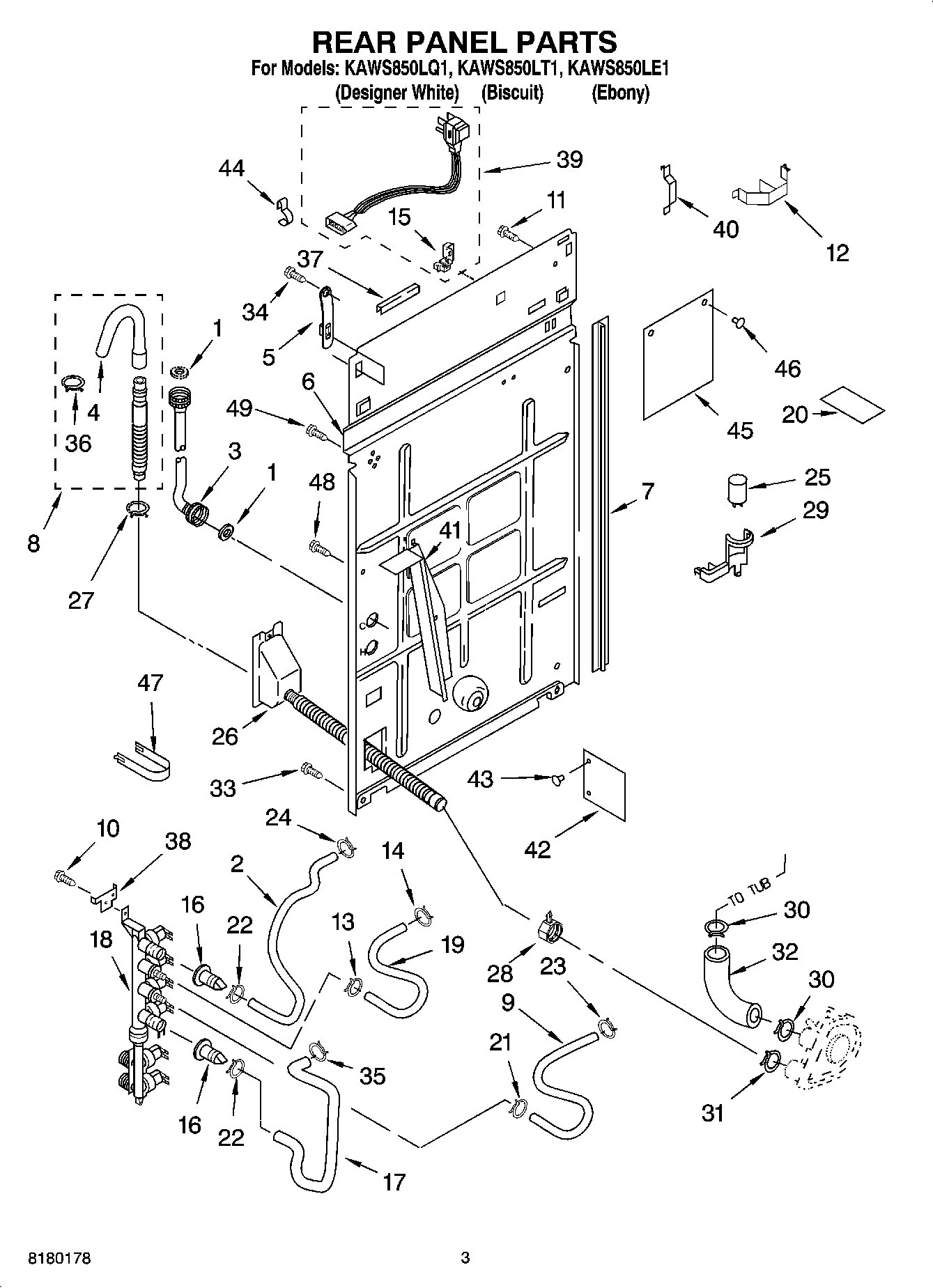

KAWS850LE1 02 – REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Hose, Bleach
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
9	Hose, Detergent
10	WP9740848 Whirlpool Dishwasher Screw
11	WP3351614 Whirlpool Screw
12	Clip, Harness & Pressure Hose
15	Strain Relief, Power Cord
16	WPL 8055306
17	Hose, Fresh Fill
18	Valve, Inlet
19	Hose, Fabric Softener
20	Shield, Capacitor
21	WP596669 Whirlpool Hose Clamp
25	WP8572720 Whirlpool Capacitor
26	WPW10358151 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Clamp, Hose
29	Clip, Capacitor
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	WPL 8055063
33	WP3390631 Whirlpool Screw
34	WP90767 Whirlpool Screw
36	WP3357331 Whirlpool Clamp
37	Edge Protector
38	Bracket, Valve
39	Cord, Power (Includes Illus. 15)
40	Clip, Harness
41	Shield, Upper Valve (Includes (Items 42 & 43)
42	Shield, Splash Valve
43	WP356907 Whirlpool Rivet
44	8528351 Whirlpool Clip
45	Drape, Rear Panel
46	Clip, Pine Tree
47	Restraint, Hose
48	WP693995 Whirlpool Screw
