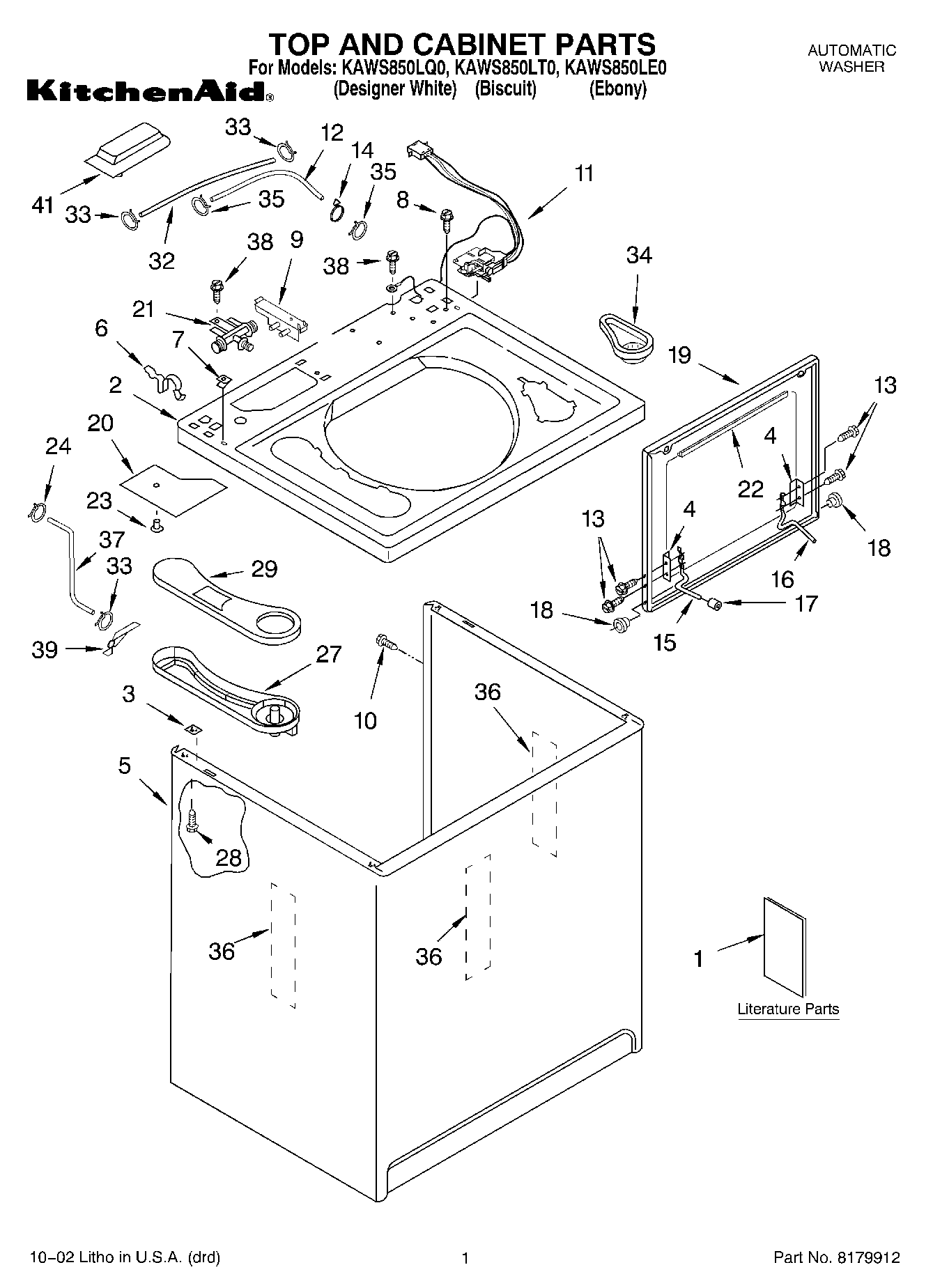

KAWS850LQ0 01 – TOP AND CABINET, LITERATURE

Products

Position	Product
1	Literature Parts (Energy Guide)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
2	Top (Biscuit)
2	Top (White)
2	Top (Black)
3	WP62750 Whirlpool Spacer
4	WP21097 Whirlpool Pad
5	Cabinet (Biscuit)
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Black)
6	WP62780 Whirlpool Cabinet Clip
7	WP357213 Whirlpool Hinge Stopper
8	Screw, Lid Switch (2)
9	Connector, 2-Port
10	WP308685 Whirlpool Microwave Screw
11	WP8054980 Whirlpool Lid Switch Assembly
12	Hose, Detergent
13	SCREW
14	8559320 Whirlpool Clip
15	Hinge, Lid (L.H.)
16	Hinge, Lid (R.H.)
17	Bumper, Lid Hinge
18	Bearing, Lid Hinge (2)
19	Lid (Biscuit)
19	Lid (White)
19	Lid (Black)
20	Shield, Spill
21	Connector, Venturi
22	Seal, Lid
22	Seal, Lid (Black)
23	WPL 8280537
27	WP8055237 Whirlpool Dispenser
28	WP3390631 Whirlpool Screw
29	Cover, Dispenser
32	Hose, Fabric Softener
34	Dispenser, Detergent
35	WP596669 Whirlpool Hose Clamp
36	Cabinet - Sound Damper
37	WP8283537 Whirlpool Hose Assembly
38	WP3351614 Whirlpool Screw
39	WPL 8271943
41	Cover, Hose Disconnect
