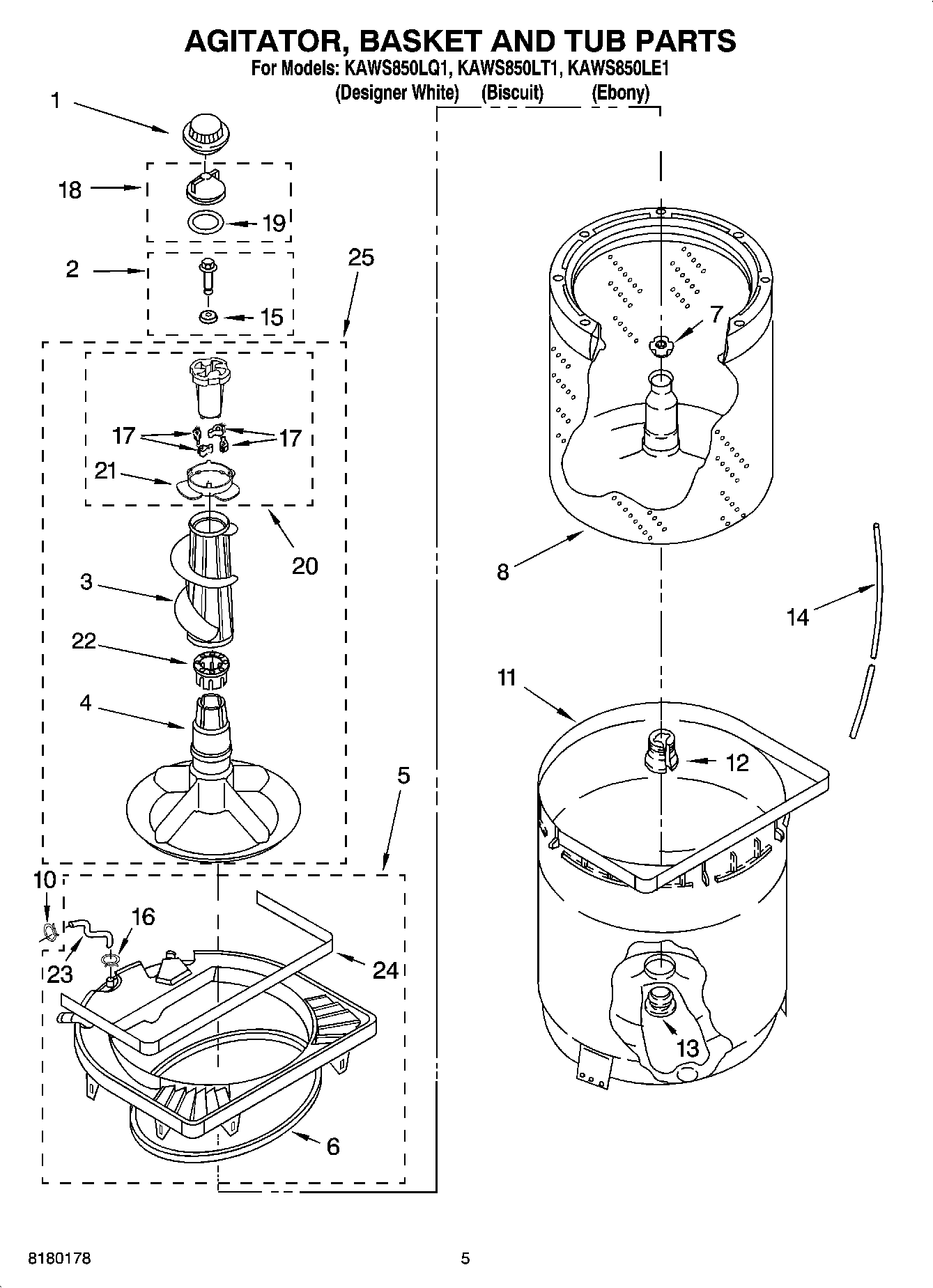

KAWS850LQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	WP358237 Whirlpool Agitator Bolt
3	Clothes Mover
4	Agitator
5	Tub Ring
6	Seal, Tub Ring
7	WP21366 Whirlpool Spanner Nut
8	W10389328 Whirlpool Basket
11	Tub
12	WP389140 Whirlpool Drive Block or Bell
13	W10814296 Whirlpool Washer Center Post Seal Gasket
14	WP353244 Whirlpool Hose
15	WP3949550 Whirlpool Gasket Assembly
16	WP596669 Whirlpool Hose Clamp
17	80040 Whirlpool Washer Agitator Dog Kit
18	WPW10074580 Whirlpool Agitator Inner Cap and Seal
19	WPW10072840 Whirlpool Seal Assembly
20	285811 Whirlpool Washer Agitator Repair Kit
21	WP3363661 Whirlpool Bearing Cam
22	285587 Whirlpool Thrust Washer
23	Hose, Bleach Outlet
24	Shield, Splash
25	Agitator (Complete Asy.)
