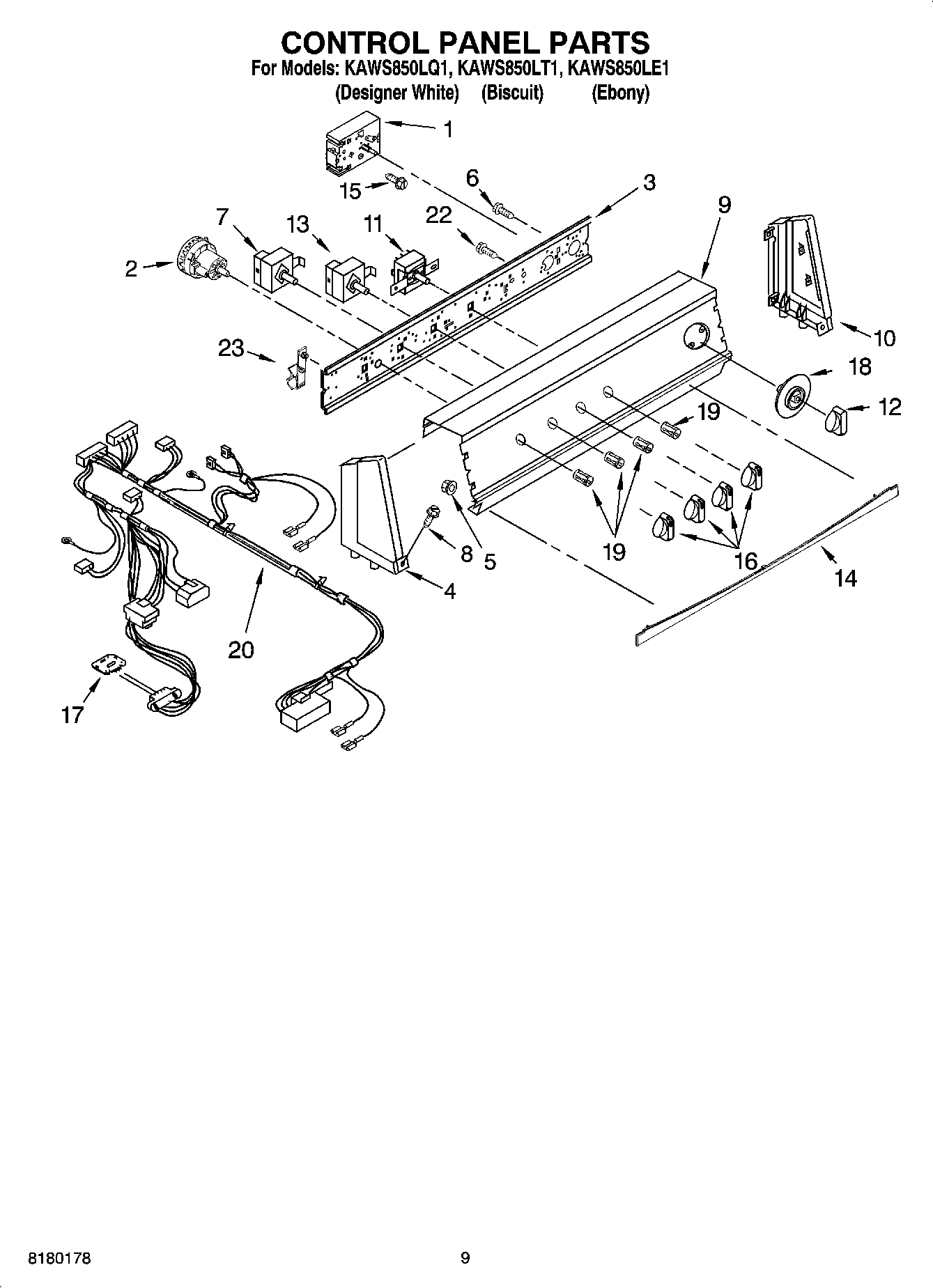

KAWS850LQ1 06 – CONTROL PANEL PARTS

Products

Position	Product
1	Timer, Control (60 Hz) (Motor Not Serviced)
2	W10339326 Whirlpool Washer Water Level Switch
3	WP3948608 Whirlpool Bracket
4	End Cap (L.H.) (Black)
4	Cap, End (L.H.) (Biscuit)
4	End Cap (L.H.) (White)
5	WPL 8533828
6	WP90767 Whirlpool Screw
7	Switch, Water Temperature
8	WP388326 Whirlpool Screw
9	Panel, Console (Includes Illus. 5 & 14) (White)
9	Panel, Console (Includes Illus. 5 & 14) (Biscuit)
9	Panel, Console (Includes Illus. 5 & 14) (Black)
10	End Cap (R.H.) (White)
10	End Cap (R.H.) (Black)
10	End Cap (R.H.) (Biscuit)
11	Switch, Rotary
12	Knob, Timer (White)
12	Knob, Timer (Biscuit)
12	Knob, Timer (Black)
13	WPW10168257 Whirlpool Cycle Switch
14	Spacer, Console (Black)
14	Spacer, Console (Biscuit)
14	Spacer, Console (White)
15	WP3400818 Whirlpool Screw
16	WPL 3956182
16	WPL 3956183
16	WPL 3956184
17	Control, ATC
18	Dial, Timer (Black)
18	Dial, Timer (Biscuit)
18	Dial, Timer (White)
19	WP8536939 Whirlpool Spring Clip
20	Harness, Wire (Includes Item 11) (For Detail See Pages 13 & 14)
22	3400073 Whirlpool Screw
23	Retainer, Harness
