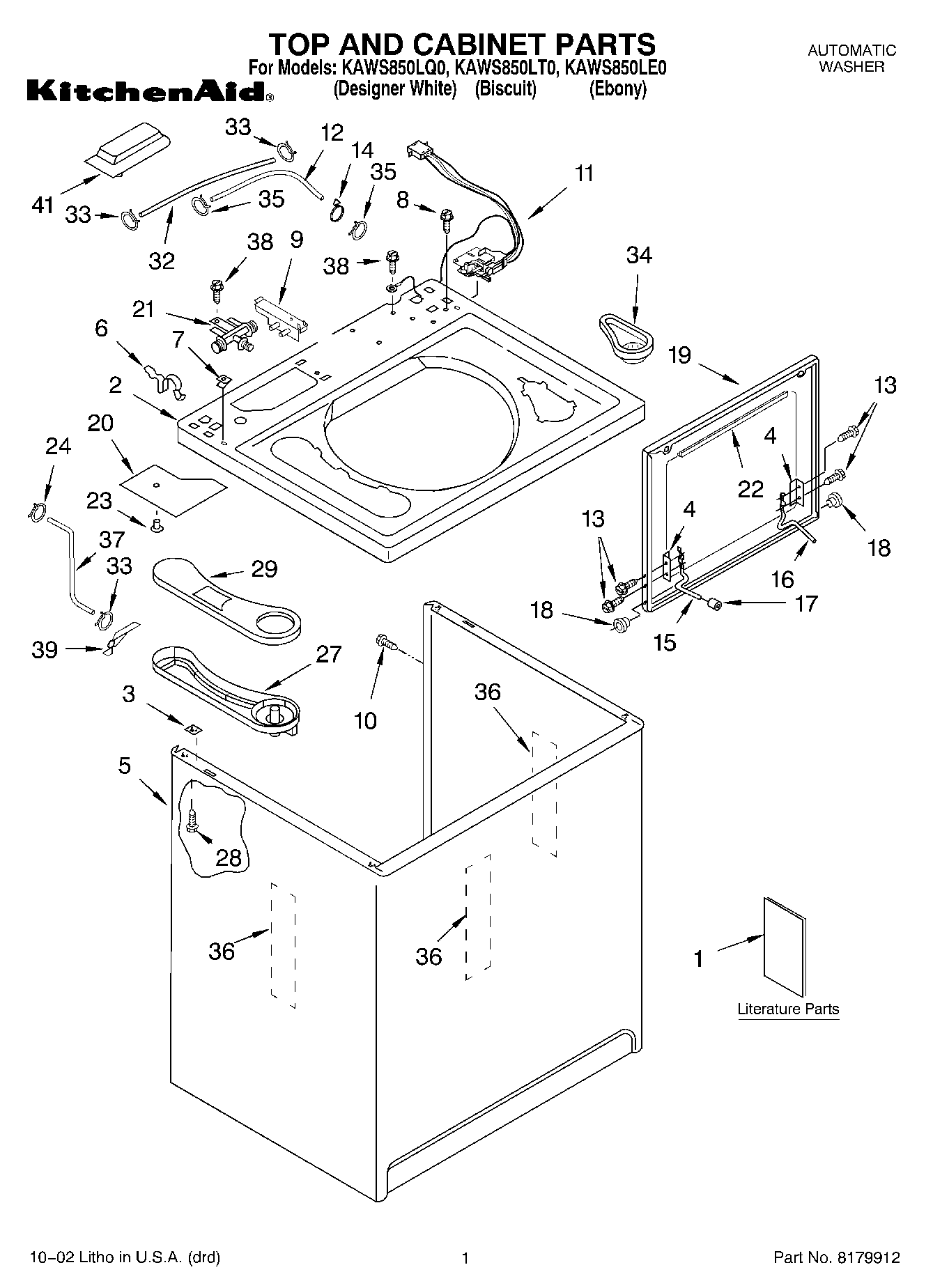

KAWS850LT0 01 – TOP AND CABINET, LITERATURE

Products

PositionProduct
1Literature Parts (Energy Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
2Top (Biscuit)
2Top (White)
2Top (Black)
3WP62750 Whirlpool Spacer
4WP21097 Whirlpool Pad
5Cabinet (Biscuit)
563424 Whirlpool Cabinet Assembly
5Cabinet (Black)
6WP62780 Whirlpool Cabinet Clip
7WP357213 Whirlpool Hinge Stopper
8Screw, Lid Switch (2)
9Connector, 2-Port
10WP308685 Whirlpool Microwave Screw
11WP8054980 Whirlpool Lid Switch Assembly
12Hose, Detergent
13SCREW
148559320 Whirlpool Clip
15Hinge, Lid (L.H.)
16Hinge, Lid (R.H.)
17Bumper, Lid Hinge
18Bearing, Lid Hinge (2)
19Lid (Biscuit)
19Lid (White)
19Lid (Black)
20Shield, Spill
21Connector, Venturi
22Seal, Lid
22Seal, Lid (Black)
23WPL 8280537
27WP8055237 Whirlpool Dispenser
28WP3390631 Whirlpool Screw
29Cover, Dispenser
32Hose, Fabric Softener
34Dispenser, Detergent
35WP596669 Whirlpool Hose Clamp
36Cabinet – Sound Damper
37WP8283537 Whirlpool Hose Assembly
38WP3351614 Whirlpool Screw
39WPL 8271943
41Cover, Hose Disconnect
