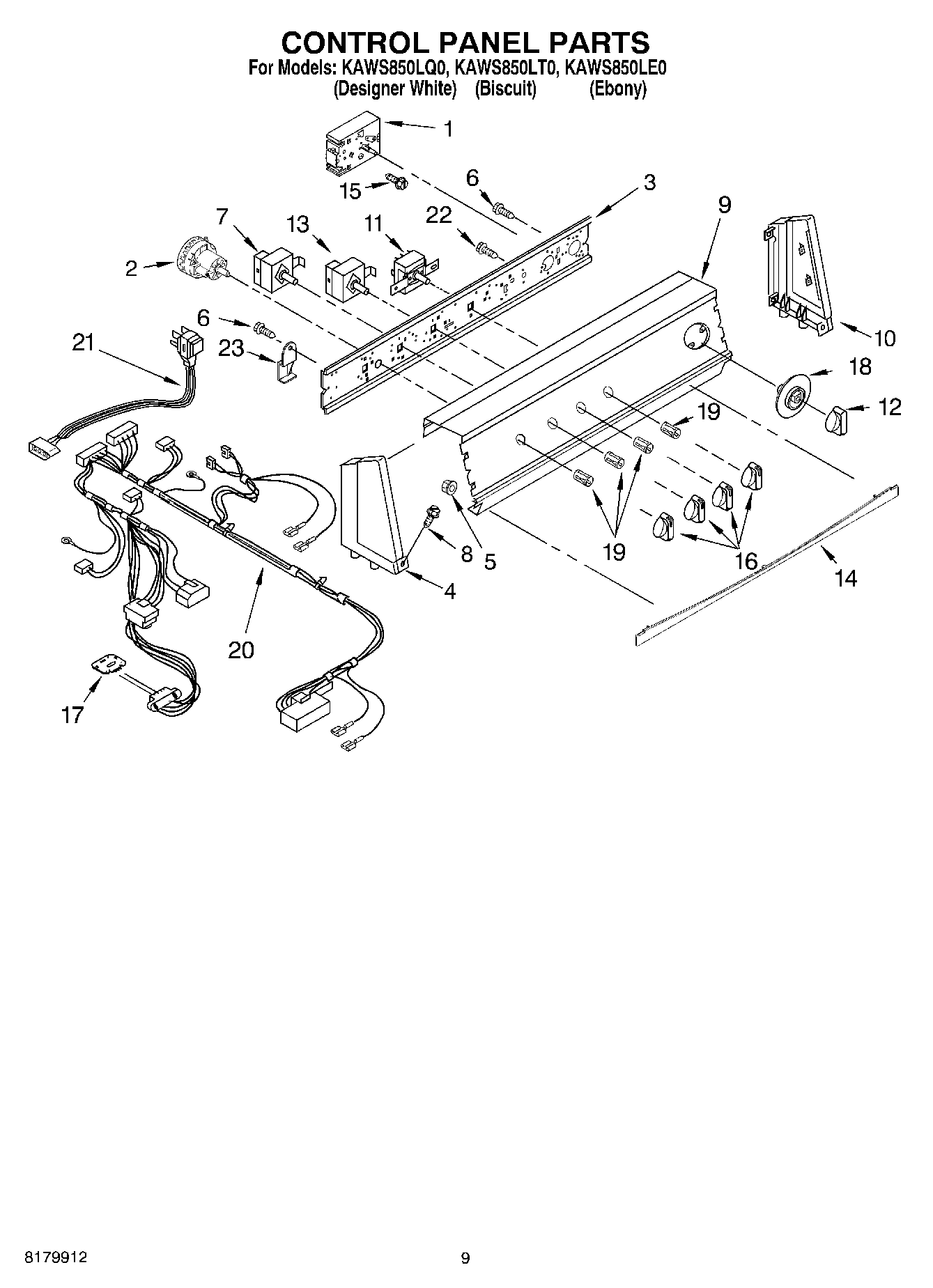

KAWS850LT0 06 – CONTROL PANEL

Products

Position	Product
1	Timer, Control (60 Hz) (Motor Not Serviced)
2	W10339326 Whirlpool Washer Water Level Switch
3	WP3948608 Whirlpool Bracket
4	End Cap (L.H.) (Black)
4	Cap, End (L.H.) (Biscuit)
4	End Cap (L.H.) (White)
5	WPL 8533828
6	WP90767 Whirlpool Screw
7	Switch, Water Temperature
8	WP388326 Whirlpool Screw
9	Panel, Console (Includes Illus. 5 & 14) (Biscuit)
9	Panel, Console (Includes Illus. 5 & 14) (White)
9	Panel, Console (Includes Illus. 5 & 14) (Black)
10	End Cap (R.H.) (Black)
10	End Cap (R.H.) (Biscuit)
10	End Cap (R.H.) (White)
11	Switch, Rotary
12	Knob, Timer (Black)
12	Knob, Timer (White)
12	Knob, Timer (Biscuit)
13	WPW10168257 Whirlpool Cycle Switch
14	Spacer, Console (Biscuit)
14	Spacer, Console (Black)
14	Spacer, Console (White)
15	WP3400818 Whirlpool Screw
16	WPL 8536926
16	WPL 8536925
16	Kn
17	Control-ATC
18	Dial, Timer (White)
18	Dial, Timer (Black)
18	Dial, Timer (Biscuit)
19	WP8536939 Whirlpool Spring Clip
20	Harness, Wire (Includes Item 11) (For Detail See Pages 13 & 14)
21	W10820044 Whirlpool Power Cord
22	3400073 Whirlpool Screw
23	Retainer, Harness
